Summary

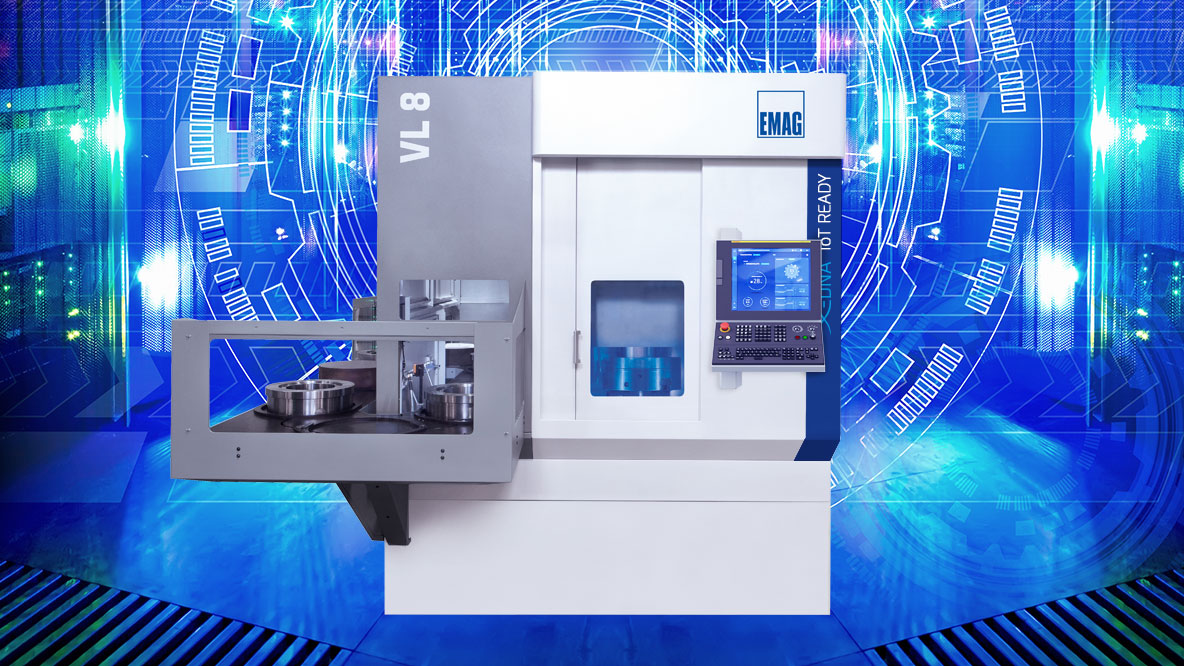

The Emag vl 8 is a CNC vertical pick-up lathe engineered for automated turning of large chucked components up to 400 mm in diameter. Its core function is precision turning, supported by integrated material handling via a pick-up spindle and modular tool compatibility, with optional Y-axis for off-center and complex feature machining. The machine features a polymer concrete base for vibration resistance and process stability.

Key Capabilities

• CNC-controlled vertical turning of chucked parts up to 400 mm diameter
• Automated workpiece loading and unloading with pick-up spindle from lateral conveyor
• Optional Y-axis integration for off-center and complex part machining
• Flexible tooling configuration via modular turret
• Rigid mineral cast base for reduced vibration during heavy-duty cutting
• IoT-ready design for data-driven process monitoring

Key Specifications

| Parameter | Value | Unit |

| Workpiece diameter, max. | 400 | mm |

| Workpiece length, max. | 300 | mm |

| Chuck diameter, max. | 500 | mm |

| Swing diameter | 520 | mm |

| X-axis travel | 1,110 | mm |

| Z-axis travel | 595 | mm |

| Main spindle power (40%/100% duty) | 47.5 / 34.5 | kW |

| Main spindle torque (40%/100% duty) | 780 / 600 | Nm |

| Spindle speed, max. | 2,850 | rpm |
