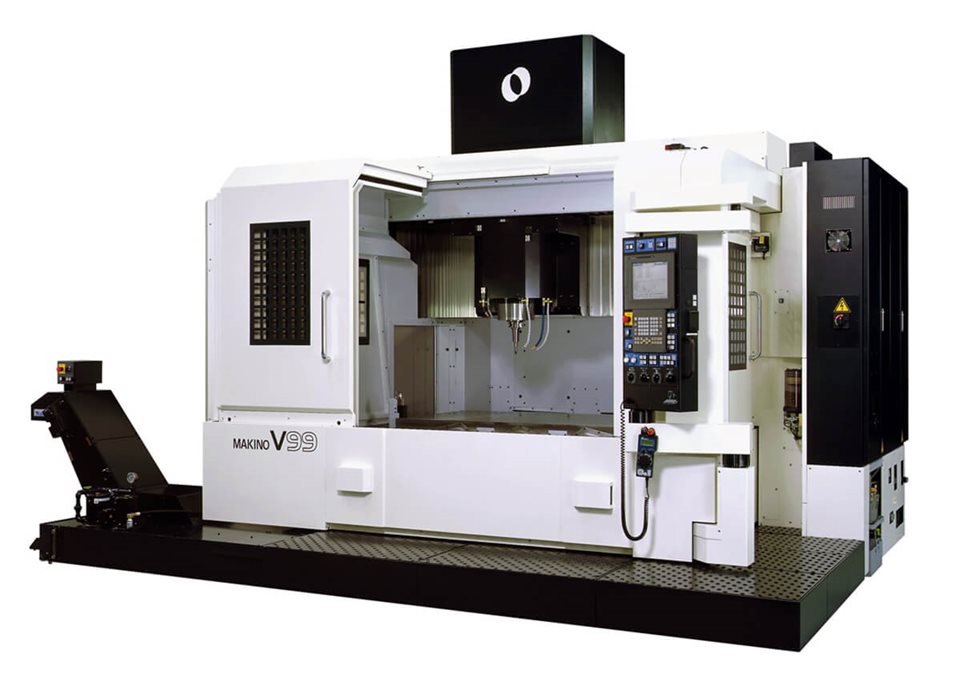

Makino V99 (40 Taper) | Vertical 3-Axis CNC Machining Center
Available

Save

Makino

To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA

Product Description

Summary

The Makino V99 (40 Taper) is a vertical 3-axis CNC machining center designed for the precision machining of large and medium-sized dies, molds, and complex precision parts. It achieves tight tolerances and optimal surface finish on hardened steel and similar materials, leveraging environmental control features and proprietary servo control for cycle time reductions. Distinctive technical features include a core-cooled spindle, under-race lubrication, and Makino’s Super Geometric Intelligence (SGI.5) control.

Key Capabilities

  • 3-axis simultaneous CNC machining with vertical spindle configuration
  • Micron-level accuracy for die/mold and precision component manufacturing
  • Core-cooled, 20,000 rpm CAT40-taper spindle (optional HSK-A63 and HSK-F63, 30,000 rpm available)
  • Advanced servo and control system reduces cycle times for complex cavities and cores
  • Configurable automatic tool changer with up to 80 tools
  • Maximum workpiece capacity up to 1,800 x 1,000 x 650 mm, 4,000 kg

Key Specifications

Parameter Value Unit
X Travel 1,500 mm
Y Travel 1,000 mm
Z Travel 800 mm
Maximum Spindle Speed 20,000 (optional 30,000) rpm
Table Size 1,800 x 1,000 mm
Maximum Workpiece Size 1,800 x 1,000 x 650 mm
Maximum Payload 4,000 kg
Rapid Traverse 20,000 mm/min
ATC Tool Capacity 30 / 40 / 80
