Summary

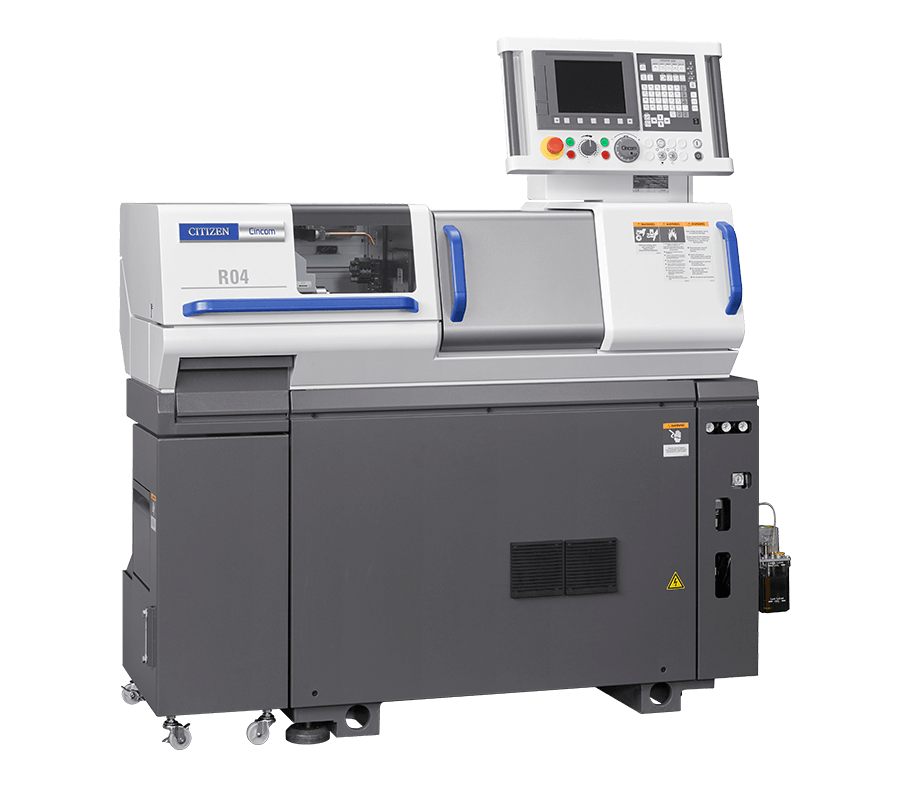

The Cincom R04II is a Swiss type CNC automatic lathe designed for high-precision, small-diameter turning of parts up to 4mm. The machine incorporates control of thermal displacement and oil cooling for enhanced dimensional stability, and features a lightweight spindle with rapid acceleration up to 20,000 min⁻¹. With a compact body of 535mm depth, it is well suited for installation in restricted spaces where precision micro-turning is required.

Key Capabilities

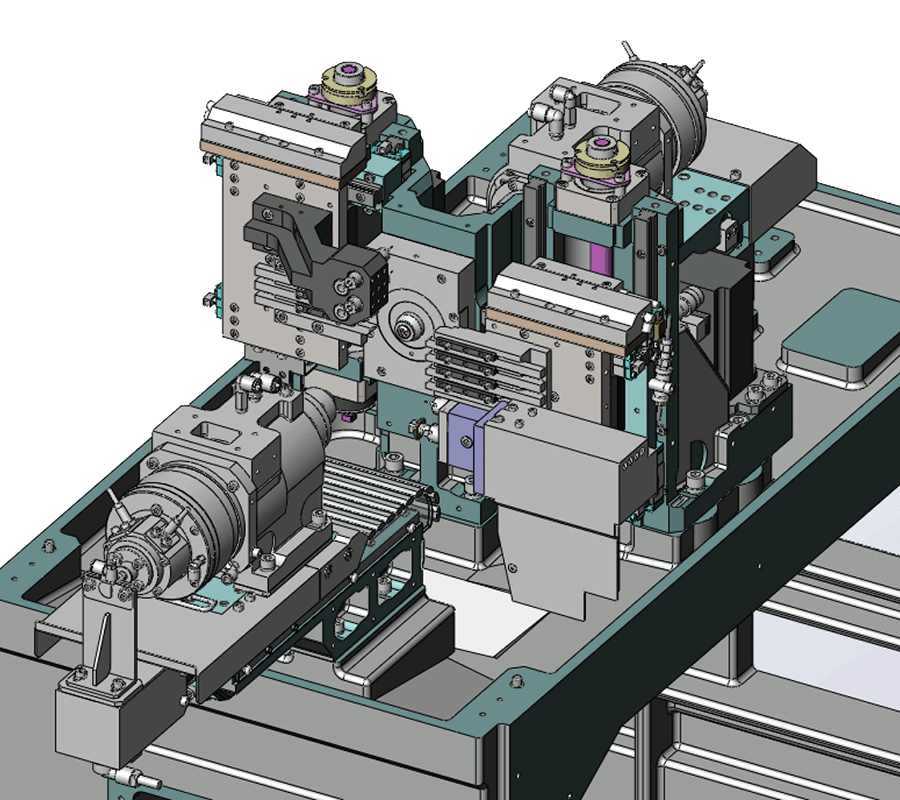

• CNC-controlled Swiss type sliding headstock for continuous, precision bar turning
• Supported maximum machining diameter of 4mm and maximum length up to 40mm (fixed guide bushing)

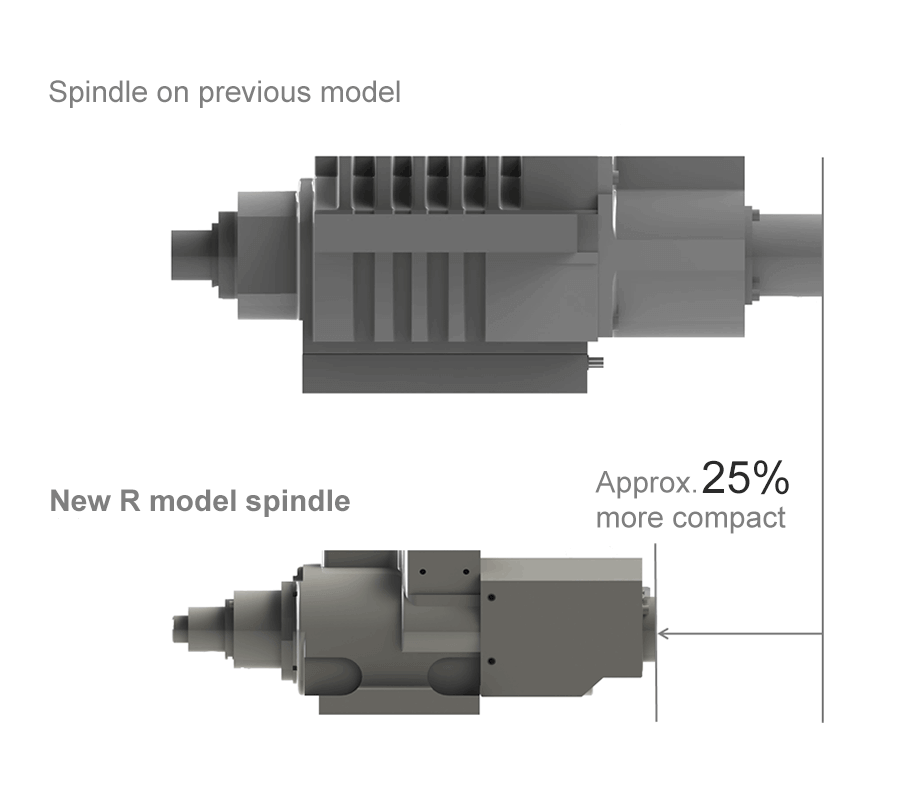

• Main spindle speed up to 20,000 min⁻¹ with low vibration and rapid acceleration
• 13-tool turret capacity including turning, drilling, and tapping
• Integrated oil cooling and thermal displacement management
• Compact footprint for small-area shop installation

Key Specifications
