Summary

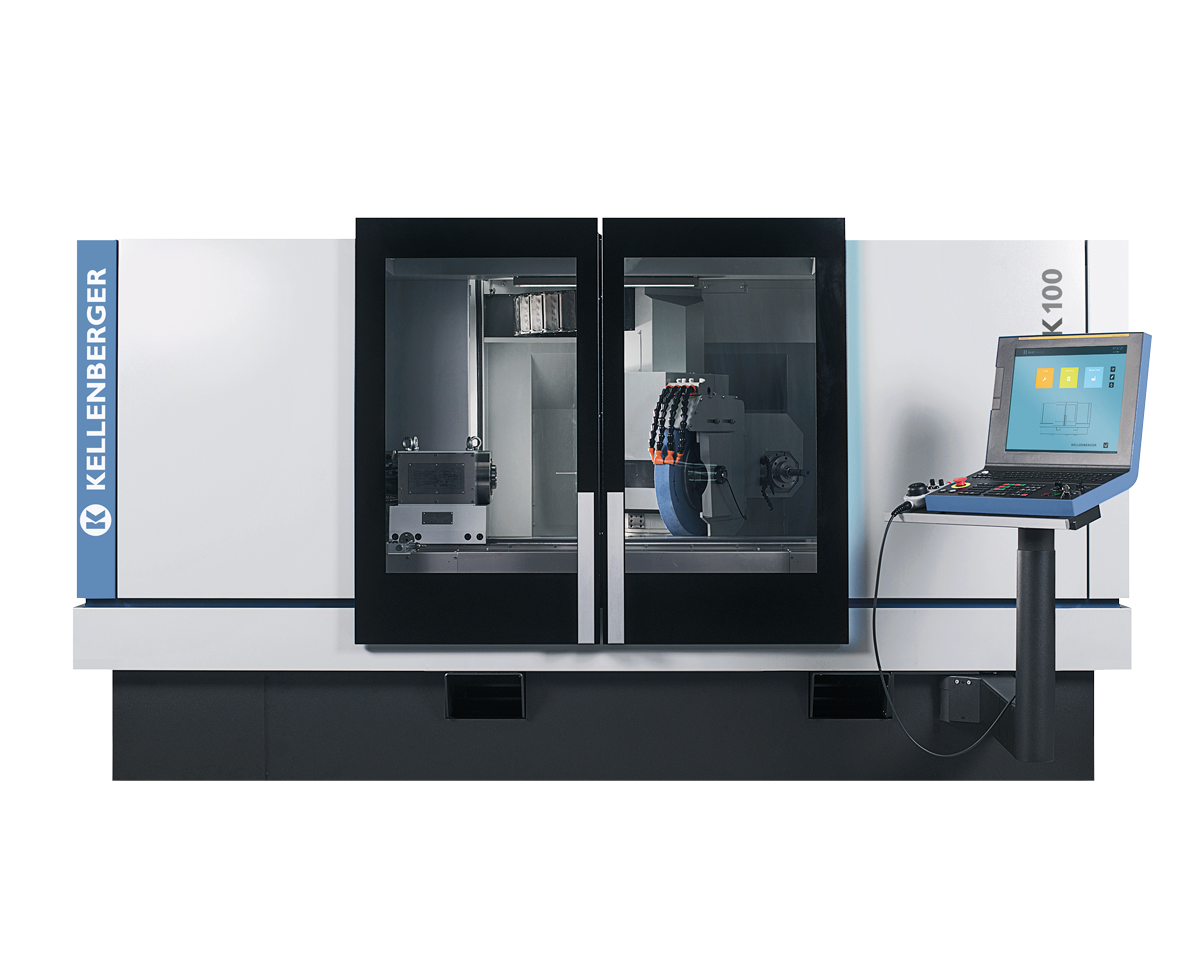

The Kellenberger K100 is a CNC universal cylindrical grinding machine designed for precision external and internal grinding of shafts and cylindrical components. Its core function is to perform high-accuracy cylindrical grinding operations on workpieces up to 200 kg, supporting various grinding tasks through multiple configurable wheel heads, axes, and spindle options. Notable differentiators include direct-drive B and C axes, integrated in-process measurement, and advanced FANUC CNC with intuitive touch-screen interface.

Key Capabilities

• Supports both external and internal cylindrical grinding via universal and diagonal grinding head configurations
• Handles workpieces up to 200 kg, with center heights of 200/250 mm and center widths up to 1,700 mm
• Equipped with direct-drive rotary B-axis (universal head) for flexible tool orientation and high positioning accuracy
• Features integrated measuring probe with dedicated non-swiveling position for in-process measurement
• Capable of high-precision non-circular (C-axis controlled) grinding
• Includes intuitive operation via 19" touch screen and BLUE Solution software
• Supports synchronous tailstock for complete shaft machining without a driver
