Summary

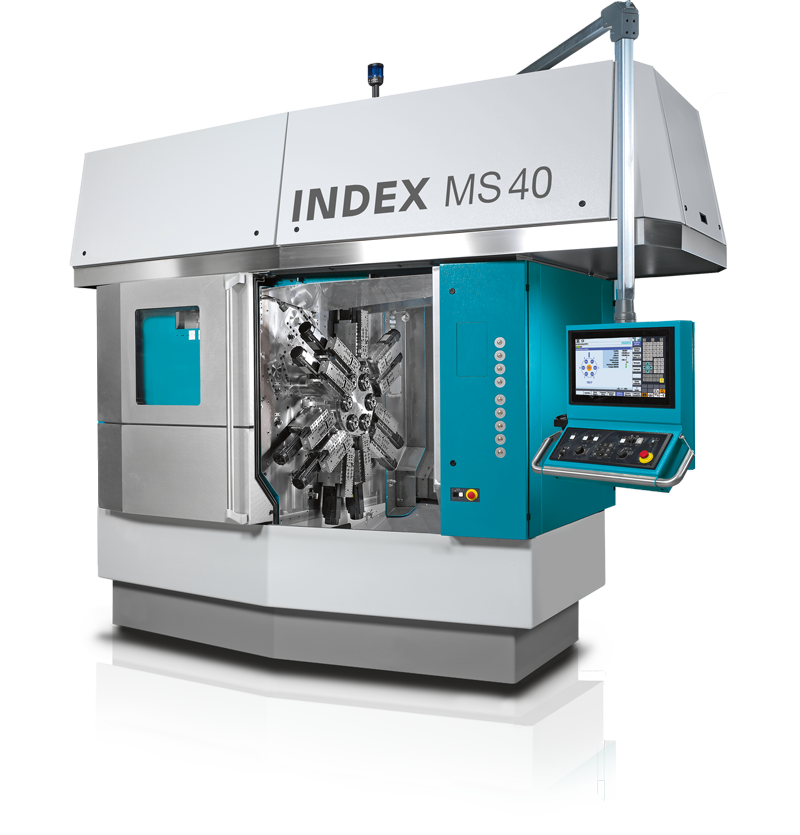

The INDEX MS40-6 is a multi-spindle CNC automatic lathe designed for high-efficiency bar and chuck part machining. It performs simultaneous multi-axis turning operations using up to six spindles, with integrated features for rear end machining and live tooling. Distinctive characteristics include synchronized spindle swiveling with a Hirth coupling for high rigidity and advanced control via Siemens S840D sl.

Key Capabilities

• Simultaneous machining on up to 6 working spindles
• Bar capacity up to 40 mm per spindle

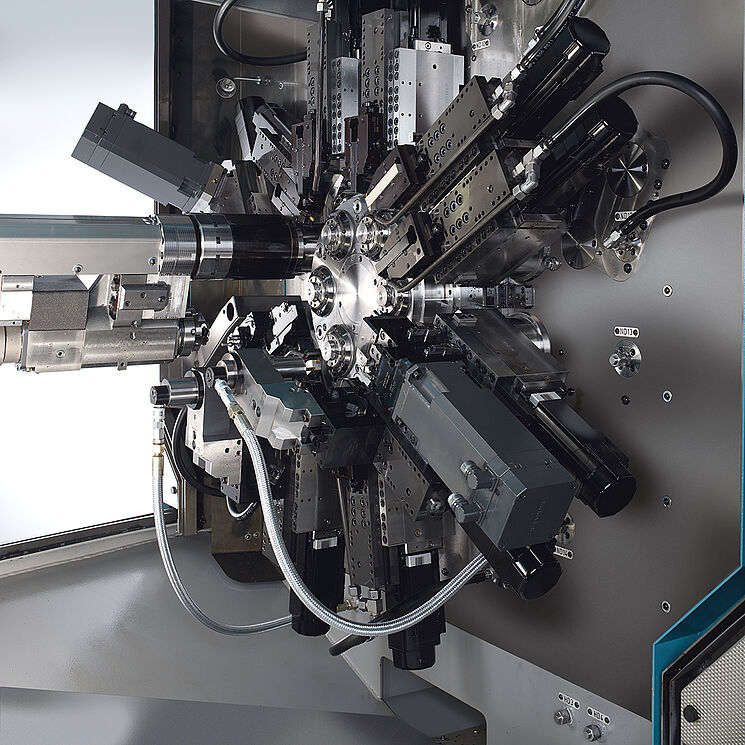

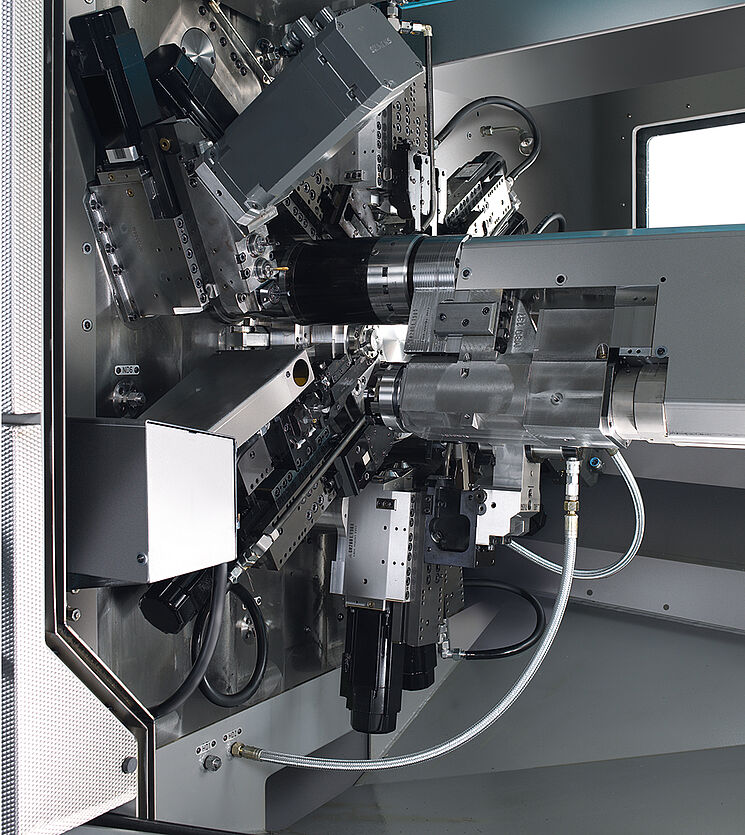

• Supports rear end machining with up to 6 tools on a swiveling synchronous spindle
• Fast swiveling motion and hydraulic locking via Hirth coupling for enhanced rigidity
• Integrated live tools with C- and Y-axes support
• Automation support for robotic or linear handling units
• Operates with Siemens S840D sl CNC control and 18.5" multi-touch screen

Key Specifications
