Summary

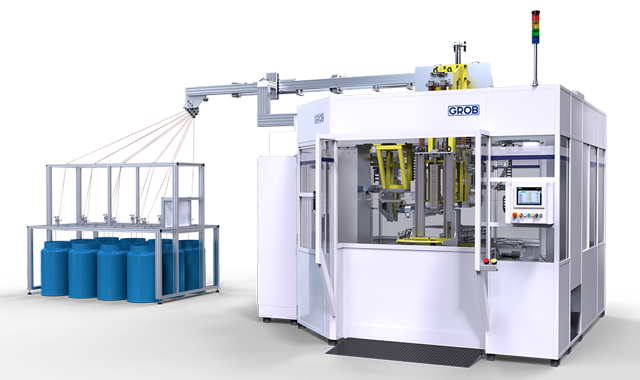

The Grob Winding and inserting machine is designed for automatic coil winding and insertion into stator cores for induction motors. Its core function is to produce distributed winding stators with efficient coil insertion using three independent slides. The machine features automatic adaptation to varying core heights and includes technical provisions such as cuff supports and slot insulation protection.

Key Capabilities

• Automatic coil winding and insertion for distributed winding stators
• Three independent slides for simultaneous operations
• Automatic adjustment to laminated core height variations
• Slot insulation paper protection via cuff support
• HMI-driven tool change
• Optional anti-twist and lead twist systems
• Automatic form opening and centering

Key Specifications

| Parameter | Value | Unit |
