Summary

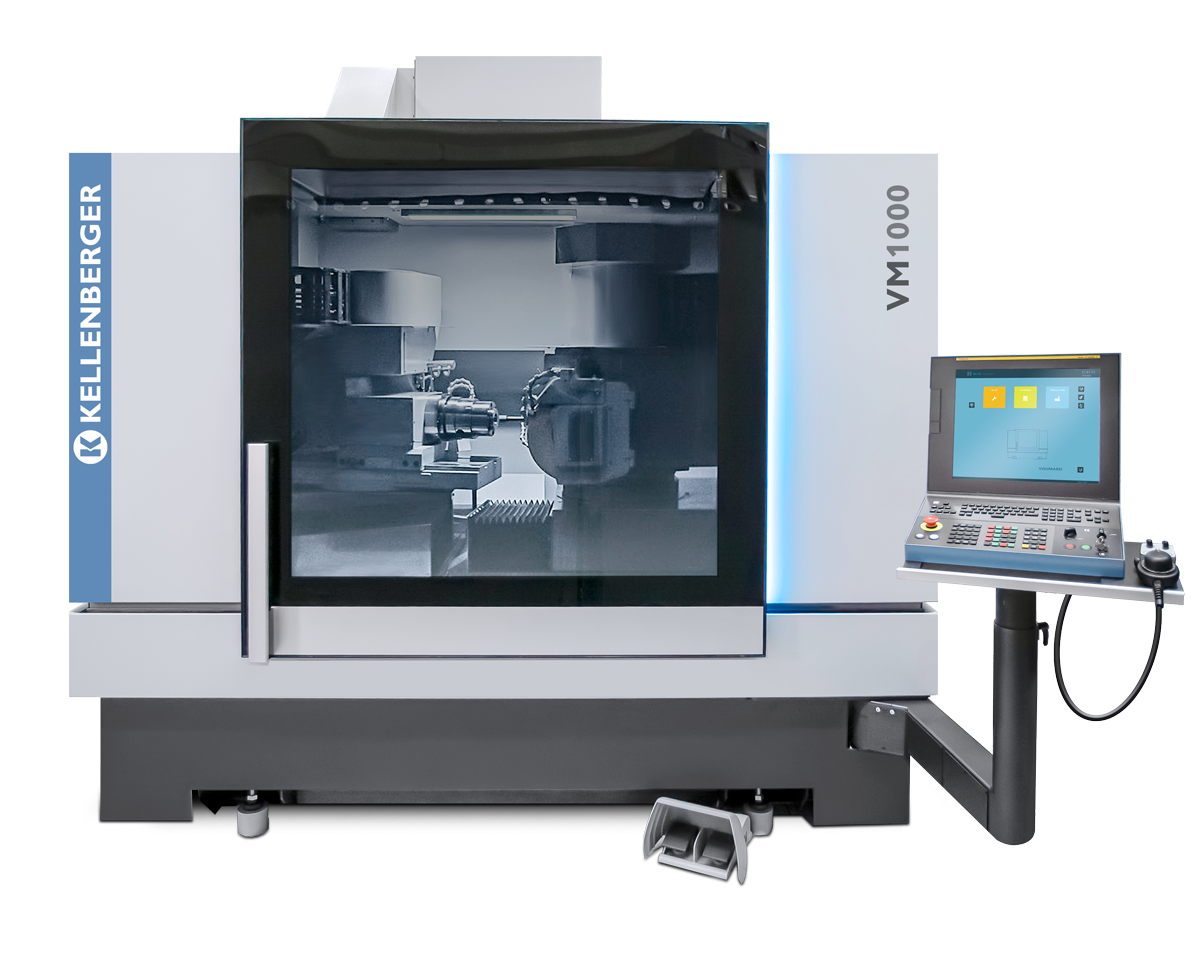

The Kellenberger VM1000 is a CNC universal cylindrical grinder designed for high-precision internal and external grinding of complex workpieces. Its two linear and two rotary axes combined with hydrostatic HYDROLIN® guides enable multi-feature grinding operations in a single setup, supporting both prototypes and flexible small-batch production. Differentiating features include a revolver-type spindle turret for up to four grinding spindles and sub-micron positioning accuracy via hydrostatic axes.

Key Capabilities

• Supports universal internal and external cylindrical grinding in a single clamping
• Two linear and two rotary axes for flexible multi-axis kinematics
• Hydrostatic linear axes with HYDROLIN® guides enable backlash-free motion and nanometer positioning
• Compact revolver grinding spindle head can be equipped with up to four internal grinding spindles
• High-precision chucks, steady rests, and fixtures allow a wide range of workpiece shapes
• Integrated CNC control (Fanuc 0i-F) with touchscreen HMI and advanced software modules
• Suited for workpieces such as fuel injection components, ball bearing rings, gears, hydraulic and machine tool parts
