Summary

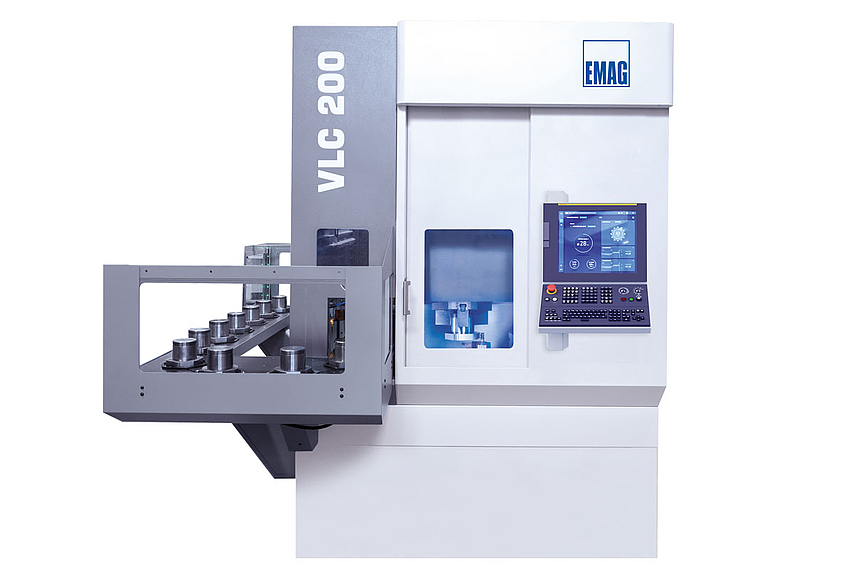

The Emag vlc 200 is a vertical CNC turning center designed for flexible, high-volume production of chucked parts. Its core function is precision metal turning with the capability to be configured for additional machining processes such as grinding, milling, and gear hobbing. The integrated pick-up spindle automation and modular tool turret support extensive configurability for multi-process workflows in a single setup.

Key Capabilities

• Vertical turning of chucked components up to 200 mm diameter
• Integrated pick-up spindle for automated part loading from conveyor
• Modular machining area supports turning, milling, grinding, gear hobbing, and drilling operations
• 12-position tool turret accepts both driven and stationary tools
• Supports combined hard turning and grinding (OD, ID) configurations
• Flexible axis travel, including optional Y-axis for extended machining options

Key Specifications

| Parameter | Value | Unit |

| Workpiece diameter, max. | 200 | mm |

| Workpiece length, max. | 200 | mm |

| Chuck diameter, max. | 260 | mm |

| Swing diameter | 280 | mm |

| X-axis travel | 760 | mm |

| Z-axis travel | 415 | mm |

| Y-axis travel (optional) | ±30 | mm |
