Summary

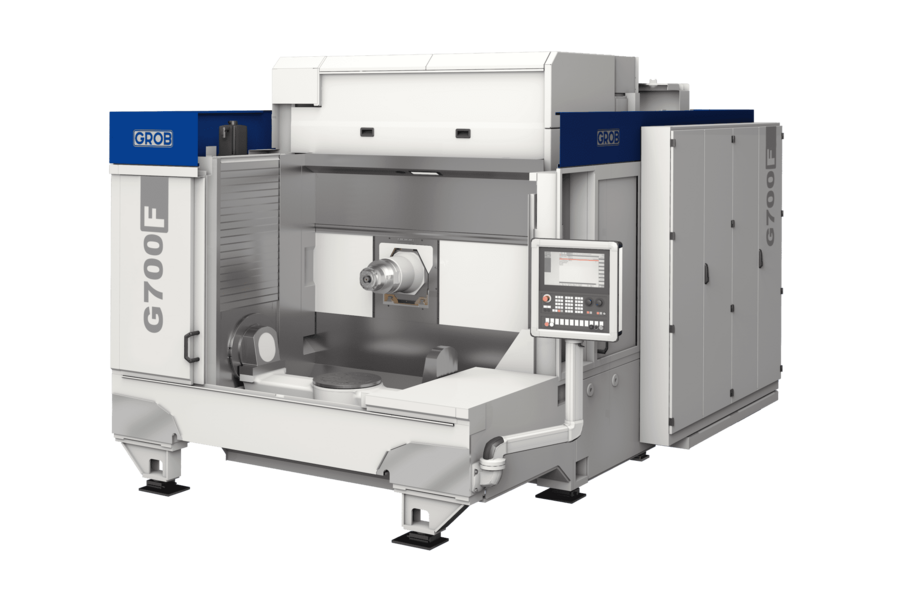

The Grob G700F is a 5-axis horizontal machining center designed for precision machining of large frame structure and chassis components. It supports parts up to 1,500 x 900 mm and features full 6-sided machining capability enabled by a narrow bridge and large working area. Key differentiators include multiple flexible part loading options, an unrestricted 1,500 mm interference diameter in rotary axes, and high dynamic axis motions suitable for production of large, complex structural components.

Key Capabilities

• 5-axis machining for complete part accessibility, including 6-sided operations
• Accommodates large workpieces up to 1,500 mm interference diameter
• Multiple part loading options: manual or automatic front/top loading
• Continuous chip fall with horizontal spindle for efficient machining
• Can operate as a stand-alone unit or in a linked machine line

Key Specifications
