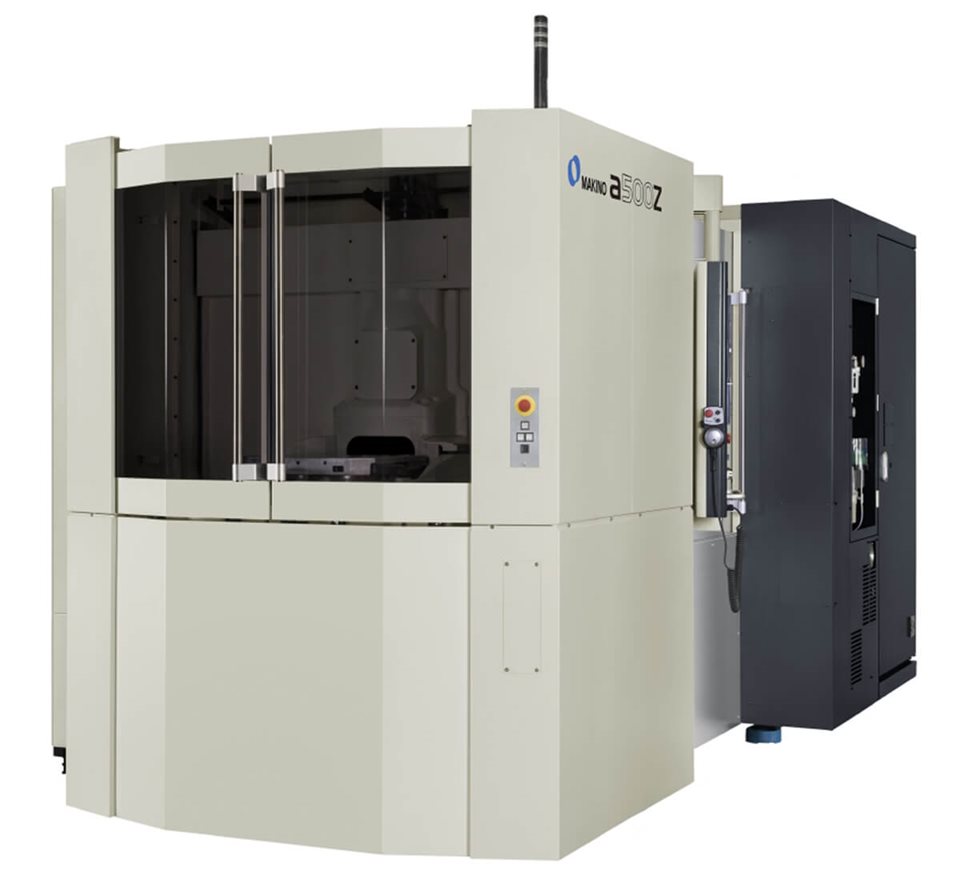

Makino a500Z | 5-Axis Horizontal Machining CenterAvailable
Save
Share
Makino
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Makino a500Z is a 5-axis horizontal machining center designed for complex multi-sided machining and high metal removal rates. Its unique direct-drive rotary axes and rigid structure support efficient transfer of cutting loads, suitable for production of intricate parts in a single setup. Key features include a large work envelope, integrated automatic pallet changer, and advanced thermal stability.
Key Capabilities
- 5-axis simultaneous machining via direct-drive B- and C-axes
- Horizontal spindle design for improved chip evacuation
- Accommodates workpieces up to Ø630 mm x 500 mm high, up to 400 kg
- Standard automatic pallet changer for uninterrupted production
- Standard 14,000 RPM high-power spindle with optional 20,000 RPM spindle
- Advanced CNC control with high-speed machining intelligence
- Closed-loop active temperature control for all axes
- Tool magazine capacity configurable up to 313 tools
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Pallet Size | 500 | mm |
| X-Axis Travel | 730 | mm |
| Y-Axis Travel | 750 | mm |
| Z-Axis Travel | 500 - 700 | mm |
| B-Axis Rotation | 360 (unlimited), direct drive | degrees |
| C-Axis Rotation | 180, direct drive | degrees |
| Spindle Speed (Std./Opt.) | 14,000 / 20,000 | rpm |
| Rapid Traverse | 60,000 | mm/min |
| Maximum Workpiece | Ø630 x 500 | mm |
| Maximum Payload | 400 | kg |
| ATC Capacity (Std./Opt.) | 60 / 133, 218, 313 | tools |
| Maximum Tool Diameter | 170 | mm |
| Maximum Tool Weight | 12 | kg |
| Tool-to-Tool Change Time | 0.9 | sec |
