Summary

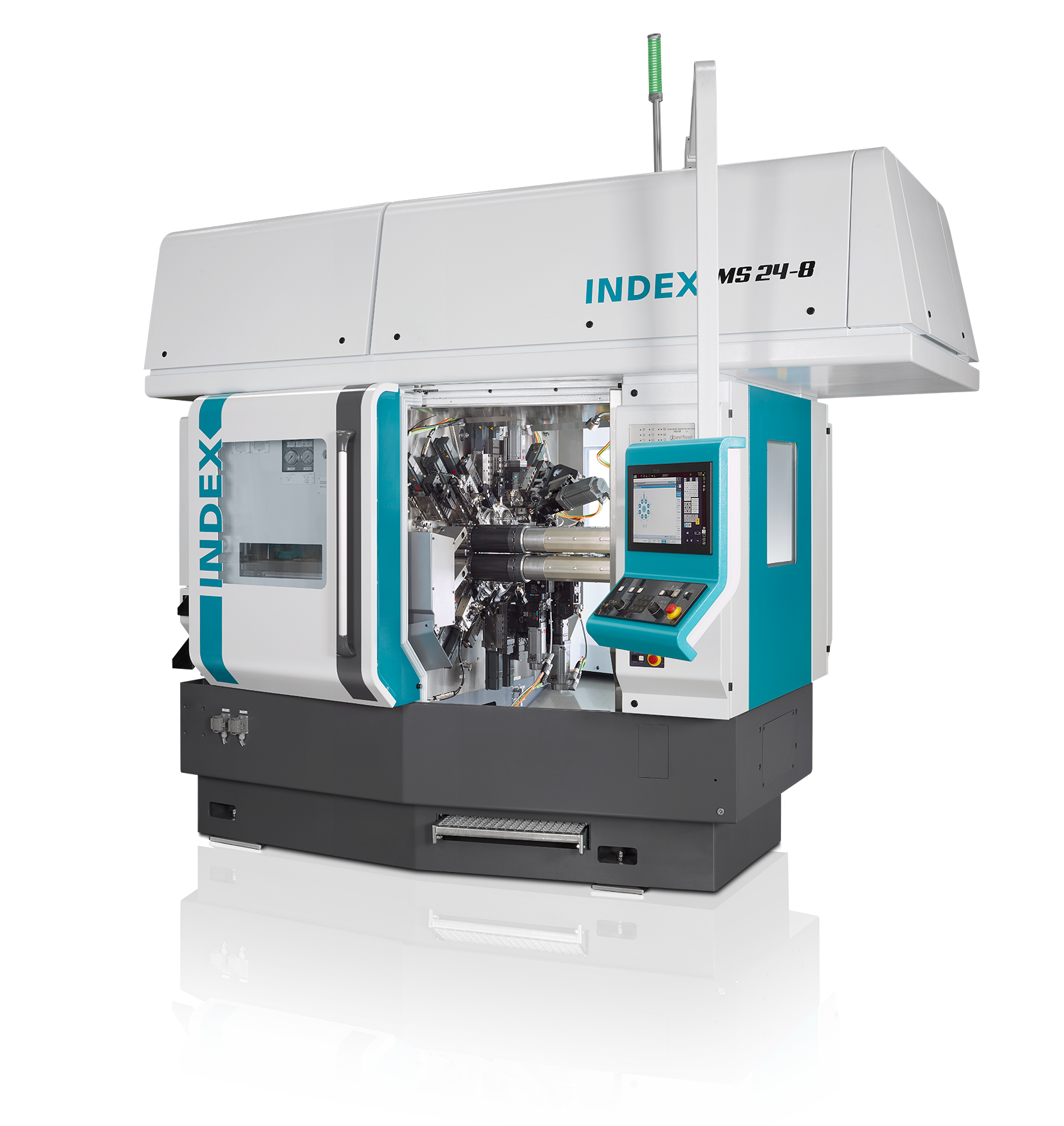

The INDEX MS24-8 is a multi-spindle CNC automatic lathe engineered for high-throughput bar and chucked part machining. Its core function is the simultaneous turning and backworking of two identical or different workpieces, enabled by up to eight working spindles and multiple individually controlled tool carriers. Distinctive for its dual swiveling synchronous spindles, integrated Y-axis slides, and hydrostatically supported Z-axis quills, the machine supports complex part geometries, short cycle times, and flexible setups in production environments.

Key Capabilities

• Simultaneous machining of two workpieces in parallel

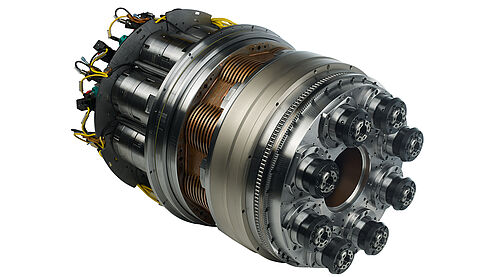

• Configurable up to 8 working spindles for high volume turning
• Swiveling synchronous spindles with C axis for backworking

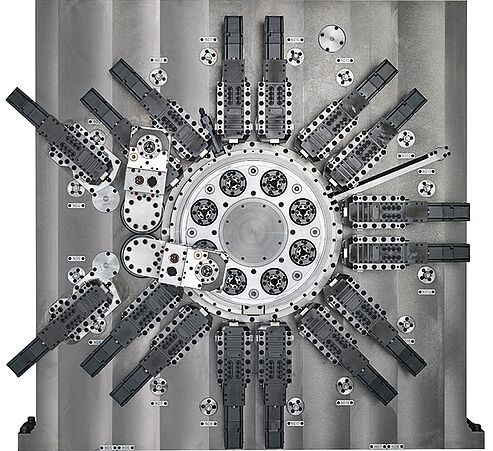

• Up to 16 tool carriers with optional Y-axis capability
• Hydrostatic support on Z axis quills for non-wearing operation
• Directed part discharge via linear handling
• Quick setup through INDEX W-serration and front-opening working area

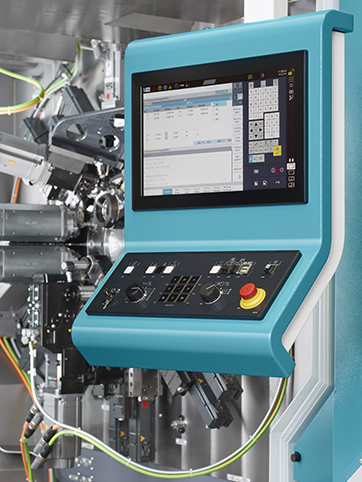

• Control system: Siemens S840D sl with Multi-Touch Screen
