Summary

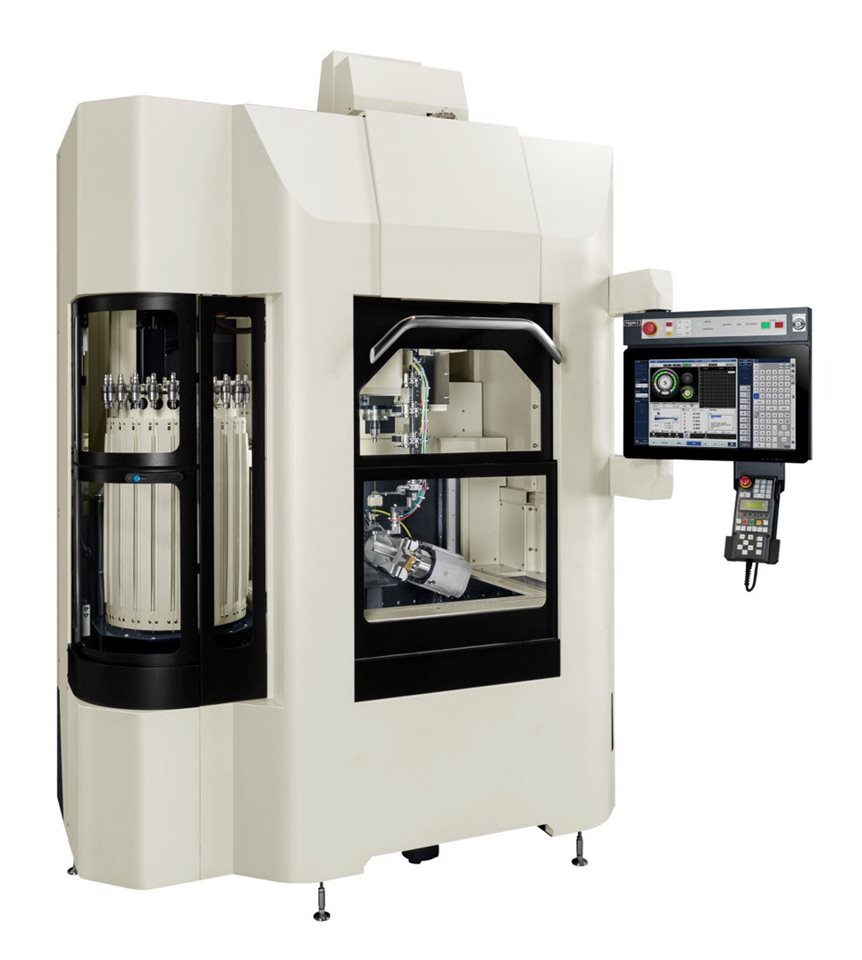

The Makino BX3 is a CNC EDM (Electrical Discharge Machining) drilling machine designed for precise hole formation, featuring a 2-axis rotary table to enable multi-sided access and complex part orientations. This system delivers high-speed, fully submerged EDM drilling specifically optimized for aero-engine detail machining, with automatic tool change and adaptive generator control for efficient, unattended operation. Unique features include programmable high-pressure fluid management, rapid-breakthrough detection, and a digital control system with integrated IIoT connectivity.

Key Capabilities

• High-speed EDM drilling with rapid table and axis positioning
• 2-axis rotary table for complex workpiece orientation
• Submerged machining with programmable rise and fall tank
• Automatic tool changer supporting electrodes up to 700mm length
• Adaptive digital generator with breakthrough detection (<1 second)
• Integrated water filtration and high-pressure pump (10MPa)
• Large HD touch-screen CNC control with specialized EDM drilling functions
• IIoT-enabled remote monitoring and data integration

Key Specifications
