Citizen Machinery Miyano BNA-42SY | Dual-Spindle CNC Turning Center with Y-Axis TurretAvailable
Save
Share
Citizen Machinery
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary

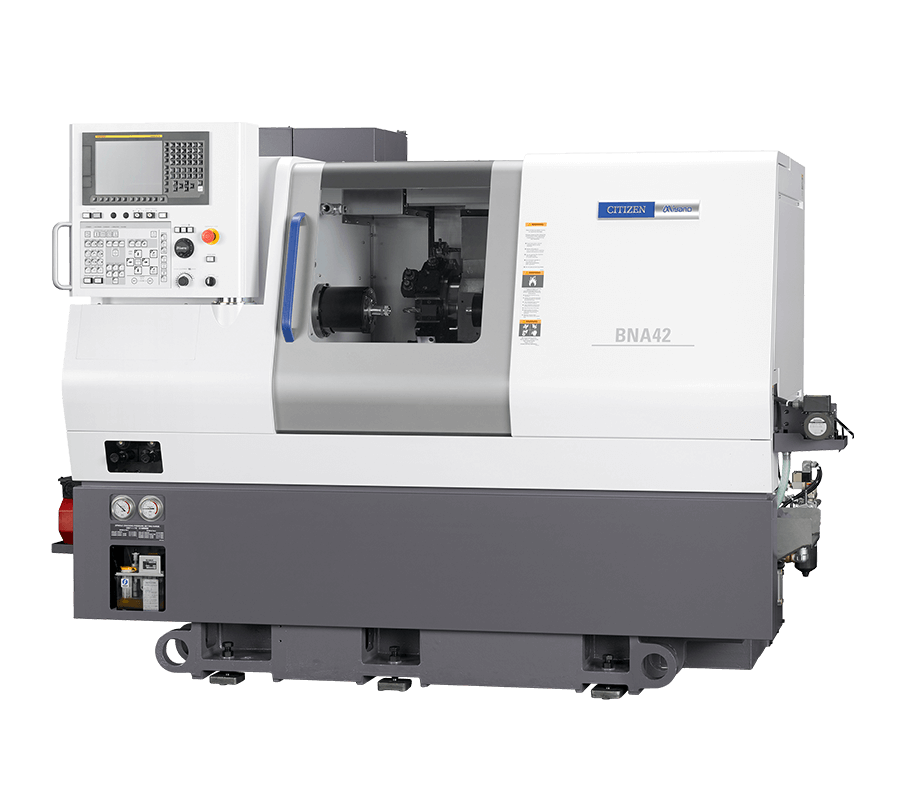

The Citizen Machinery Miyano BNA-42SY is a dual-spindle CNC turning center designed for bar material processing, featuring a single 12-station turret with integrated Y-axis motion. This platform enables simultaneous left/right machining, superimposed processes, and utilization of both standard and rotary tools for complex part production.
Key Capabilities
- Dual-spindle configuration for front and back working capabilities

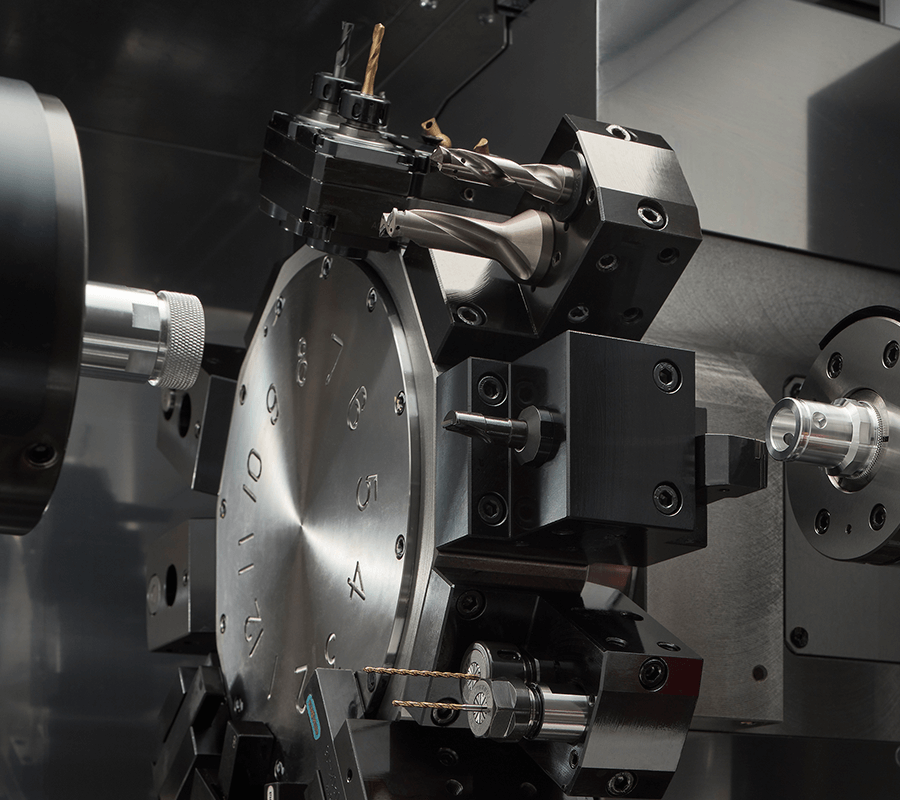

- Single 12-station turret with Y-axis travel for expanded tool capacity and off-center operations

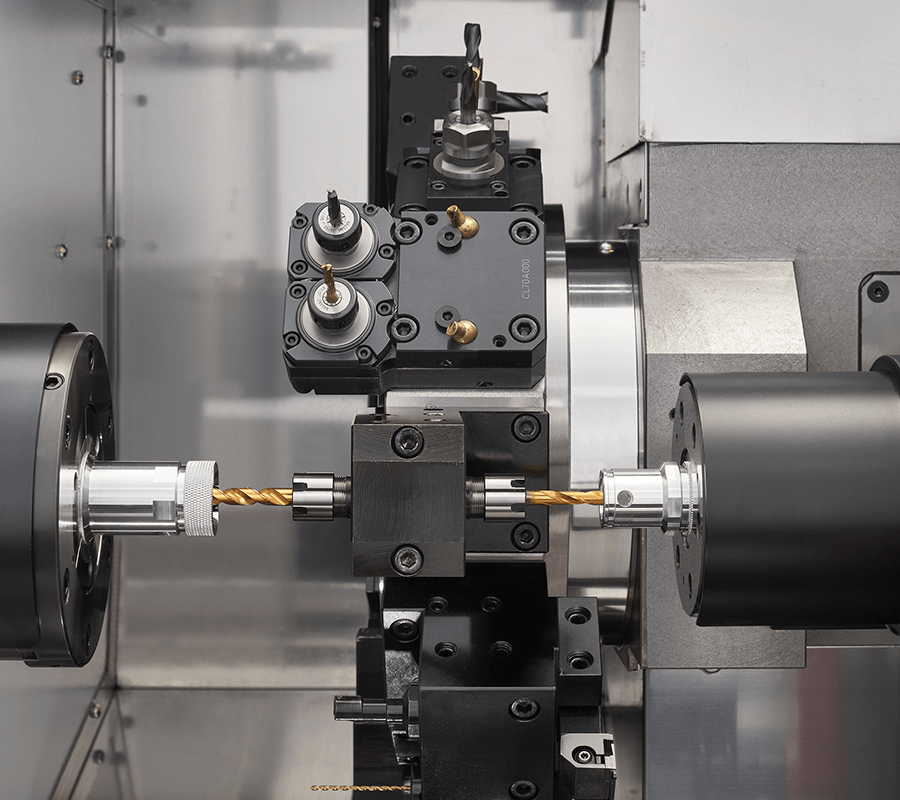

- Simultaneous left/right (superimposed) machining capability
- Rotary tool support for live tooling applications
- Bar-machining suitability up to 42mm diameter on the main spindle
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Max. machining length | 100 | mm |
| Standard machining diameter SP1 | 42 | mm |
| Standard machining diameter SP2 | 34 | mm |
| Number of spindles | 2 | |
| Number of turret stations | 12 | |
| Turret Y-axis travel | ±35 | mm |
| Rotary tool speed | 50 – 5,000 | min⁻¹ |
| Rapid feed rate (X/Z axes) | 20 | m/min |
| Rated power consumption | 26 | kVA |
| Machine weight | 3,880 | kg |
