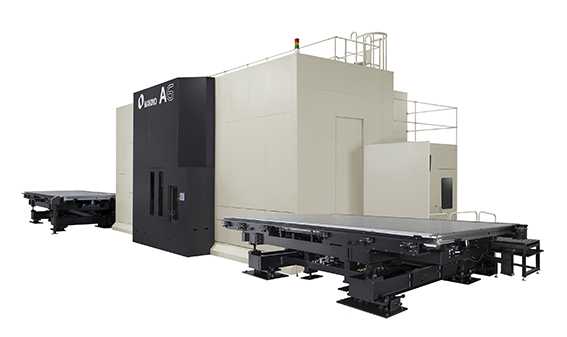

Makino MAG A6 | 5-Axis Horizontal Machining CenterAvailable
Save
Share
Makino
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Makino MAG A6 is a 5-axis horizontal machining center engineered for high-speed, precision contouring and high metal-removal rates. Its design is tailored for the machining of large, complex, monolithic aluminum components, specifically in aerospace manufacturing. Features such as a 33,000 rpm spindle, large pallet size, and integration options for unattended operation distinguish its technical capabilities within its class.
Key Capabilities
- 5-axis simultaneous horizontal machining for large part geometries
- 33,000 rpm, 130 kW spindle supporting high metal-removal rates in aluminum
- Work envelope and pallet system sized for oversized, monolithic aerospace parts
- Integration with automatic pallet transfer and storage enables extended unattended operation
- Rapid movement rates and precision-contouring for complex surface machining
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Pallet Size | 6,000 x 2,000 | mm |
| X Travel | 6,200 | mm |
| Y Travel | 2,200 | mm |
| Z Travel | 650 | mm |
| A-Axis Range | -110 to +110 | degrees |
| C-Axis Range | 360 | degrees |
| Max Spindle Speed | 33,000 | rpm |
| Max Workpiece | 6,000 x 2,200 x 500 | mm |
| Max Payload | 5,000 | kg |
| ATC Capacity | 120 | tools |
| Tool Change (Tool/Chip) | 13 / 20 | sec |
