Summary

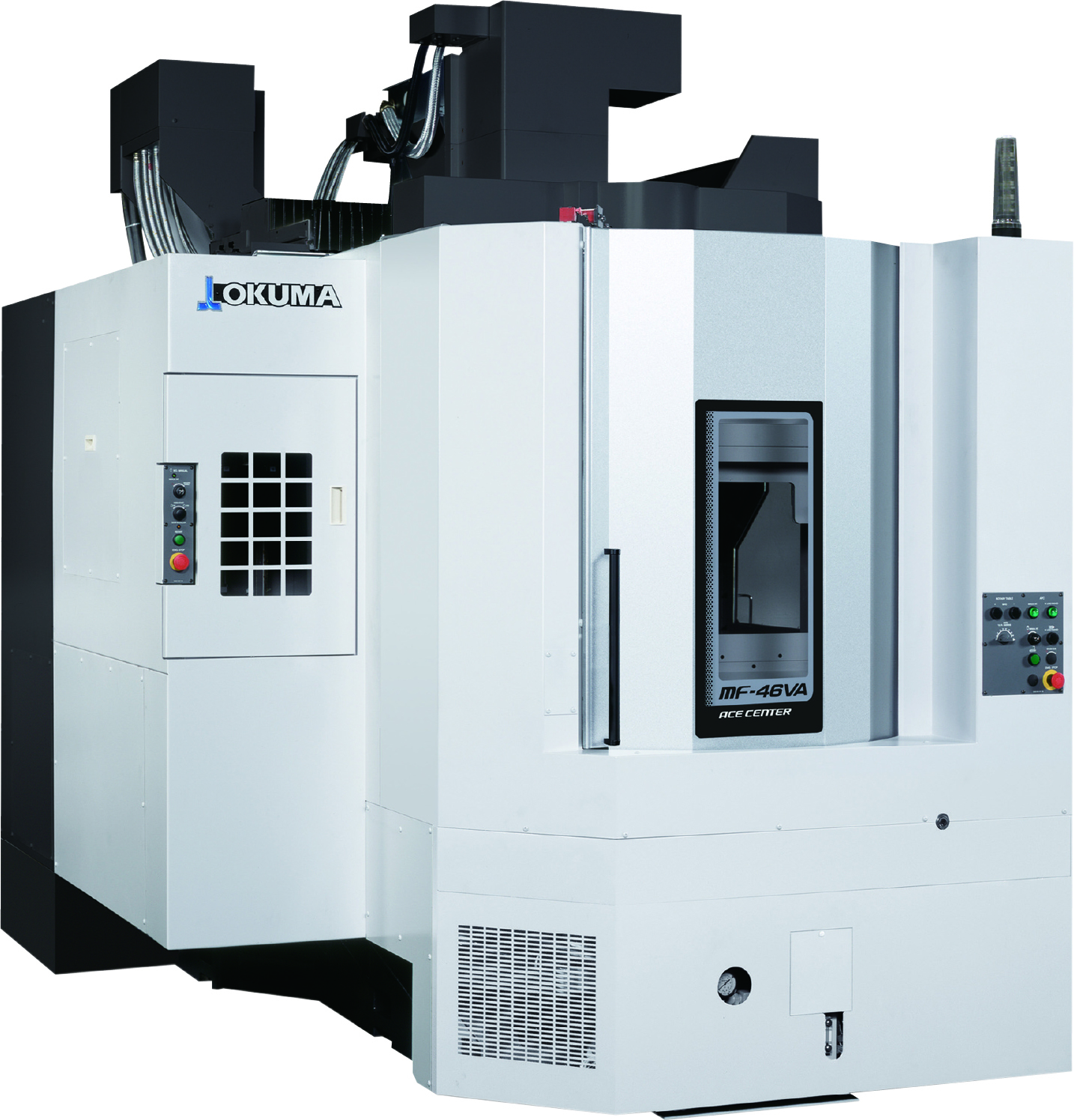

The Okuma MF-46V is a double-column vertical machining center designed for high-accuracy, high-throughput milling and drilling with continuous dimensional stability. Its integrated rotary automatic pallet changer and 40-taper spindle enable efficient production of complex parts in a compact footprint, supporting extended unattended operation. Key differentiators include a 6-second rotary APC, Thermo-Friendly Concept thermal control, and rapid tool change capability.

Key Capabilities

• Double-column structure for enhanced dimensional stability during long, continuous runs
• Integrated rotary automatic pallet changer supporting fast 6-second pallet swaps
• 40-taper spindle with up to 8,000 rpm (option for 12,000 rpm) and 15 hp liquid-cooled motor
• High-speed automatic tool changer supporting up to 48 tools (optional)
• Rapid traverse rates up to 1,575 ipm (X-Y axis)
• Thermo-Friendly Concept for precision thermal management
• Compact machine footprint for flexible plant integration
• Easy integration with external automation systems

Key Specifications
