Summary

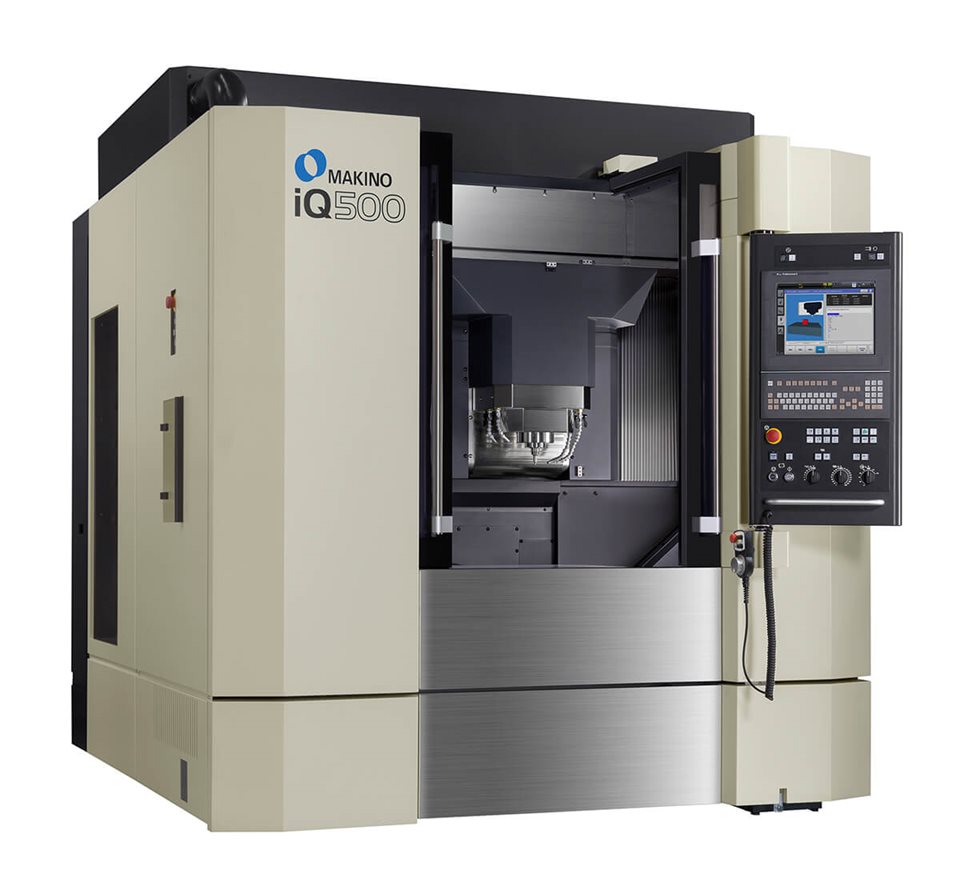

The Makino iQ500 is an ultra-precision vertical 3-axis micro milling center engineered for sub-micron machining accuracy and repeatability. It is designed for manufacturing high-tolerance micro parts, such as those used in LED tooling and optic surface finishing, and is also suitable for advanced R&D applications. Distinguishing features include a 45,000 rpm HSK-E32 spindle with advanced thermal control, linear motor drives with 0.005-micron scale feedback, and proprietary tool measurement and control technologies for precise microscopic blending and surface finish.

Key Capabilities

• Sub-micron machining accuracy and repeatability with 0.005-micron feedback scales
• 45,000 rpm HSK-E32 spindle featuring core-cooling, under-race, and jacket temperature control
• Linear motor drives on X, Y, and Z axes
• Makino Hybrid Automatic Tool Length Measurement (HyATLM) system for predictable tool blending
• Support for a wide variety of tooling with a 40-tool automatic magazine
• Super Geometric Intelligence (SGI.5) software for high-feedrate, tight-tolerance machining of complex 3D shapes
• Integrated axis drive and spindle thermal management systems

Key Specifications
