Summary

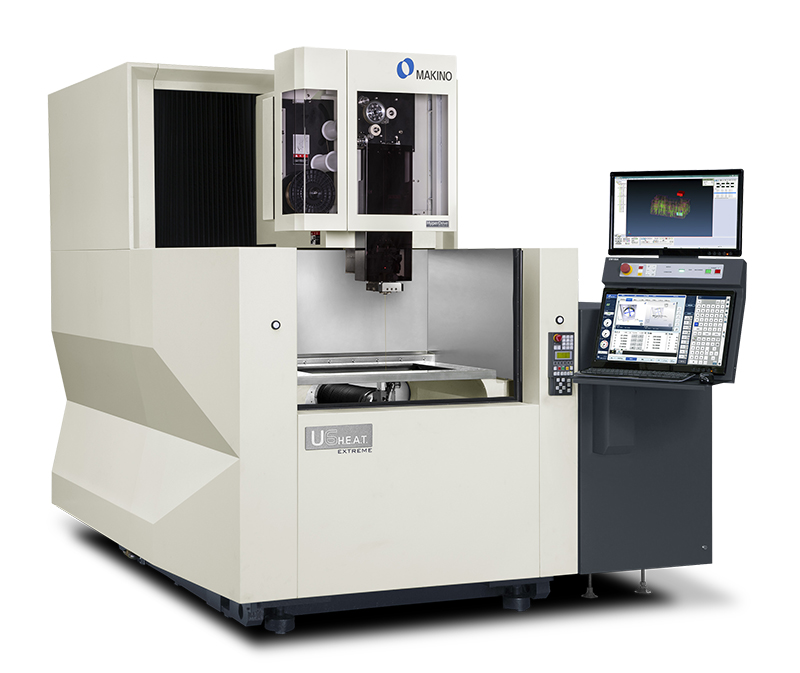

The Makino U6 H.E.A.T. Extreme is an advanced wire electrical discharge machining (EDM) system designed for fast, high-precision cutting of electrically conductive materials. The machine achieves rapid feedrates by utilizing coated wire up to 0.016” (0.400 mm) in diameter and supports fine, precise machining with wires as thin as 0.004” (0.100 mm). Its control features, multi-pass machining options, and automation elements support both productivity and consistent surface quality.

Key Capabilities

• High-speed cutting using 0.016” (0.400 mm) coated wire, with feedrates up to twice those of traditional 0.010” brass wire
• Supports wire sizes from 0.004” (0.100 mm) to 0.016” (0.400 mm) for a range of precision and roughing applications
• Achieves surface finish as fine as 16µinRa (0.4µmRa) in 3-pass machining, or 4µinRa (0.1µmRa) with optional fine finish circuit
• Automatic wire threading system and removable wire guides for operational efficiency
• Integrated Hyper-i touchscreen control with on-board manuals, training, and remote CAD/CAM software capability
• Work tank with pneumatic door, programmable at mid-height, and safety door interlock when water is present
• Large filtration system with dual CNC controlled flush pumps and filter air purge function
• U, V axes with ±75 mm travel for multi-axis contouring and setup flexibility
• Accommodates maximum workpiece size up to 1000 x 800 x 400 mm, and up to 1,500 kg
• Active Pro-Tech Circuit prevents rust and oxidation during extended operations
