Summary

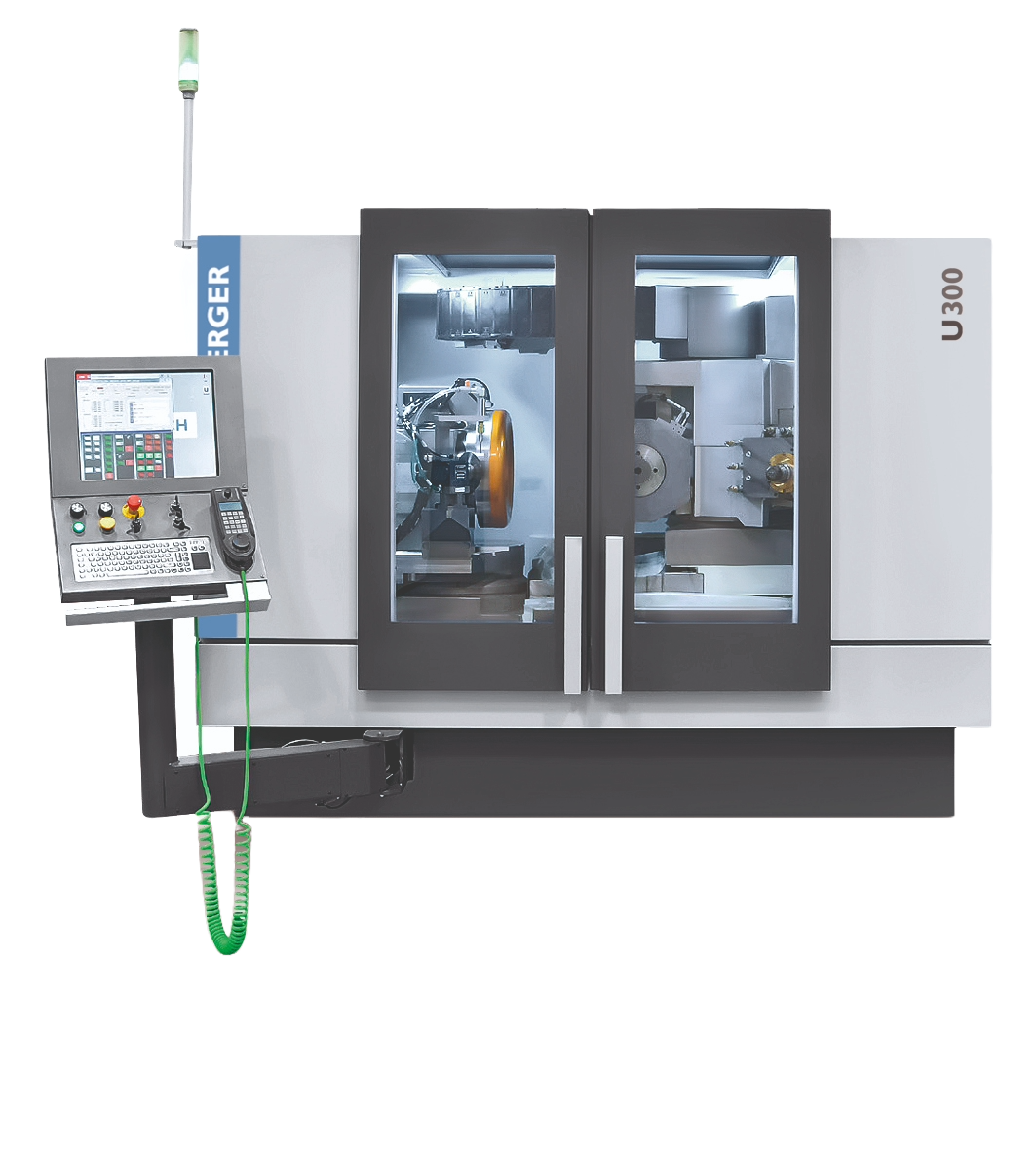

The Kellenberger U300 is a 5-axis CNC machine designed for high-precision internal and external cylindrical grinding of advanced materials. It enables the consolidation of complex grinding operations—including ID, OD, bevel, face, radius, and small feature grinding—in a single setup with multi-spindle support and automatic tool change capabilities. Notable technical features include hydrostatic swiveling B-axes, multi-axis interpolation for complex part geometries, and compatibility with advanced CNC controls.

Key Capabilities

• 5-axis multi-interpolated grinding of internal, external, spherical, and contoured surfaces
• ID, OD, bevel, face, radius, and small feature grinding in one setup
• Multi-spindle support with automatic tool change for up to 60,000 rpm tools
• Hydrostatic B1/B2 axis swiveling for enhanced flexibility and setup consolidation
• Advanced solutions for shoe grinding with high-precision radius dresser
• Vertical Y axis for face grinding, grooves, slots, off-center drilling/tapping, and automated gaging
• Center drive system enabling grinding from both sides with sub-micron tolerances
• Supported by a range of CNC controls: FANUC 32 Series, FANUC 0iF Plus, Mitsubishi M70V, Siemens 840 D

Key Specifications
