Summary

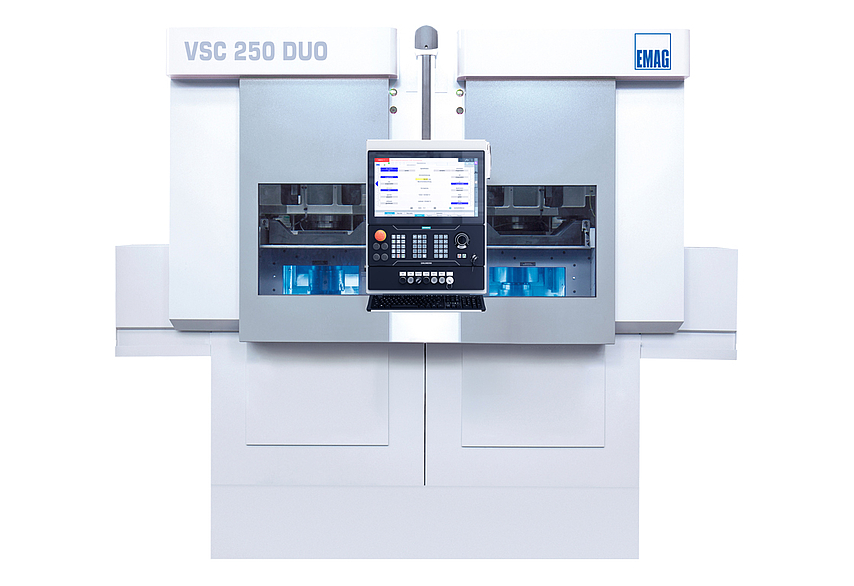

The Emag vsc duo is a twin-spindle vertical turning center engineered for sequential machining of chucked components in medium to large batch production. Its core function is two-operation turning, drilling, and milling on a single platform via independent spindle, slide, and turret assemblies. Distinctive features include individually programmable twin work zones, each equipped with a disc-type turret capable of both stationary and driven tooling, and a high-damping MINERALIT polymer concrete base.

Key Capabilities

• Dual independent machining zones for simultaneous or sequential operations
• Individually programmable overhead slides and disc-type turrets per spindle
• Supports both stationary tools and driven drilling/milling tools in each turret
• Flexible loading and unloading from either side
• Accommodates machining of first and second operations (OP 10 + OP 20) within the same footprint
