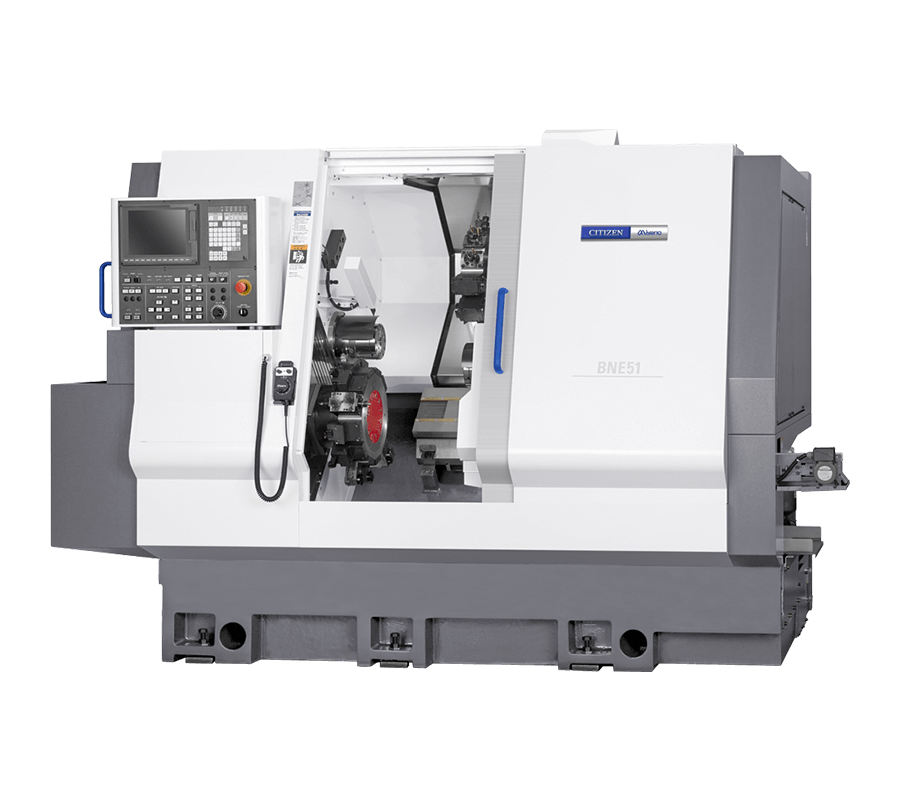

The Citizen Machinery Miyano BNE-51MSY is a twin-spindle, twin-turret CNC turning center designed for simultaneous multi-tool machining of bar stock up to 51mm diameter. Its core function is high-speed, multi-axis turning and milling, facilitated by overlapping control, two 12-station turrets, and Y-axis capability. This configuration enables 3-tool simultaneous machining for reduced cycle times and increased part complexity.
Key Capabilities

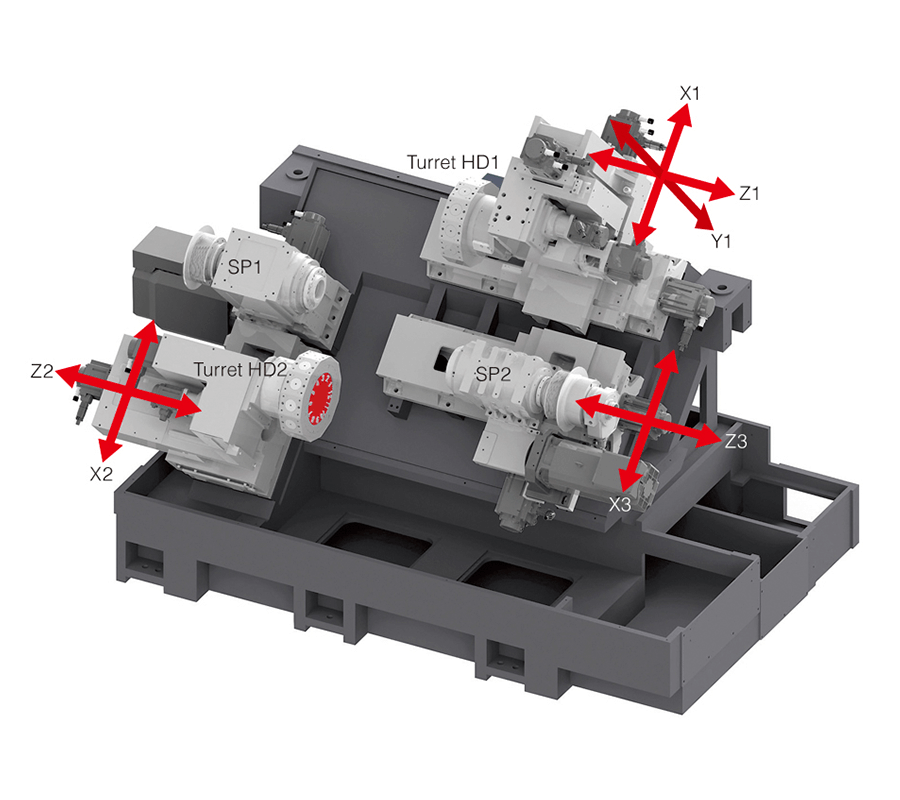

- Twin-spindle design for main and secondary operations
- Two 12-station turrets allow flexible multi-tool setups

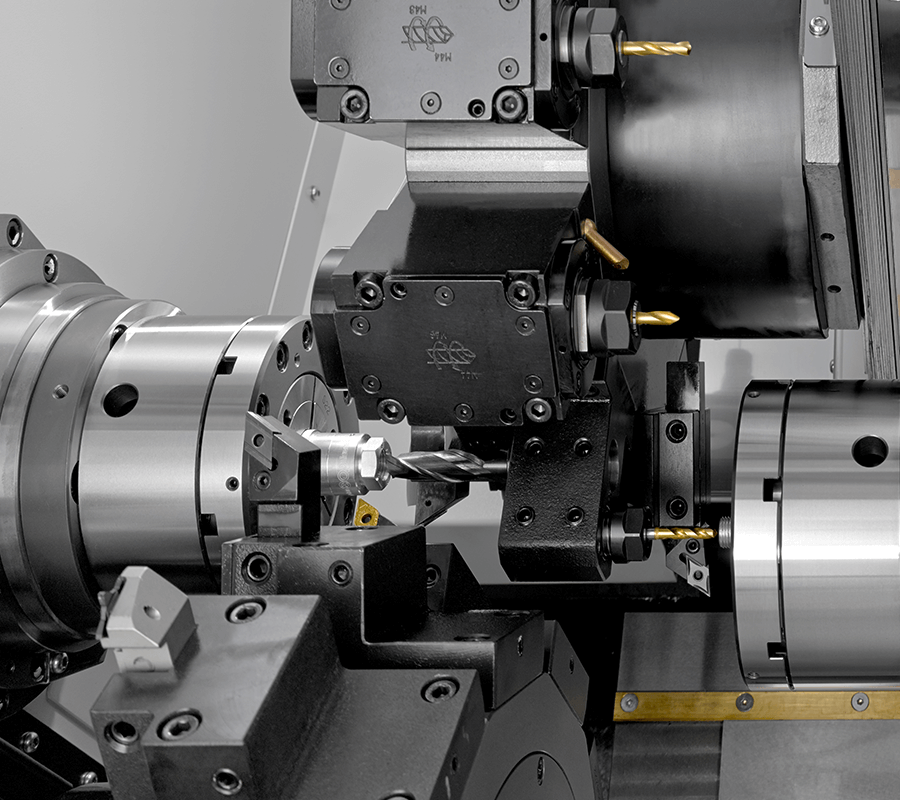

- Overlapping control enables 3-tool simultaneous machining
- Y-axis machining capability for complex part geometries
- Handles bar diameters up to 51mm
- Supports revolving tools on both turrets
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Maximum Machining Diameter of Bar Work | 51 | mm |
| Maximum Machining Length | 90 | mm |
| Number of Turrets | 2 (12 station each) | |
| Main Spindle Speed Range (SP1 & SP2) | 5,000 | min-1 |
| Y1-Axis Travel (HD1) | ±40 | mm |
| Maximum Number of Revolving Tools (Turret) | 12 | |
| Machine Weight | 8,000 | kg |
