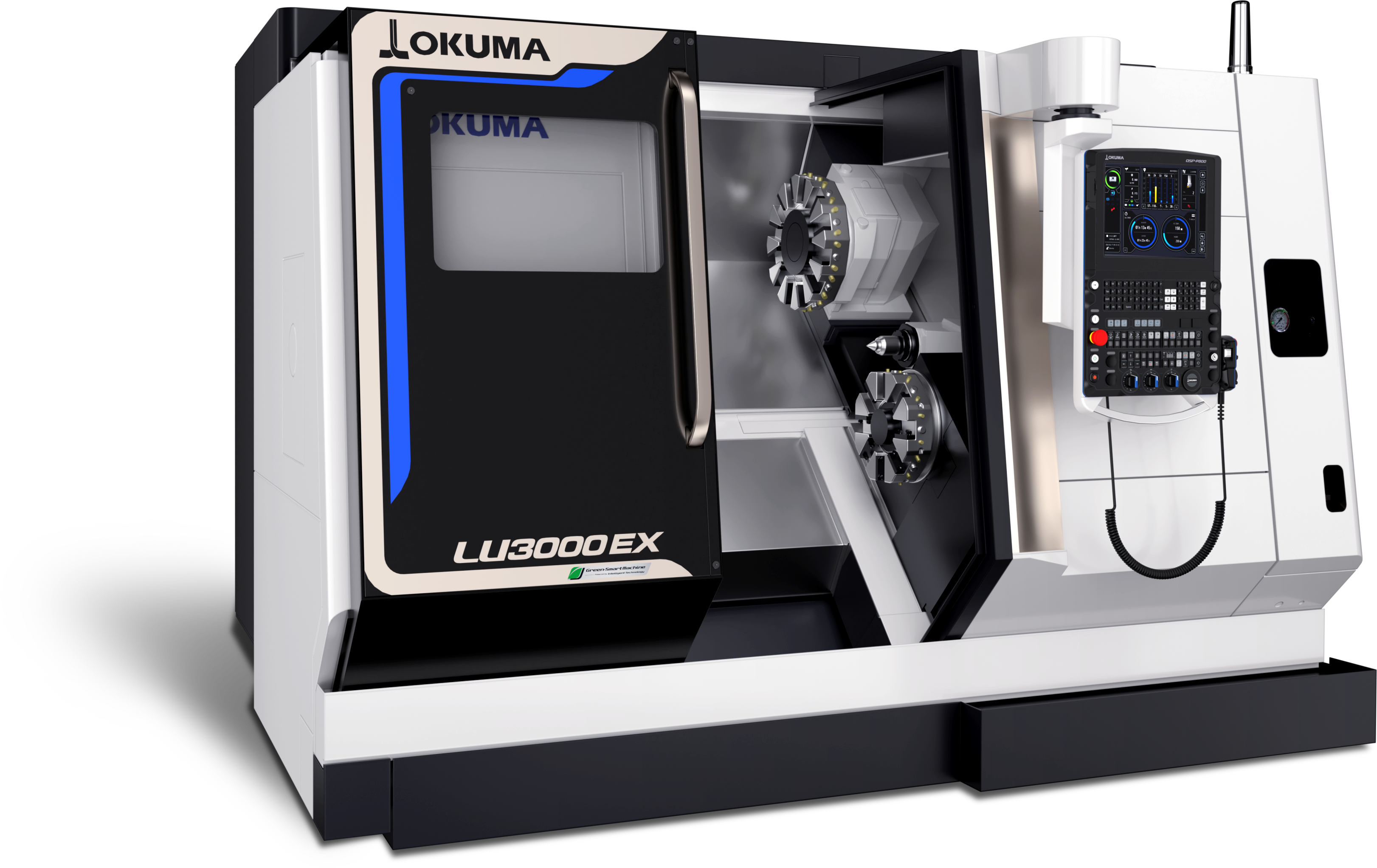

Okuma LU3000 EX | CNC 4-Axis Turning CenterAvailable
Save
Share
Okuma
Japan
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Okuma LU3000 EX is a CNC 4-axis turning center designed for simultaneous dual-tool turning operations on medium-to-large workpieces. It features independent upper (V12) and lower (V8) turrets, enabling flexible, high-throughput machining and complex part production. The machine leverages a 45-degree box bed and full box way construction for rigidity and part accuracy, and supports workpieces up to 410 mm in diameter.
Key Capabilities
- Simultaneous machining with two turrets (upper and lower)
- 4-axis turning operations for process flexibility and reduced cycle times
- Multiple spindle nose and work envelope configurations available
- Equipped with Okuma OSP-P300/P500 control for graphical, user-oriented operation
- High rapid traverse rates for X and Z axes
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Max Turning Diameter | 410 | mm |
| Max Turning Length | 350 [600; 1,000] | mm |
| Spindle Nose Type | A2-6 [A2-8, A2-11] | - |
| Speed Range | 50~5,000 [42~4,200, 30~3,000] | min⁻¹ |
| Standard Power | 22/15 | kW |
| Rapid Traverse X/Z | 25 / 30 | m/min |
