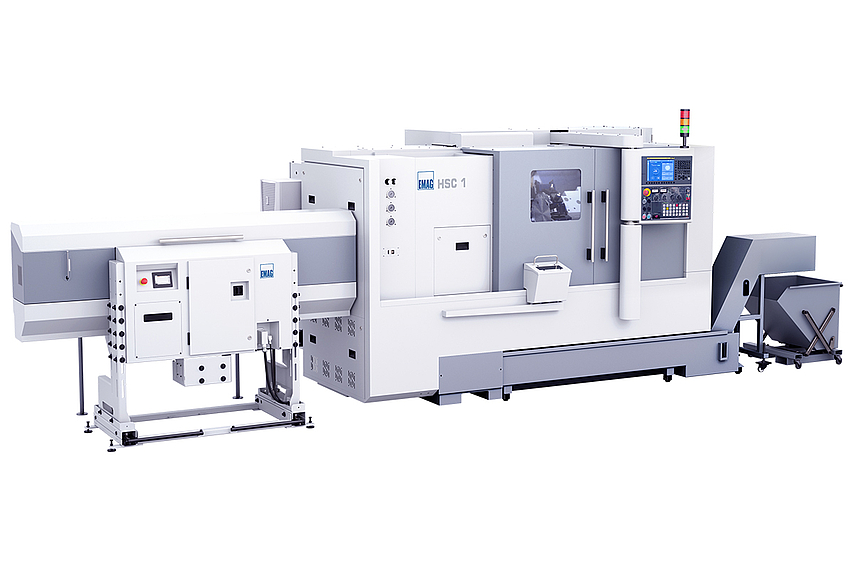

Emag hsc 1 | CNC Shaft Turning and Milling CenterAvailable
Save
Share
Emag
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Emag hsc 1 is a CNC manufacturing center designed for precision turning and milling of shafts and similar rotational workpieces. It integrates multi-axis motion, including dual C-axis functionality, allowing complex operations on shafts up to 375 mm in diameter. This machine is suited for applications requiring the combination of turning, milling, and drilling processes in a single setup.
Key Capabilities
- Multi-axis machining with X, Y, Z, and dual C-axes
- Handles shaft turning and driven tool operations up to 5,000 rpm
- Processes workpieces up to 375 mm in diameter and 570 mm Z-axis travel
- Accommodates bar passage up to 51 mm
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| X-axis travel | 198 | mm |
| Y-axis travel | 50 | mm |
| Z-axis travel | 570 | mm |
| Turning diameter, max. | 375 | mm |
| Max. Bar passage | 51 | mm |
| Main spindle speed, max. | 4,000 | rpm |
| Driven tool speed | 5,000 | rpm |
| Tool power | 4.5 | kW |
| Machine weight approx. | 5,500 | kg |
