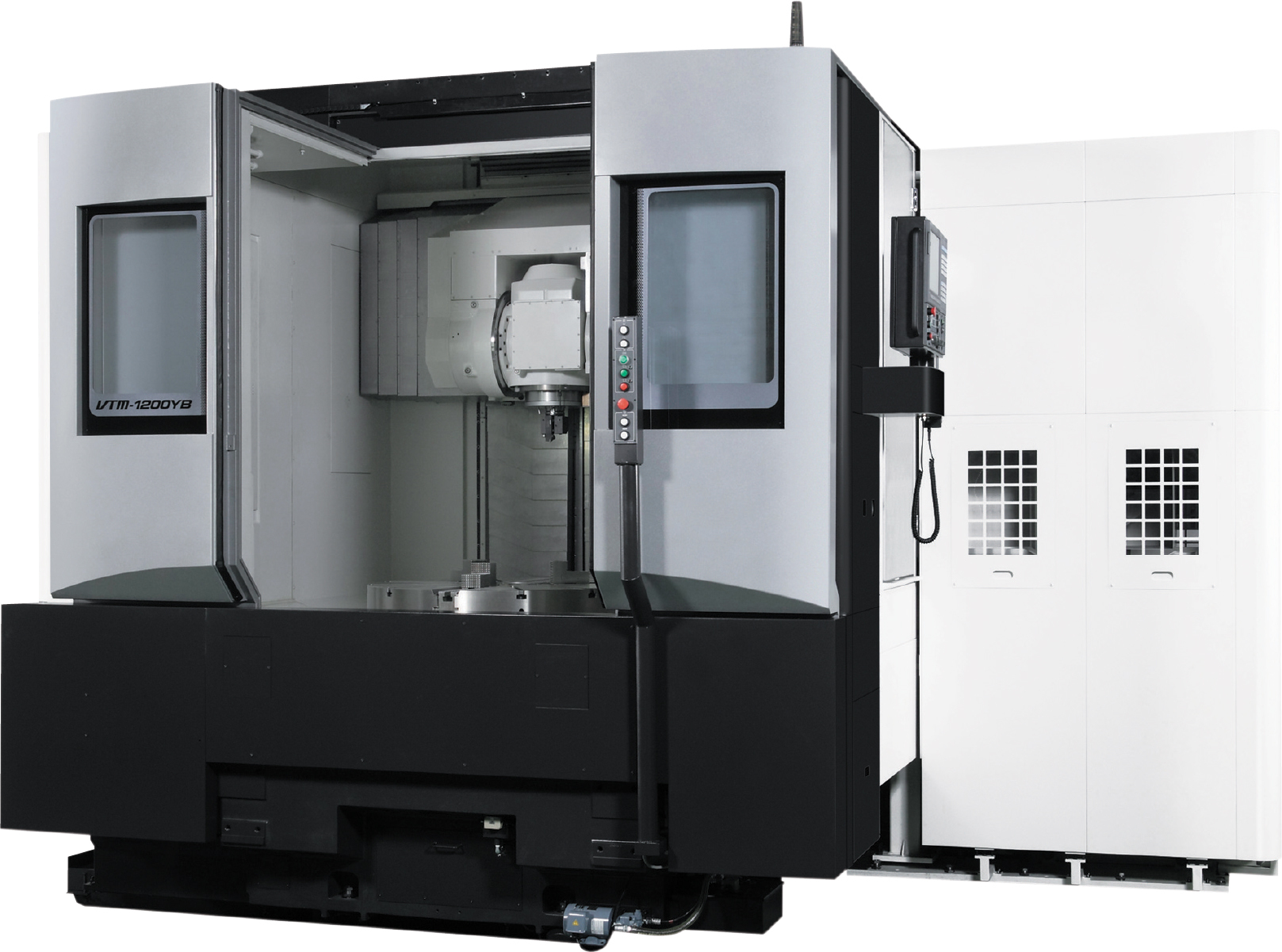

Okuma VTM-1200YB | 5-Axis Vertical Multitasking Turning and Milling CenterAvailable
Save
Share
Okuma
Japan
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Okuma VTM-1200YB integrates turning and 5-axis milling capabilities in a single machine, enabling complete machining of large, complex components without part reorientation. It combines vertical turning with full multi-axis milling—including horizontal, vertical, and angled surface machining—supported by a rigid construction for heavy-duty applications. High-torque spindles and extensive travels make it suitable for producing complex large-diameter parts with precision.
Key Capabilities
- Simultaneous turning and 5-axis milling on large workpieces
- Single-setup machining of vertical, horizontal, and angled surfaces
- Operator control of spindle orientation enables side cutting with end mills
- High-torque spindle and substantial table for heavy cutting and large diameters
- Rigid dual-support spindle bearings for precision in complex part production
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Max Cutting Diameter | 49.21 / 1,200 | in / mm |
| Max Cutting Length (Height) | 42.52 / 1,080 | in / mm |
| X-Axis Travel | 50 / 1,270 | in / mm |
| Y-Axis Travel | 39.37 / 1,000 | in / mm |
| Z-Axis Travel | 42.52 / 1,080 | in / mm |
| Table Spindle Speed | 5–500 | min⁻¹ |
| Milling Spindle Speed | 40–10,000 | min⁻¹ |
| Table Spindle Power | 40/30 (30/22) | hp (kW) |
| Milling Spindle Power | 50/40/30 (3min/30min/cont) | hp/kW |
| Rapid Traverse (X:Y:Z) | 105 / 32 | fpm / m/min |
