Summary

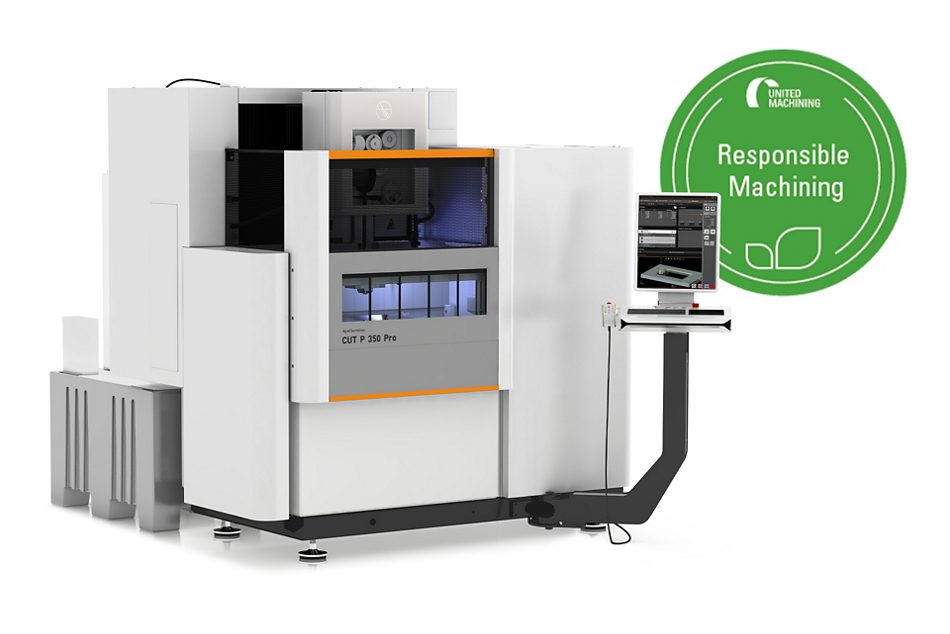

The GF Solutions CUT P 350 Pro is a wire electrical discharge machine (Wire EDM) designed for precision cutting of conductive materials. It delivers fine surface finish and high accuracy through its advanced mechanical and control technologies, including the QUADRAX axis system and intelligent power management. Unique features such as Automatic Slug Welding, Automatic Slug Management, and RFID-enabled wire spool traceability enhance process autonomy and integrate digital monitoring capabilities.

Key Capabilities

• Multi-axis, independently driven QUADRAX motion system maintains accuracy by keeping workpiece stationary
• Advanced power generator supports variable cutting speeds and surface finish requirements
• Automatic Slug Welding (ASW) and Automatic Slug Management (ASM) reduce manual intervention during unattended operation
• Supports wire diameters from 0.15–0.33 mm (optionally 0.07–0.10 mm) for versatile cutting operations
• Handles large workpieces up to 1000 x 550 x 220 mm and 750 kg
• SMART wire spools with RFID for enhanced traceability and process automation
• Process monitoring and workshop management integration via digitized tools
