Summary

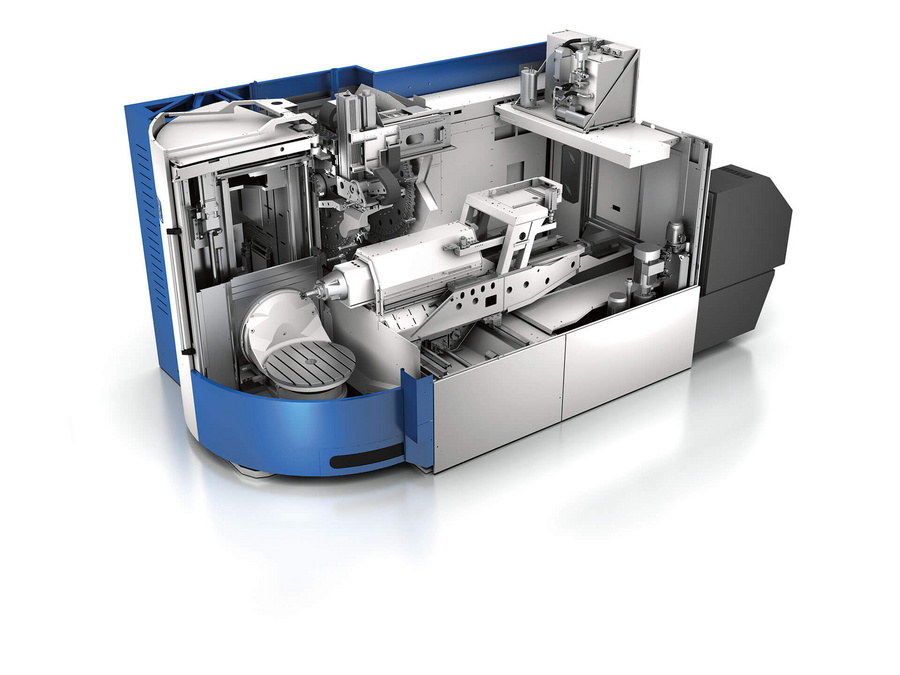

The Grob G750 is a 5-axis universal machining center designed for precision milling of large parts across a wide range of materials. It features a horizontal spindle and a unique tunnel concept that enables extensive Z-axis travel and collision-free machining, even with long tools. The machine supports simultaneous 5-axis interpolation with a swivel range of 230 degrees (A-axis) and 360 degrees (B-axis), ensuring broad flexibility for complex part geometries.

Key Capabilities

• 5-sided and 5-axis simultaneous machining enabled by three linear and two rotary axes
• Horizontal spindle arrangement for optimum chip evacuation and extended Z-travel
• Tunnel work area design allowing large or long parts to be swiveled and machined without collision
• High positioning accuracy suitable for large-part applications
• Flexible table load capacities, accommodating up to 1,500 kg

Key Specifications
