Summary

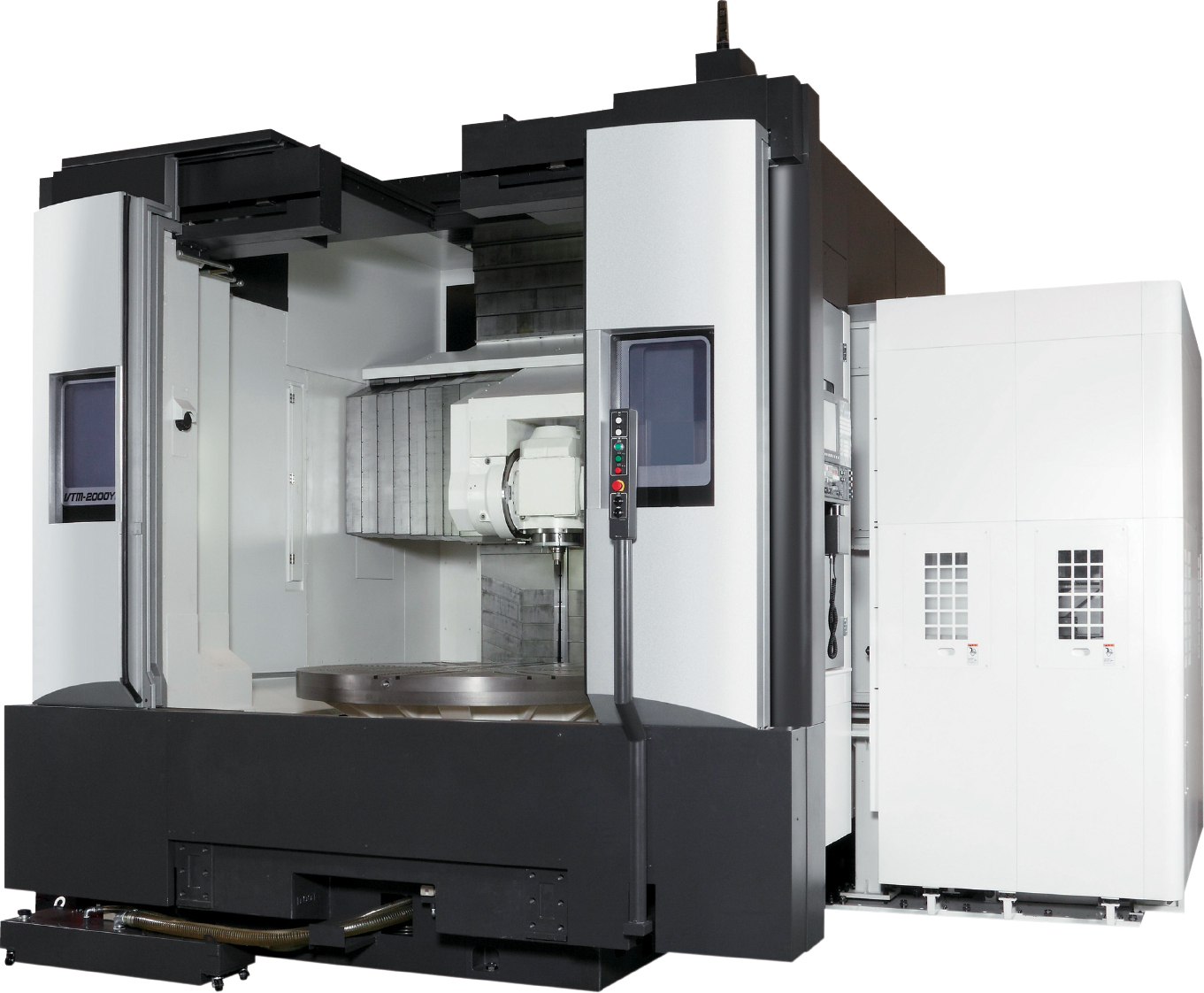

The Okuma VTM-2000YB is a 5-axis vertical turning and machining center designed for complex multi-surface machining of large parts in a single setup. It supports turning, vertical, horizontal, and angled machining with the ability to control spindle direction relative to the workpiece, allowing efficient side cutting with straight end mills. The dual-supported spindle with large diameter roller bearings provides the precision and torque necessary for demanding applications such as large valve bodies.

Key Capabilities

• Enables turning, vertical, horizontal, and angled surface machining in one operation without part reorientation
• Operator-controlled spindle direction supports side cutting with straight end mills
• Suitable for heavy cutting operations on large workpieces
• Spindle supported by large diameter roller bearings for precision

Key Specifications

| Parameter | Value | Unit |

| Max Cutting Diameter | 78.74 | in |

| Max Cutting Length | 55.12 | in |

| X-Axis Travel | 62.99 | in |

| Y-Axis Travel | 62.99 ±31.50 | in |

| Z-Axis Travel | 55.12 | in |

| Spindle Power (30 min/cont) | 40/30 | hp |

| Spindle Speed | 4–300 [4–200] | min⁻¹ |
