Summary

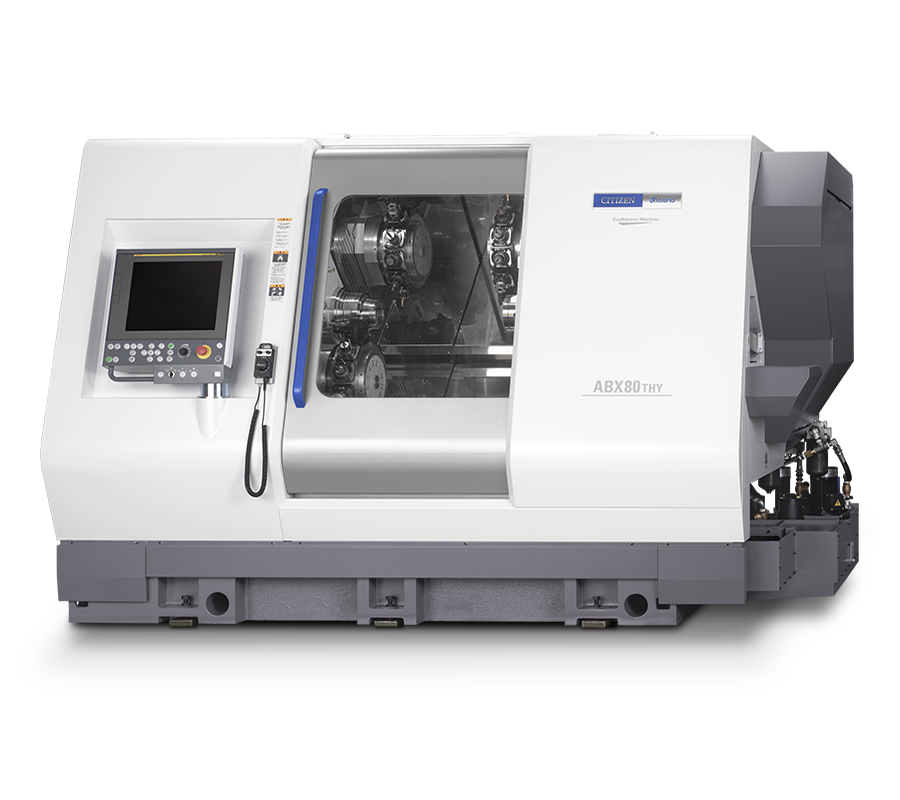

The Miyano ABX-80THY3 is a CNC turning center designed for complex bar and chucked work, featuring three turrets with Y-axis capability to enable advanced simultaneous machining operations. It is equipped with φ 80 mm and φ 65 mm front spindles and a φ 65 mm back spindle, supporting a wide range of part geometries and machining processes. The large touchscreen panel and enhanced operability further support production efficiency and ease of use.

Key Capabilities

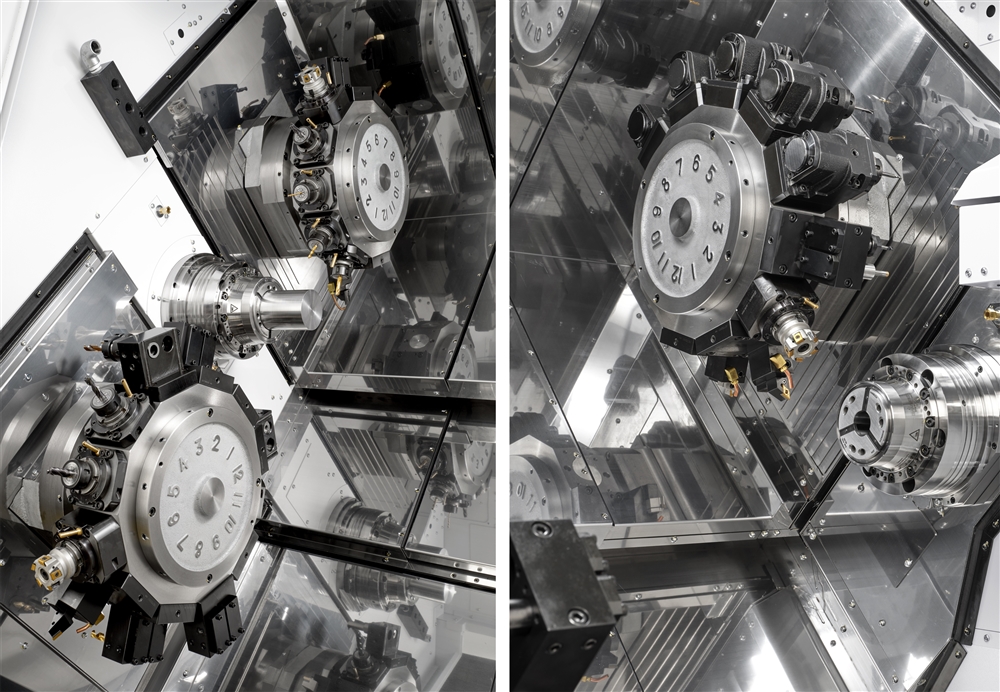

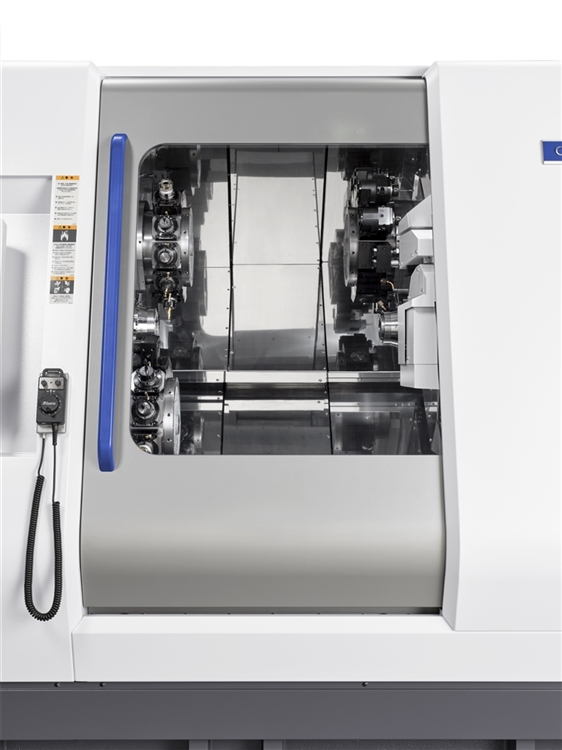

• Three turrets, each with Y-axis, enabling multi-tool simultaneous machining
• Maximum bar work machining diameter of 80 mm (SP1), 65 mm (SP2)
• Accommodates both bar and chucked work
• High spindle speed ranges (up to 5,000 min-1)
• Up to 12 revolving tools per turret for advanced milling and drilling
• 19-inch touchscreen panel for operator interface

Key Specifications

| Parameter | Value | Unit |

| Maximum Machining Diameter of Bar Work SP1 | 80 | mm |

| Maximum Machining Diameter of Bar Work SP2 | 65 | mm |

| Spindle Motor SP1/SP2 (30min./Cont.) | 18.5/15 | kW |

| Spindle Speed Range SP1 | 4,000 | min-1 |

| Spindle Speed Range SP2 | 5,000 | min-1 |

| Distance Between Spindle End Faces | 1031 | mm |

| Maximum Number of Revolving Tools per Turret | 12 | |

| Machine Weight | 11,300 | kg |

| Floor Space | 3,260×2,200 | mm |
