Summary

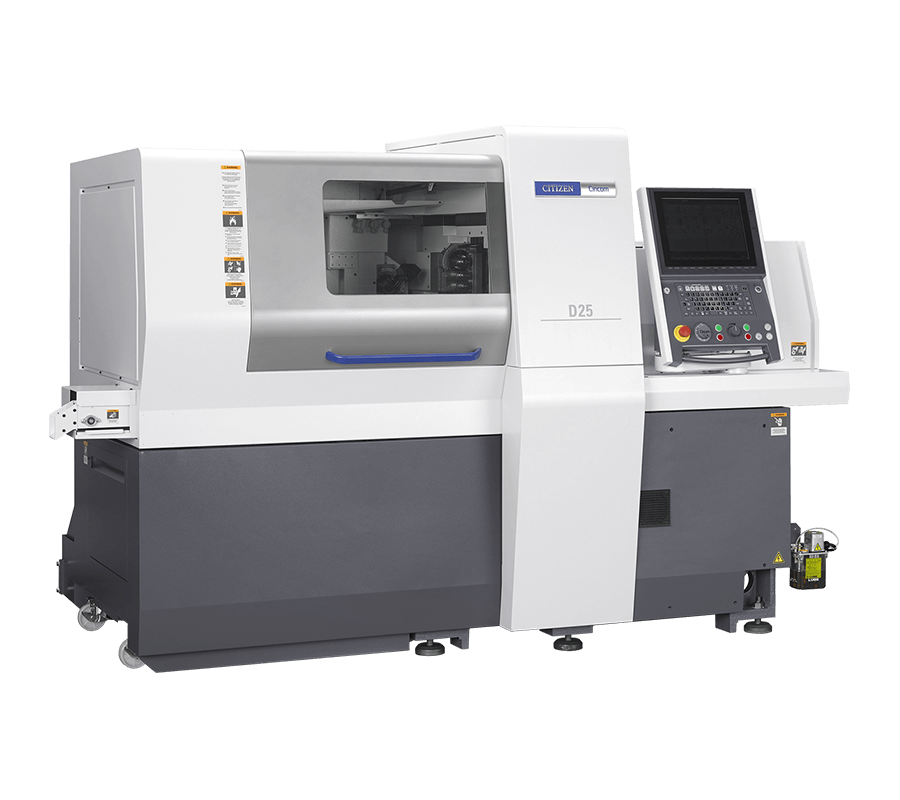

The Cincom D25VII is a sliding headstock CNC Swiss-type lathe designed for high-precision turning, milling, and complex multi-axis machining of bar stock up to 25mm in diameter. It features a double gang tool post with integrated B axis function, supporting simultaneous machining with up to 59 tools for enhanced productivity and reduced non-cutting time. This configuration allows both guide bushing and guide-bushing-less operation modes and supports combined front and rear machining.

Key Capabilities

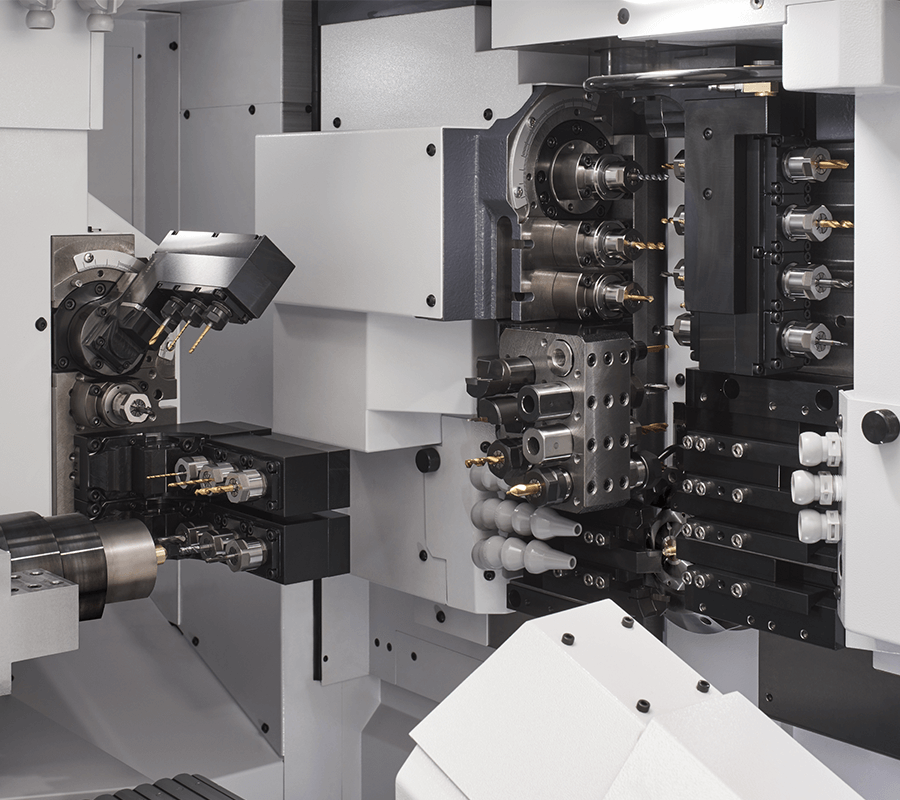

• Simultaneous machining with dual gang tool posts
• B axis capability for multi-axis contouring
• Accommodates up to 59 tools on the machine
• Switchable operation between guide bushing and guide-bushing-less modes
• Machining on both main and back spindles, including drilling, tapping, and milling

Key Specifications

| Parameter | Value | Unit |

| Maximum machining diameter | 25 | mm |

| Maximum machining length (Guide-bushing) | 250 | mm |

| Maximum spindle speed (main/back) | 10,000 | min-1 |

| Number of tools mountable | 59 | |

| Rapid feed rate (axes other than Z2) | 32 | m/min |
