Summary

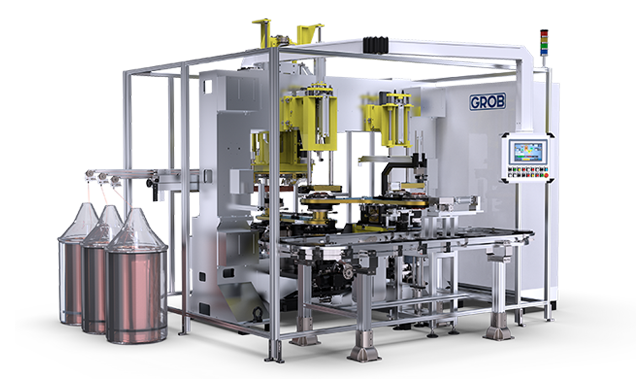

The machine performs template-based wave winding and automatic coil insertion for stators used in induction alternators. Its core function integrates winding, insertion, and intermediate forming in a single workflow for the high-efficiency production of stator assemblies. This system is designed for high slot fill factors to enable efficient alternator stator manufacturing.

Key Capabilities

• Combines winding, coil insertion, and intermediate forming in a unified process
• Supports production of highly efficient stators for induction alternators
• Suitable for distributed winding stators and linear winding stators
• Automated operation for alternator stator manufacturing

Key Specifications

| Parameter | Value | Unit |
