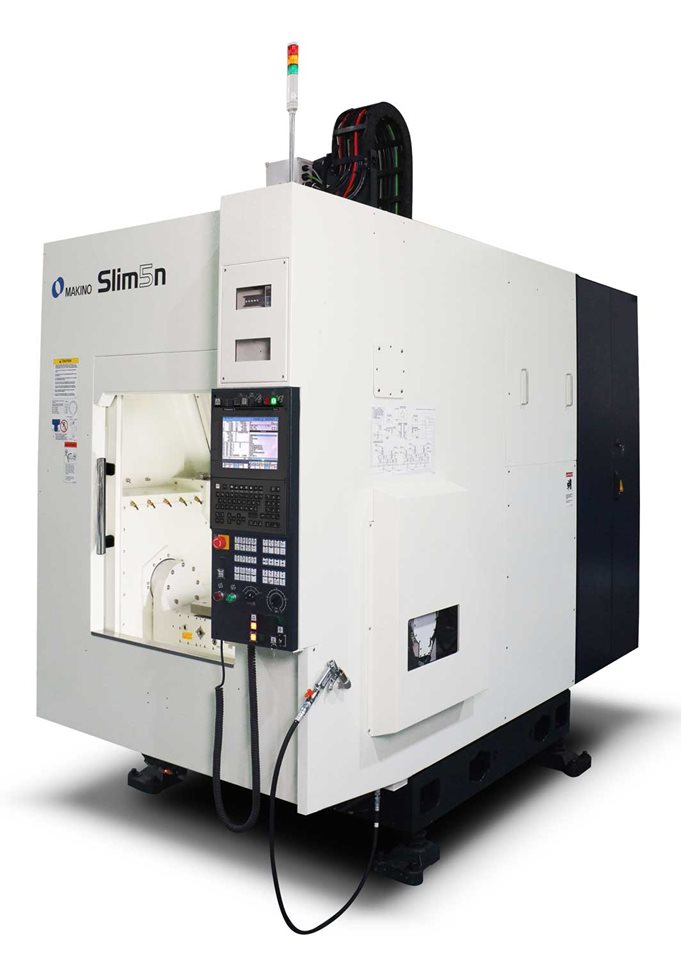

Makino Slim5n 4+1 | 4+1 Axis Vertical Machining CenterAvailable
Save
Share
Makino
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Makino Slim5n 4+1 is a vertical machining center that enables 4+1 axis positioning for milling, drilling, and tapping operations. It is engineered for production environments and supports part machining across a range of materials, offering both 16,000 rpm and 8,000 rpm spindle options compatible with HSK-A50 tooling. Distinctive features include a closed-frame structure for rigidity, advanced chip management, and built-in automation compatibility.
Key Capabilities
- 4+1 axis machining for indexed multi-sided part operations
- Milling, drilling, and tapping in a single setup
- HSK-A50 spindle interface with two selectable spindle speed options
- Automated chip evacuation with shower/nozzle coolant and lift-up chip conveyor
- Auto door and robot interface option for automation integration
- 26-tool automatic tool changer with direct pick system
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Table Size | ø 550 x 300 | mm |
| X Travel | 710 | mm |
| Y Travel | 400 | mm |
| Z Travel | 410 | mm |
| Max Workpiece Size | ø 800 x 435 (with limitations) | mm |
| Max Payload | 600 | kg |
| Spindle Speed | 16,000 (optional 8,000) | rpm |
| Spindle Taper | HSK-A50 | - |
| Rapid Traverse | X: 60,000 / Y: 50,000 / Z: 60,000 | mm/min |
| Cutting Feedrate | 1–20,000 | mm/min |
| ATC Capacity | 26 | tools |
