INDEX-Traub Group INDEX C200 | Multi-Turret CNC Turning CenterAvailable
Save
Share
INDEX-Traub Group
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary

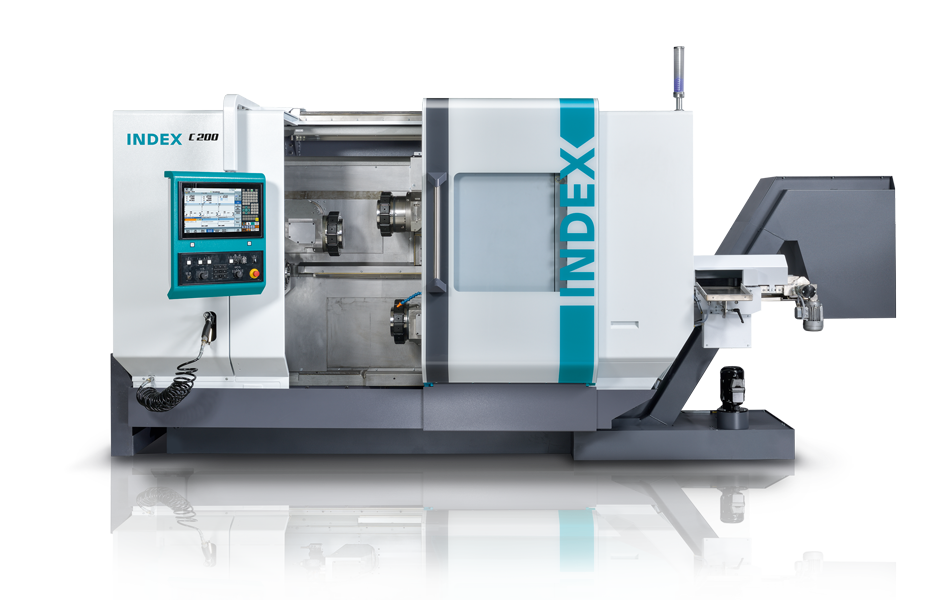

The INDEX C200 is a multi-turret CNC turning center designed for rapid, high-volume production of bar-turned parts. It is equipped for complete machining operations with multiple motor spindles and tool turrets, supporting complex part geometries from bar stock. Key features include a high-dynamics SingleSlide guide system, large working area, and integrated automation options like the movable iXcenter robotic cell.
Key Capabilities
- Complete machining of bar stock parts with up to three tool turrets

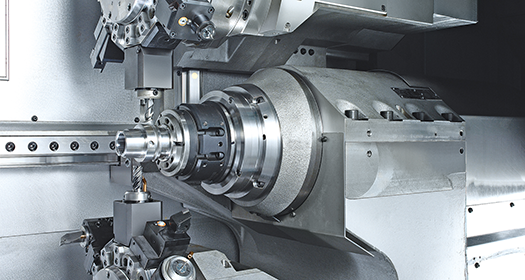

- Simultaneous dual-spindle turning with identically designed motor spindles
- Rapid traverse rates up to 60 m/min and spindle acceleration up to 1g

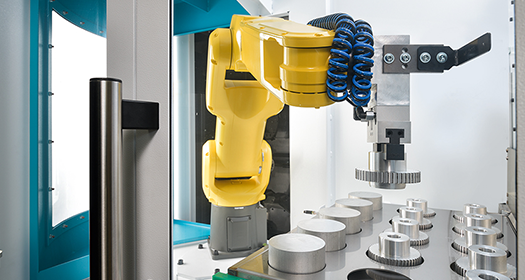

- Integrated automation interface with movable robotic cell for parts handling

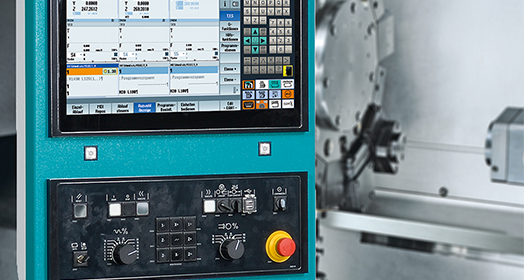

- Siemens S840D sl or FANUC 31i-B CNC control systems
- C-axis with 0.001° resolution on main and counter spindles
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Bar capacity (main/counter) | 65 / 90 | mm |
| Max spindle speed | 6,000 / 3,500 | rpm |
| Max turning length | 400 | mm |
| Max tool turret speed | 8,000 | rpm |
| Tool turret stations | VDI25: 14 / VDI30: 10 | |
| Max spindle power (main) | 32 / 40 | kW |
| Max spindle torque (main) | 170 / 207 | Nm |
| Max parts handling weight | 3.5 | kg |
| Machine weight | 9,000 | kg |
| Dimensions (LxWxH, long ver.) | 6,910 x 2,092 x 2,490 | mm |
| Control systems | Siemens S840D sl / FANUC 31i-B |
