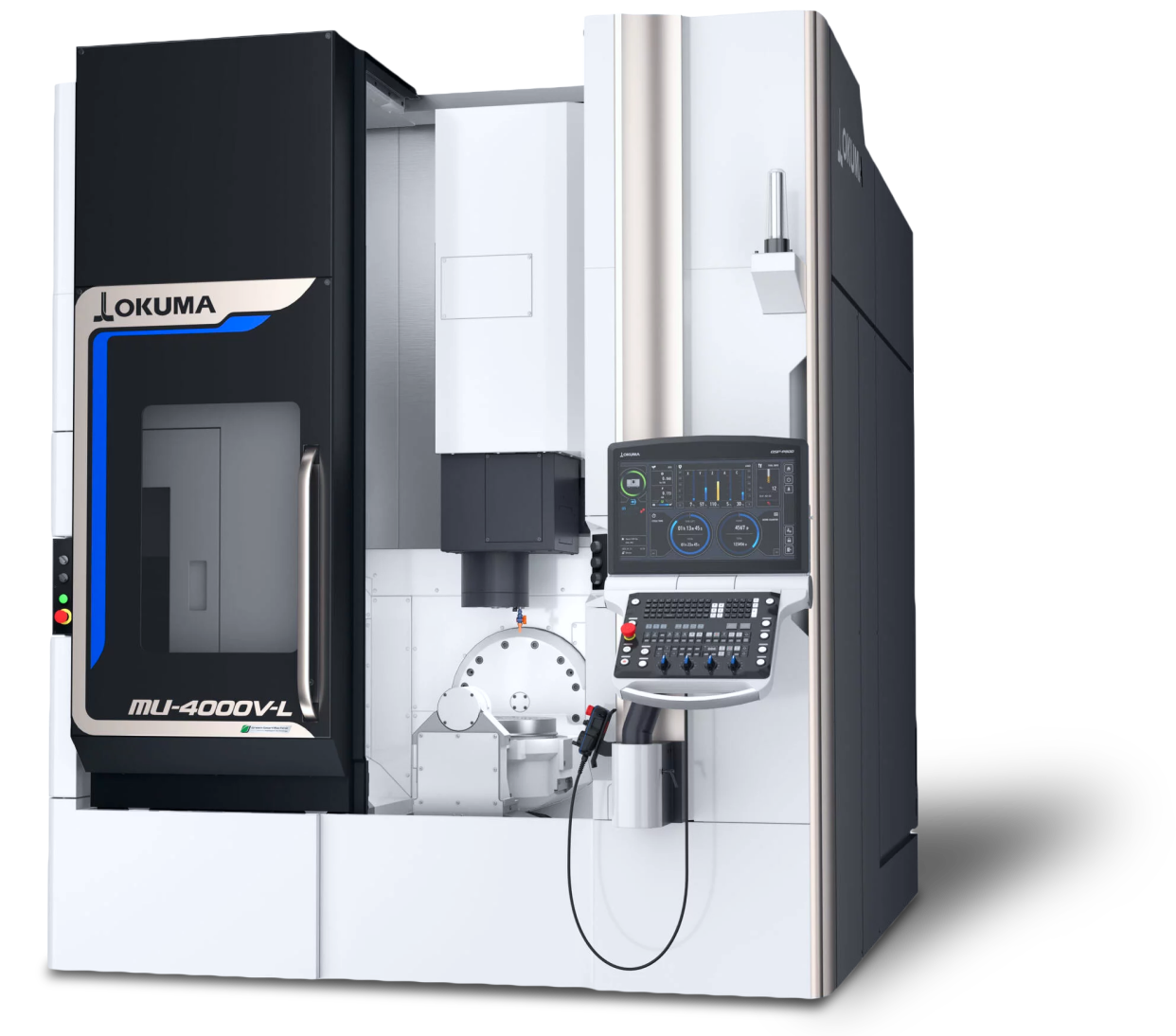

Okuma MU-4000V | 5-Axis Vertical Machining Center with Trunnion TableAvailable
Save
Share
Okuma
Japan
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Okuma MU-4000V is designed for simultaneous 5-axis milling and turning applications, enabling process-intensive machining of complex parts in a single setup. Its trunnion table configuration allows for multi-sided machining and contouring, well-suited for applications such as die mold and aerospace components. The machine integrates high-speed cutting capabilities, large tool capacity, and an Okuma OSP-P500 control system.
Key Capabilities
- Simultaneous 5-axis machining and turning for complex shapes
- One-chuck multi-sided machining enabled by trunnion table
- High-speed spindle options up to 25,000 min⁻¹
- Large machining area for increased part capacity
- Flexible tool magazine with up to 64-tool chain or matrix options
- Supports automation with ergonomic and automation-friendly design
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Max Machining Volume | X: 29.13 / Y: 18.11 / Z: 18.11 | in |
| Table Size | Ø15.75 | in |
| Spindle Speed (max option) | 25,000 | min⁻¹ |
| Spindle Motor Power | 30/25 | hp |
| Rapid Traverse X-Y-Z | 1,969 | ipm |
| Magazine Capacity | up to 64-tool (matrix) | tools |
