Summary

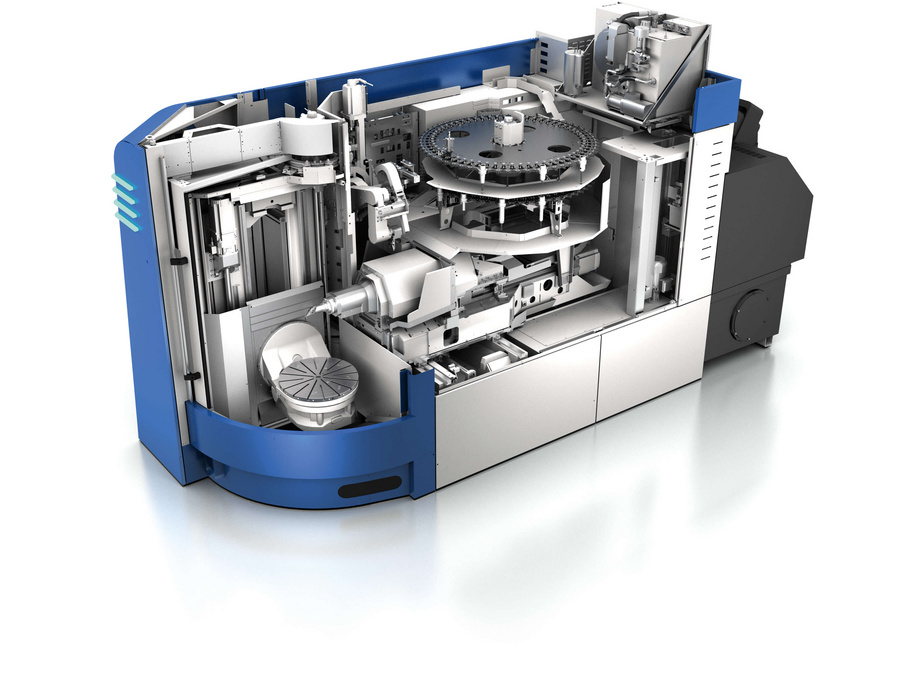

The Grob G350T is a 5-axis mill-turn machining center designed for complete machining of smaller parts in a single setup. It combines simultaneous 5-axis milling and turning operations, supporting complex geometries and flexible part orientations. Notable features include a horizontal spindle for extended Z-axis travel, high component stability via minimized axis distances, and a tunnel design enabling collision-free machining of large components, even with long tools.

Key Capabilities

• Simultaneous 5-axis milling and turning for complete machining
• Horizontal spindle supports long Z-travel and optimal chip evacuation
• Swivel range of 230° (A-axis) and 360° (B-axis) expands workpiece accessibility
• Tunnel concept permits machining of large or elongated components with long tools
• 5-sided machining and GROB TRAORI turning within one setup

Key Specifications

| Parameter | Value | Unit |

| Working travels (X/Y/Z) | 600/855/750 | mm |

| Interference diameter | 620 | mm |

| Table diameter | 570 | mm |

| Table load (with/without pallet) | 270/350 | kg |

| Positioning accuracy (X/Y/Z) | 0.006 | mm |

| Max. axis speeds (X/Y/Z) | 70/45/90 | m/min |

| Chip-to-chip time | 2.7 | s |
