Summary

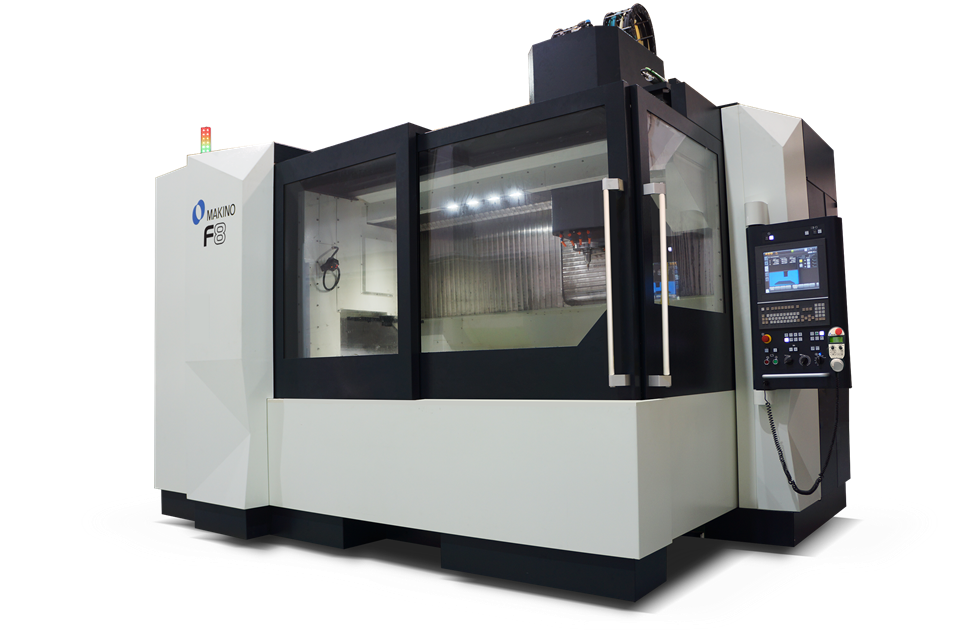

The Makino F8 is a 3-axis vertical machining center engineered for high-precision milling of large parts and complex die/mold components. Its core function is to execute heavy-duty and high-speed machining operations with tight tolerance control, leveraging a robust platform and advanced servo systems. The machine supports substantial workpiece sizes and offers flexible spindle and tooling configurations for diverse production and toolroom environments.

Key Capabilities

• 3-axis simultaneous CNC milling for roughing and finishing of large or complex geometries
• Configurable spindle selections, including up to 50 hp, 10,000 RPM CAT50 or optional 20,000 RPM HSK-A63
• Large work envelope up to 1,550 x 800 x 550 mm and 2,500 kg payload for big die/mold and medical parts
• Core-cooled ballscrews and scale feedback for thermal stability and sustained accuracy
• 30-tool automatic tool changer enables multi-step operations and reduced set-up times
• Advanced servo control (SGI.5) for reduced cycle times on complex surfaces
• Makino Professional 6 control with graphical touch interface for efficient NC operation

Key Specifications

*Optional configuration
