Citizen Machinery Miyano BNE-51MYY | Twin-Spindle, Twin-Turret CNC Turning Center with Y-AxisAvailable
Save
Share
Citizen Machinery
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary

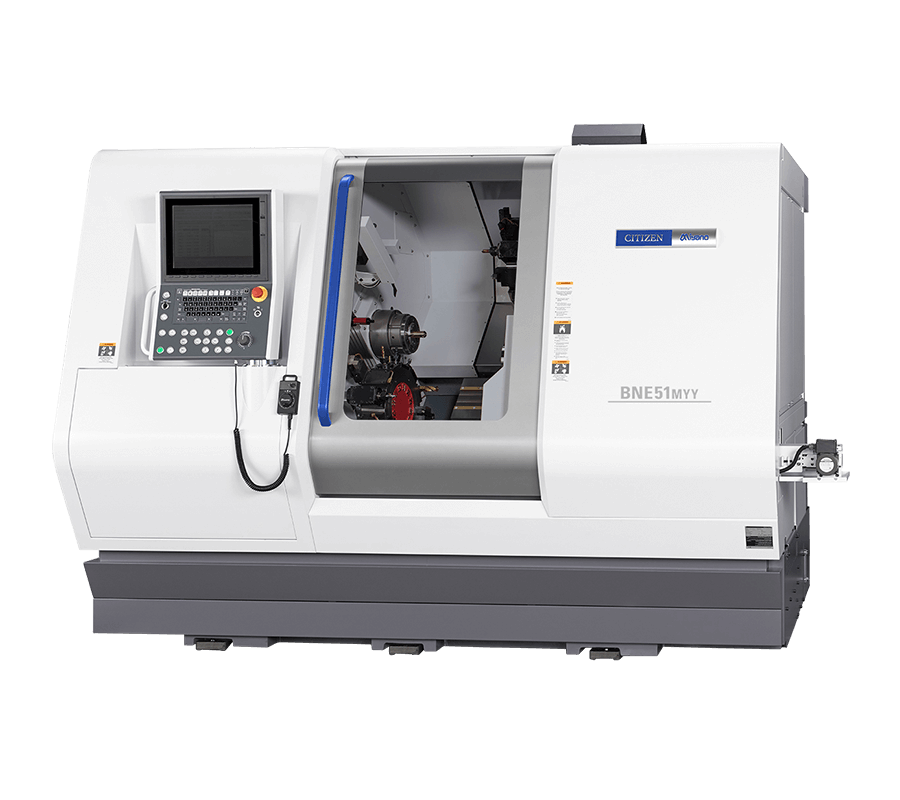

The Miyano BNE-51MYY is a CNC turning center designed for high-efficiency production of complex turned parts through simultaneous machining. Its twin 12-station Y-axis turrets and dual spindles enable concurrent left/right and up/down operations, optimizing process allocation beyond conventional balance limitations. Features include a chip-clearing slide structure, rectangular lapped slides, and an HMI panel with a 15-inch touch display.
Key Capabilities

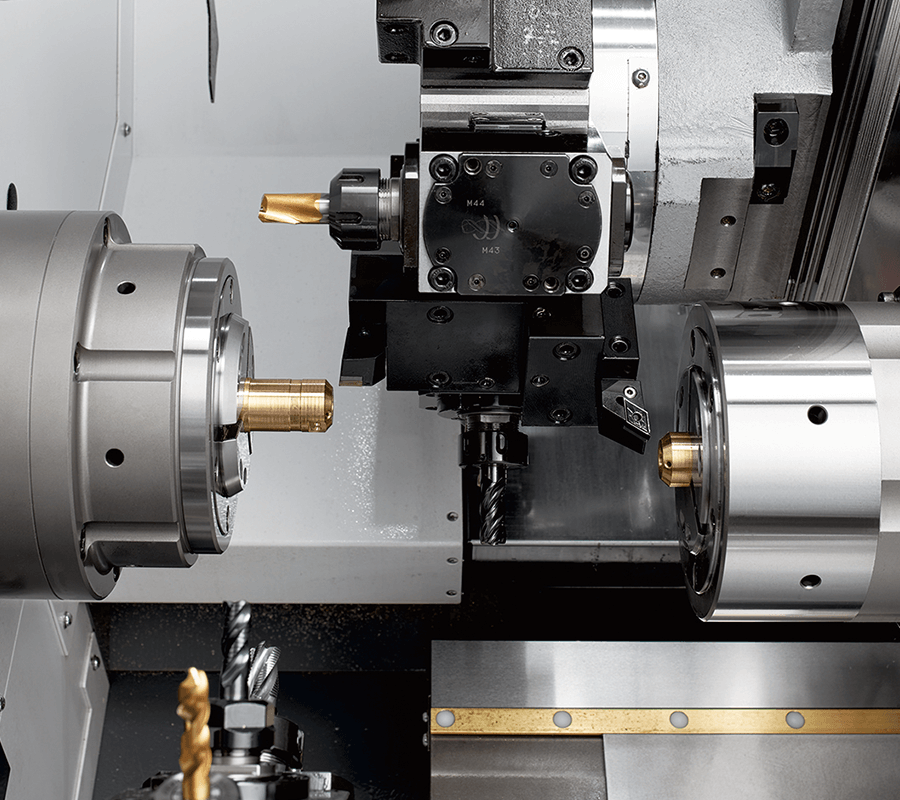

- Simultaneous machining on two spindles with dual 12-station Y-axis turrets
- Superimposed and mirrored machining operations to reduce cycle time
- Supports both collet and power chuck workholding options
- Accommodates up to 24 rotary tools for versatile milling and drilling
- Rapid axis feed rates and integrated chip management

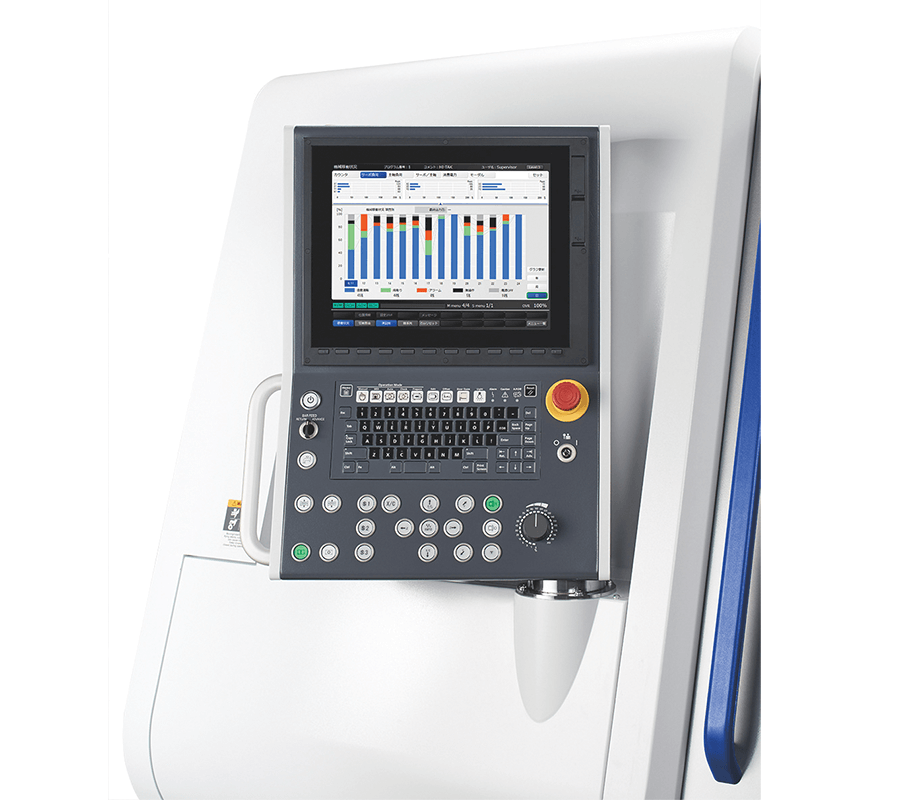

- User interface includes a 15-inch touch-panel HMI
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Max. machining length | 195 | mm |
| Standard machining diameter | 51 | mm |
| Number of spindles | 2 | |
| Spindle speed | 5000 | min-1 |
| Number of tool posts (turrets) | 2 | |
| Tool station count per turret | 12 | |
| Rotary tools installed (max) | 24 | |
| Rotary tool speed | 6000 | min-1 |
| Feed rate (X1,Z1,X3,Z3) | 20 | m/min |
| Feed rate (X2,Z2) | 18 | m/min |
| Feed rate (Y1,Y2) | 12 | m/min |
| Machine weight | 8080 | kg |
