Summary

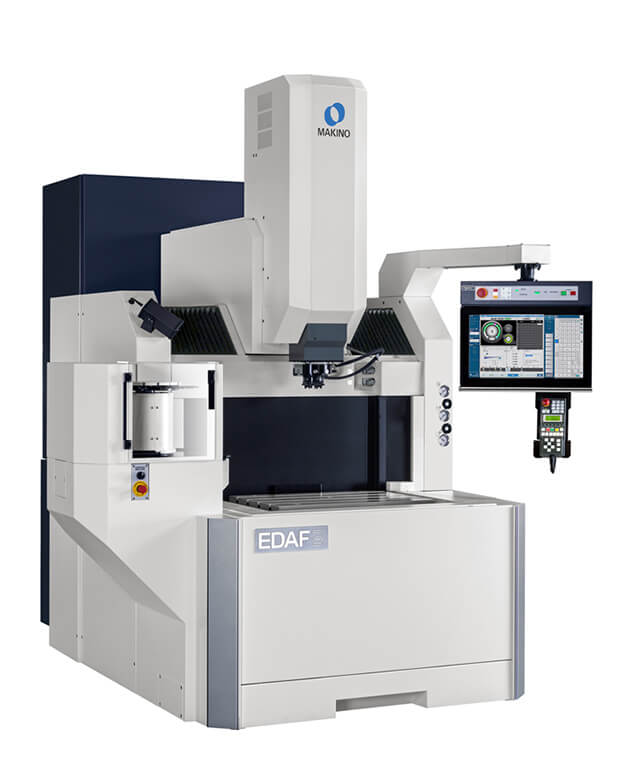

The Makino EDAF3 is a CNC sinker electrical discharge machine designed for high-precision machining of complex geometries by eroding conductive materials using controlled electrical discharges. It features a programmable three-sided drop-tank system for enhanced operator access and simplified integration of automatic tool changers and automation, supporting extended periods of unattended operation. The machine incorporates thermal stabilization systems and stationary worktable design options for improved machining accuracy and configurable workpiece depth.

Key Capabilities

• Programmable three-sided drop-tank system for unrestricted work tank access
• Stationary worktable with configurable table-down options for increased work tank depth
• Hyper-i CNC control system with advanced discharge technologies (HyperCut, SuperSpark™ IV, ArcFree)
• Integral thermal cooling of Y- and Z-axis cast components for thermal stability
• Built-in dielectric reservoir within the base casting for minimized footprint
• Standard fire extinguisher and UV sensor systems for machine safety during unattended operation

Key Specifications
