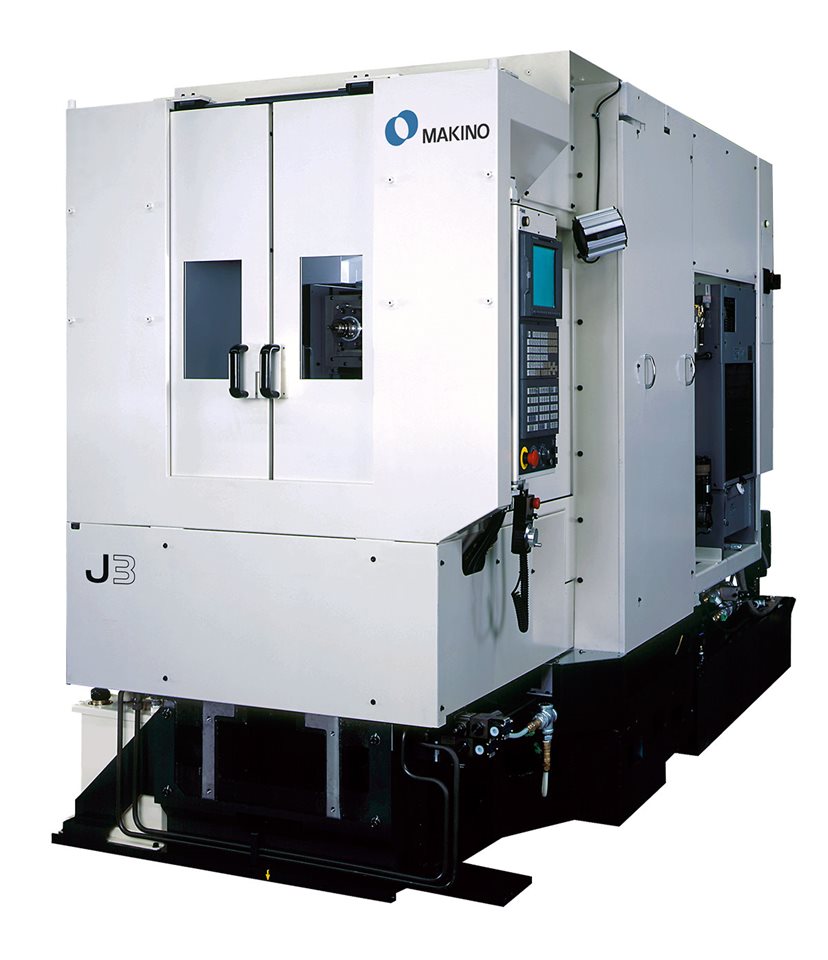

Makino J3 | 4-Axis Horizontal Machining CenterAvailable
Save
Share
Makino
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Makino J3 is a 4-axis horizontal machining center engineered for high-volume CNC machining of small workpieces. It utilizes a stacked axis design and single table configuration to enable efficient chip evacuation and adaptable machine stroke options. The machine supports fast installation with true three-point leveling and offers configuration flexibility during pre-sales engineering.
Key Capabilities
- 4-axis CNC machining with stacked axis design
- Designed for small workpiece machining in high-volume production
- Single table layout for straightforward part loading
- Efficient chip removal from the machining area
- Customizable axes strokes and configurations
- Rapid traverse and high cutting feedrate for improved cycle times
- Supports quick installation through three-point leveling
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Pallet Size | Ø400 (opt. 400 x 400) | mm |
| X Axis Travel | 400 (opt. 630) | mm |
| Y Axis Travel | 400 (opt. 550) | mm |
| Z Axis Travel | 400 (opt. 550) | mm |
| Spindle Speed | 16000 (opt. 12000, 8000) | rpm |
| Spindle Taper | HSK-A50 (opt. HSK-A63) | |
| Rapid Traverse | 65,000 | mm/min |
| Cutting Feedrate | 50,000 | mm/min |
| Maximum Workpiece Size | Ø710 x 580 | mm |
| Maximum Tool Diameter | 80 (opt. 125) | mm |
| Maximum Tool Weight | 8 | kg |
| ATC Capacity | 15 (opt. 28, 30) | tools |
