Summary

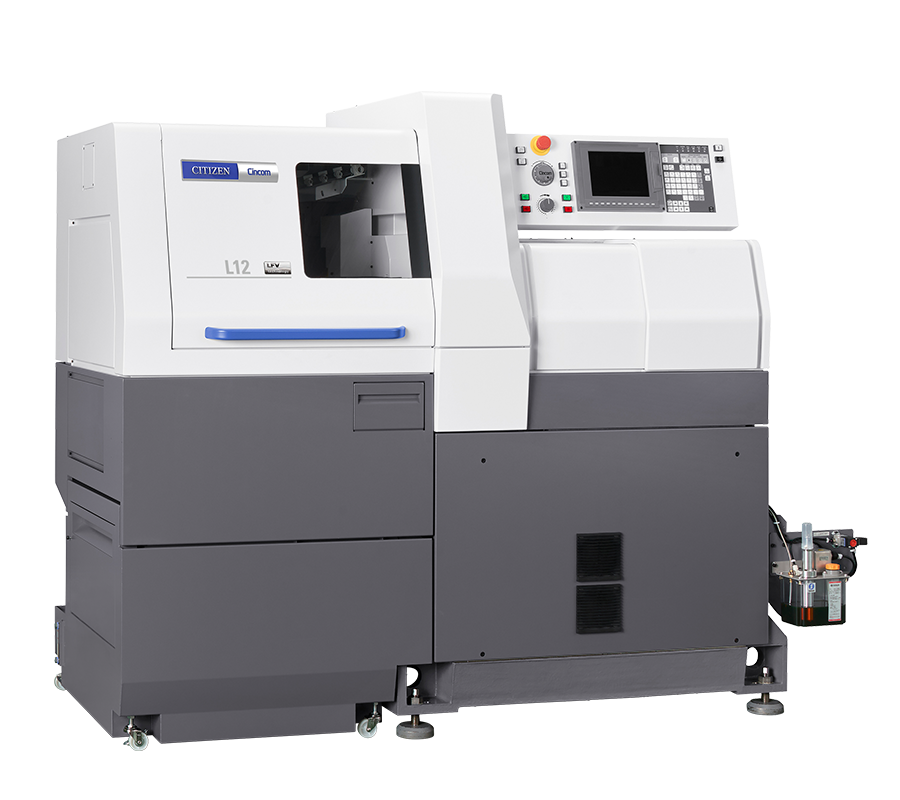

The Citizen Machinery Cincom L12X is a sliding headstock CNC Swiss-type automatic lathe designed for multi-axis, high-precision machining of small-diameter workpieces. It supports complex front and back operations with Y2 axis control on the back spindle and accommodates up to 38 tools for synchronous machining. Notable technical features include adjustable-angle end-face spindles for slanted hole drilling, patented LFV swarf control modes, and high spindle speeds for both main and back operations.

Key Capabilities

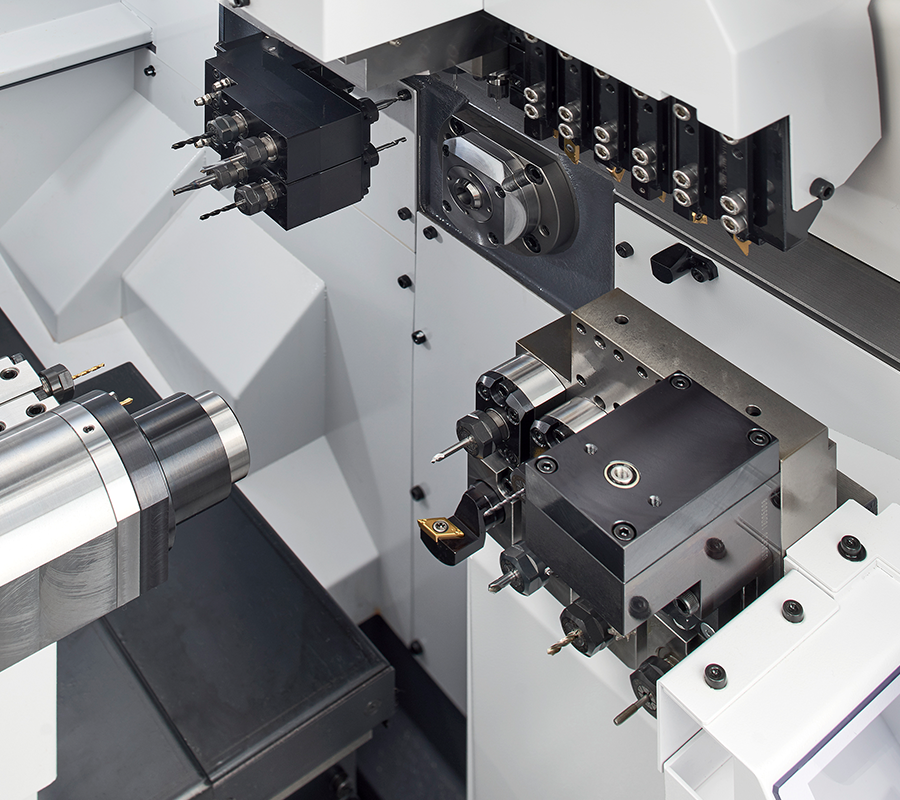

• Simultaneous multi-axis machining with Y2 axis for advanced back spindle operations

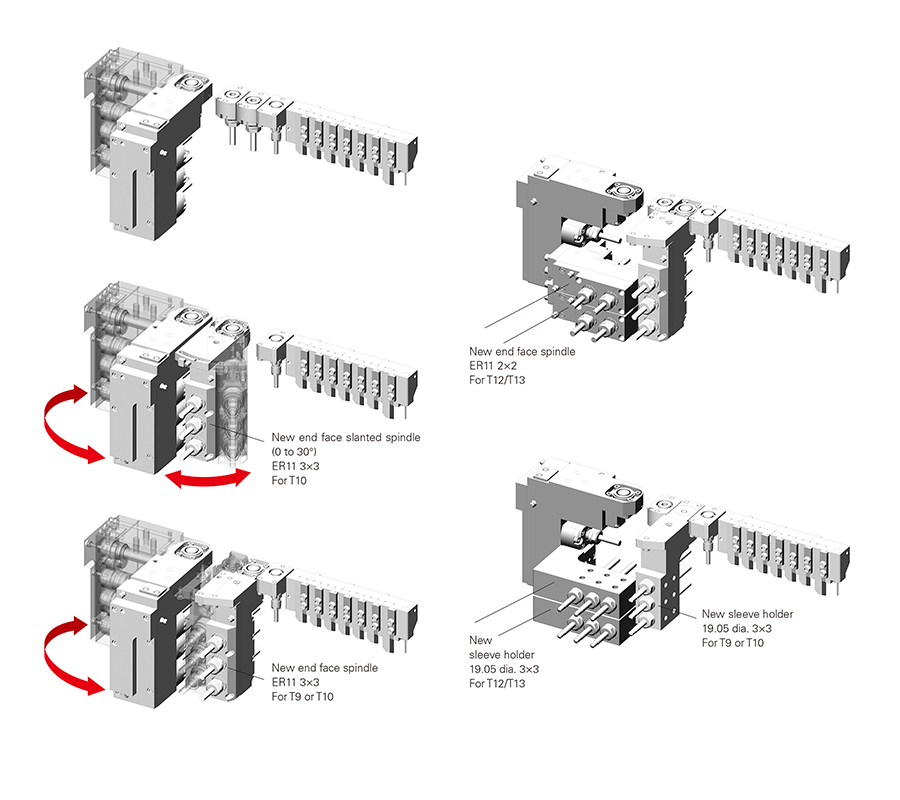

• Supports slanted hole drilling through adjustable-angle end-face spindle tooling
• Patented LFV (Low Frequency Vibration) swarf control with three selectable modes
• High spindle speeds: up to 15,000 min⁻¹ main, 12,000 min⁻¹ back spindle
• Tooling capacity of up to 38 positions, with flexible layouts for various machining requirements
• Compact footprint with rapid traverse rates for all axes
