Summary

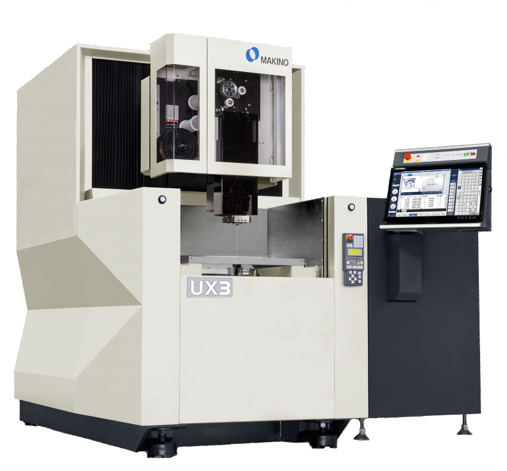

The Makino UX3 is a wire electrical discharge machine designed for precise contour cutting of electrically conductive materials by means of a continuously fed wire electrode. It features a stationary worktable, jet-less threading, and integrated control systems optimized for low wire consumption and operational efficiency. Key differentiators include its Hyper-i control interface, versatile machining condition library, and tool-less wire guide indexing for simplified maintenance.

Key Capabilities

• Wire cutting of conductive workpieces using EDM process
• Stationary worktable design maintains repeatable accuracy regardless of part size or weight
• Hyper-i control interface with touchscreen operation and onboard digital manuals
• Guide exchange system with ±5μm repeatability and jet-less wire threading
• Optimized for multiple wire diameters, including up to 0.300 mm
• Tool-less indexing of Energizer Contact Plates
• Pneumatic front door for improved access to the work tank
• Integrated dielectric reservoir for reduced footprint and enhanced thermal stability

Key Specifications
