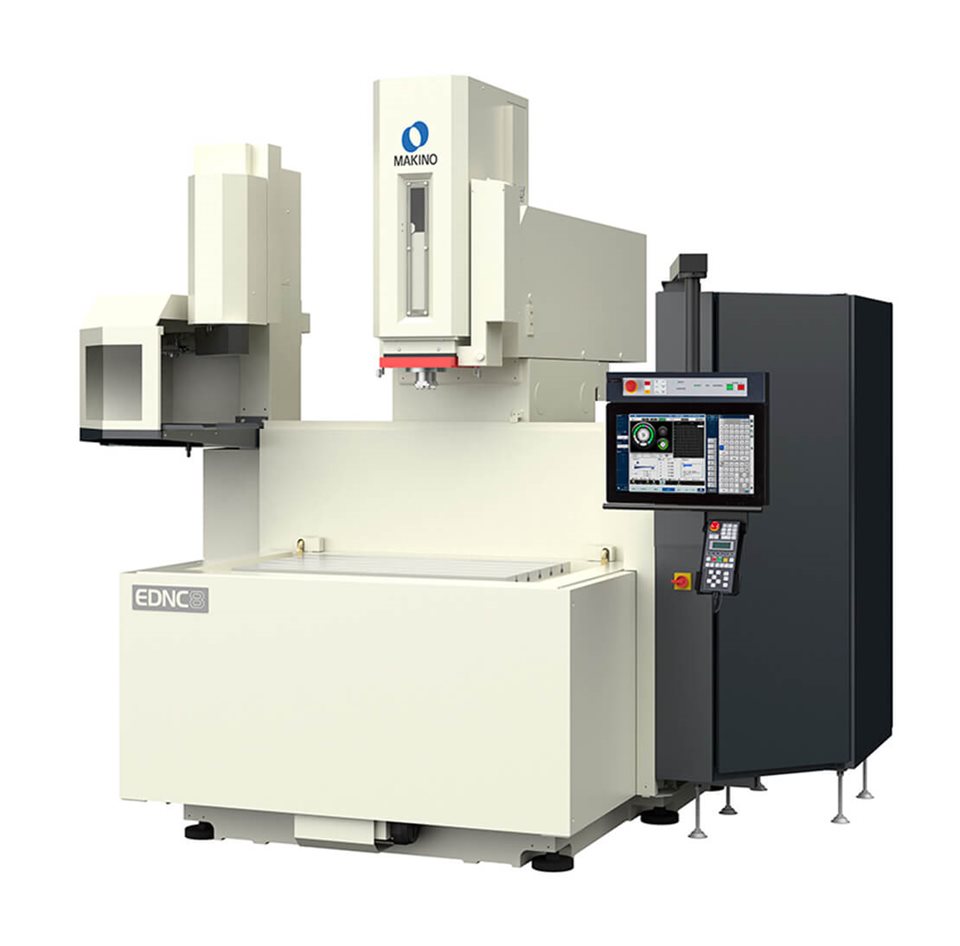

Makino EDNC8 | CNC Sinker Electrical Discharge Machine (EDM)Available
Save
Share
Makino
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Makino EDNC8 is a CNC sinker electrical discharge machine designed for precision cavity and component machining using pulsed electrical discharge in a dielectric medium. It features expanded X/Y/Z travel and large workpiece capacity for applications requiring high accuracy and versatile electrode configuration. Key differentiators include an integrated high-speed Z-axis option for rapid jump motion, liquid core-cooled ballscrew, and user-centric Hyper-i control with on-board digital support and advanced EDM technologies.
Key Capabilities
- Programmable three-axis CNC motion with stationary worktable for enhanced accuracy
- High-speed Z-axis jump motion (up to 20 m/min, 1.5G acceleration) with liquid core-cooled ballscrew (optional)
- Configurable automatic tool changer (ATC) supporting up to 32 tools
- Enhanced thermal stability through integrated dielectric reservoir
- Multiple work tank configurations, including wide-tank for oversized parts
- Hyper-i control system with integrated digital manuals and advanced EDM cut strategies
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| X Travel | 800 | mm |
| Y Travel | 500 | mm |
| Z Travel (Standard/Option) | 400 (500) | mm |
| Table Size | 1,100 x 700 | mm |
| Tank Size | 1,400 x 900 x 500 | mm |
| Max Workpiece Weight | 3,000 | kg |
| Max Electrode Weight | 100 | kg |
| ATC Capacity | 16, 32 | |
| Rapid Traverse Rate | 5 | m/min |
| Max Available Amperage | 60 ~ 240 | A |
