Summary

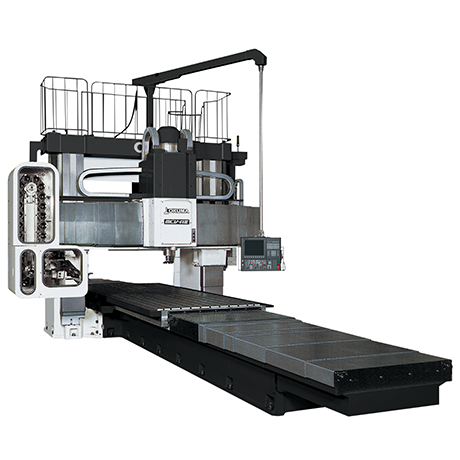

The Okuma MCV-AII is a double column vertical machining center designed for precision milling of medium to large-sized parts. Its core function is the removal of material through high-speed, rigid machining operations, supporting both heavy-duty roughing and fine finishing. Key technical characteristics include a gearless direct-drive spindle, bridge-style construction for enhanced rigidity, and a quill spindle for improved tool accessibility.

Key Capabilities

• Double column, bridge-style construction for high rigidity in large part machining
• Gearless direct-drive spindle to minimize vibration and noise
• Quill spindle design for enhanced reach and accessibility
• Standard spindle cooling system for consistent machining accuracy
• Configurable magazine capacity supporting varied tooling requirements

Key Specifications

| Parameter | Value | Unit |

| Width Between Columns | 1,650 [2,050] | mm |

| Table Travel (X-Axis) | 2,000 [3,000; 4,000; 5,000] | mm |

| Spindle Range | 4,000 [6,000] | min⁻¹ |

| Spindle Power | 22/18.5 [22/15] | kW |

| Rapid Traverse Rate X-Y/Z | 20 / 10 | m/min |

| Magazine Capacity | 24 [50, 72, 100] | |
