Summary

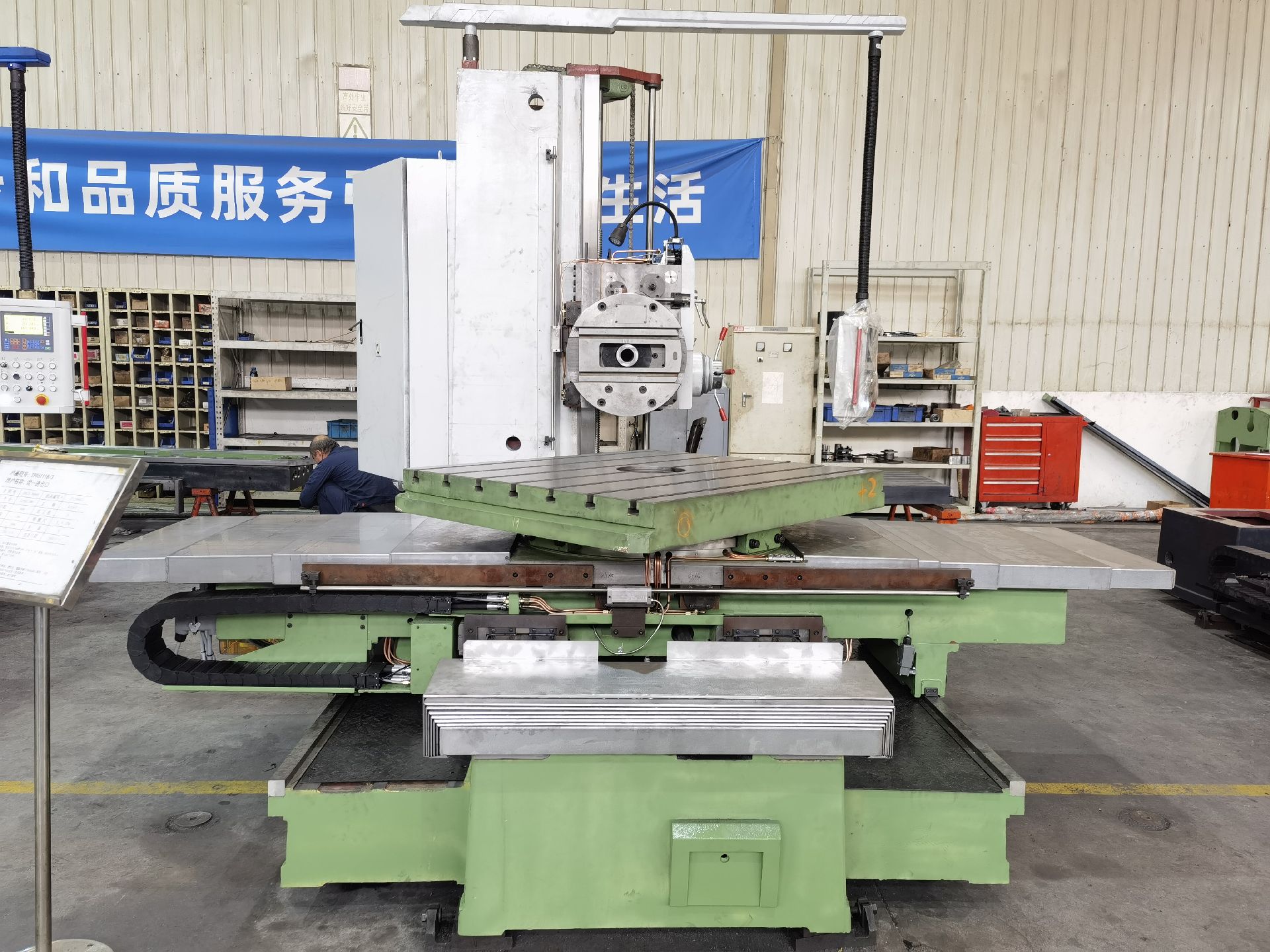

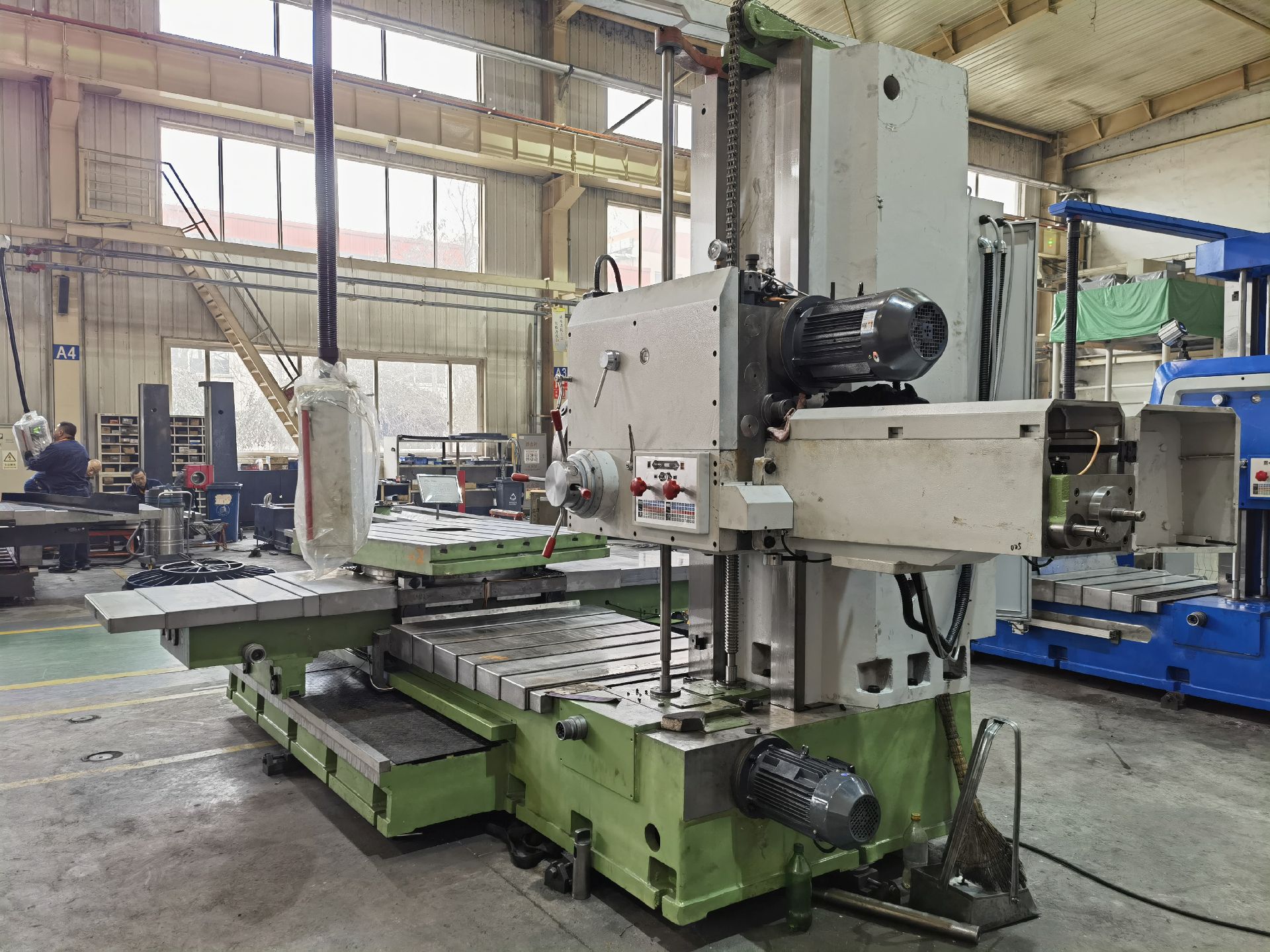

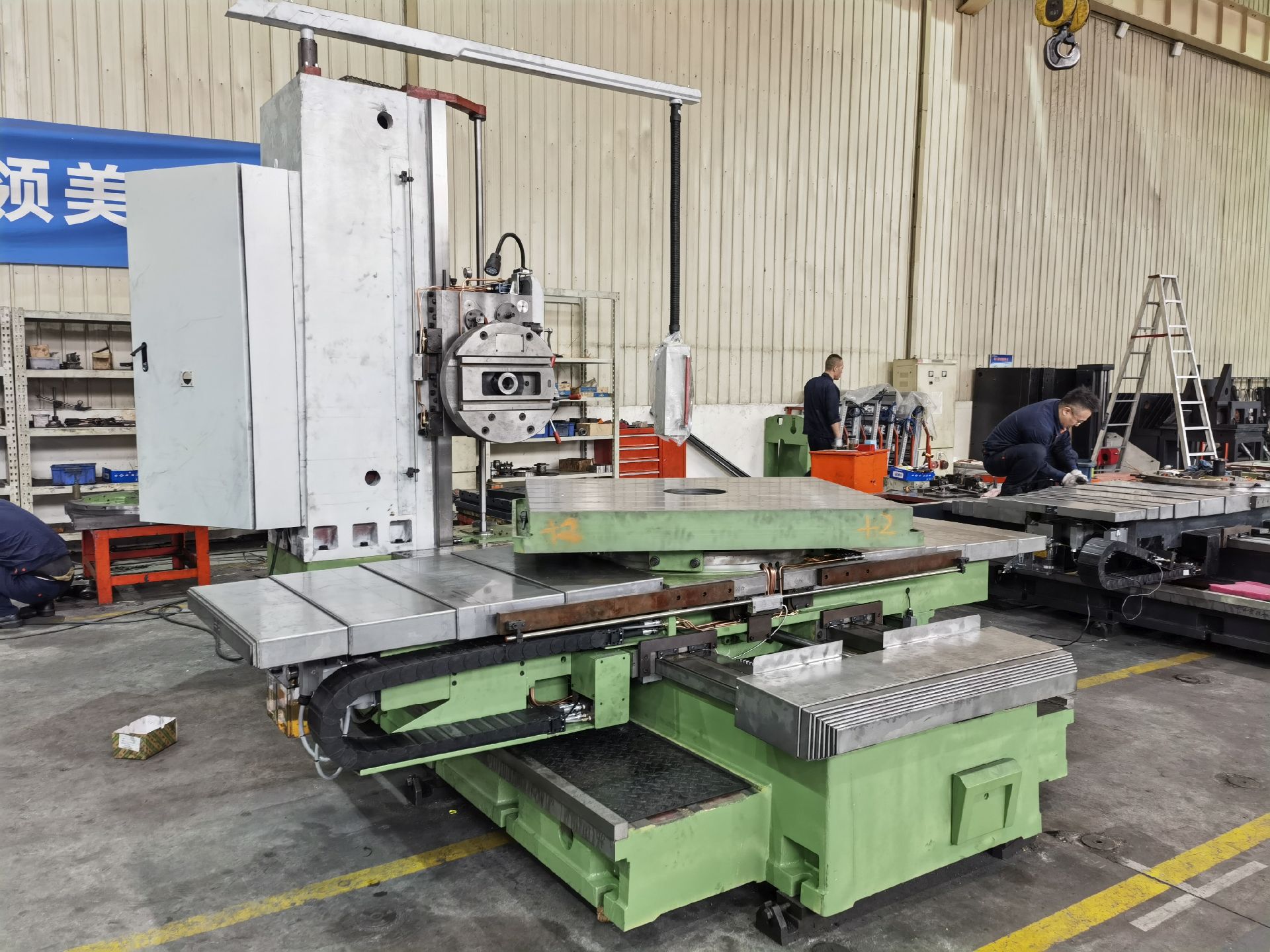

This machine performs precision horizontal boring and milling with automatic tool clamping and extensive programmable axis motions. It is designed to produce machined bores, faces, and milled surfaces on large, heavy workpieces requiring high accuracy. Notable features include a 110 mm spindle, 600 mm facing plate, AC servo-driven axes, and integrated digital display with memory.

Key Capabilities

• Horizontal spindle with automatic tool clamping/unclamping
• AC servo motor-driven axes (spindle, facing head, worktable movements)
• Multi-axis machining with programmable vertical, traverse, longitudinal, and rotary motions

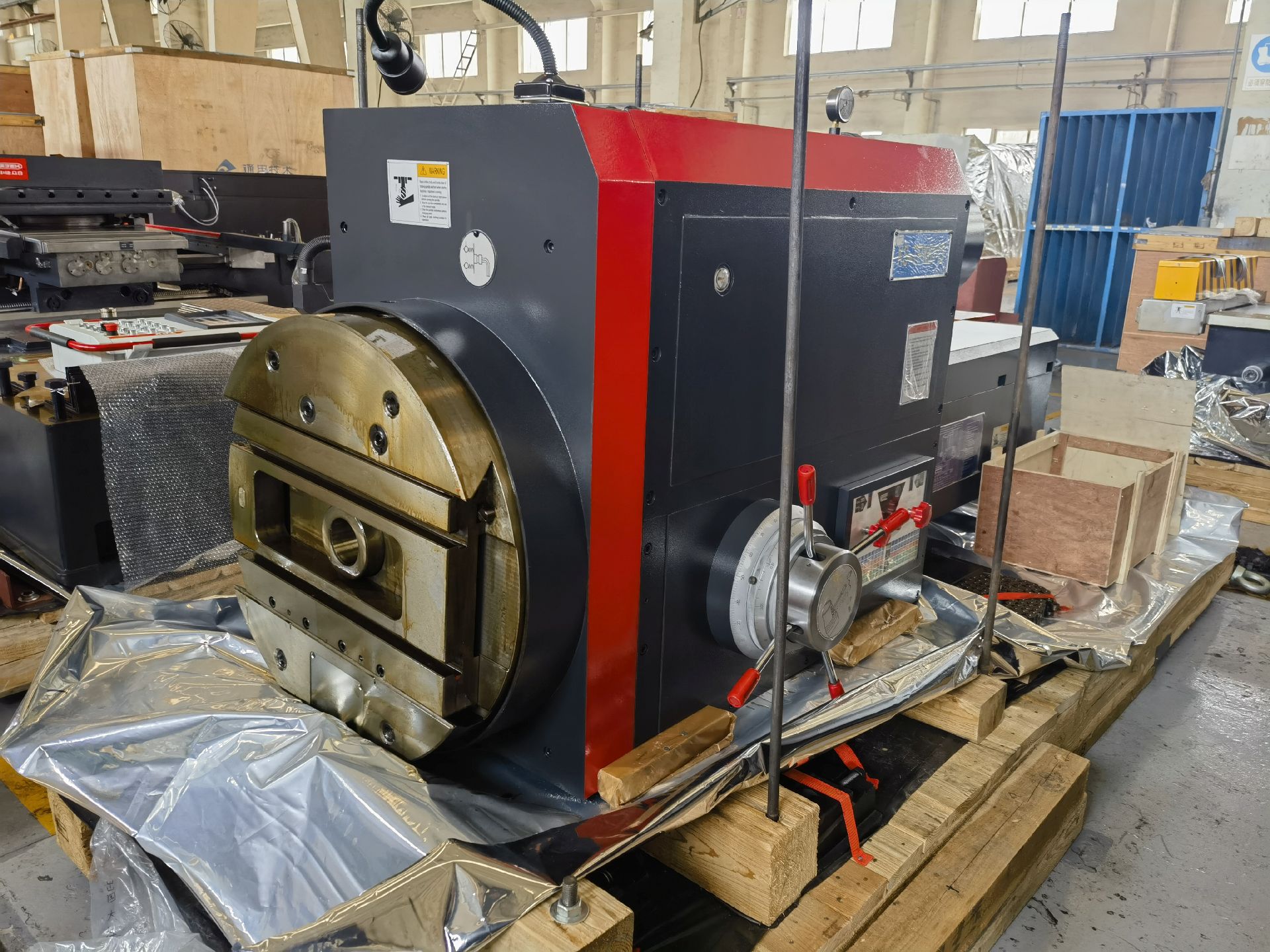

• Facing head slide for turning large diameters up to 600 mm
• Digital display system supporting coordinate and memory functions
• High worktable load capacity up to 5000 kg

Key Specifications
