Okuma LT2000 EX | Twin-Spindle Multi-Turret CNC Turning CenterAvailable
Save
Share
Okuma
Japan
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary

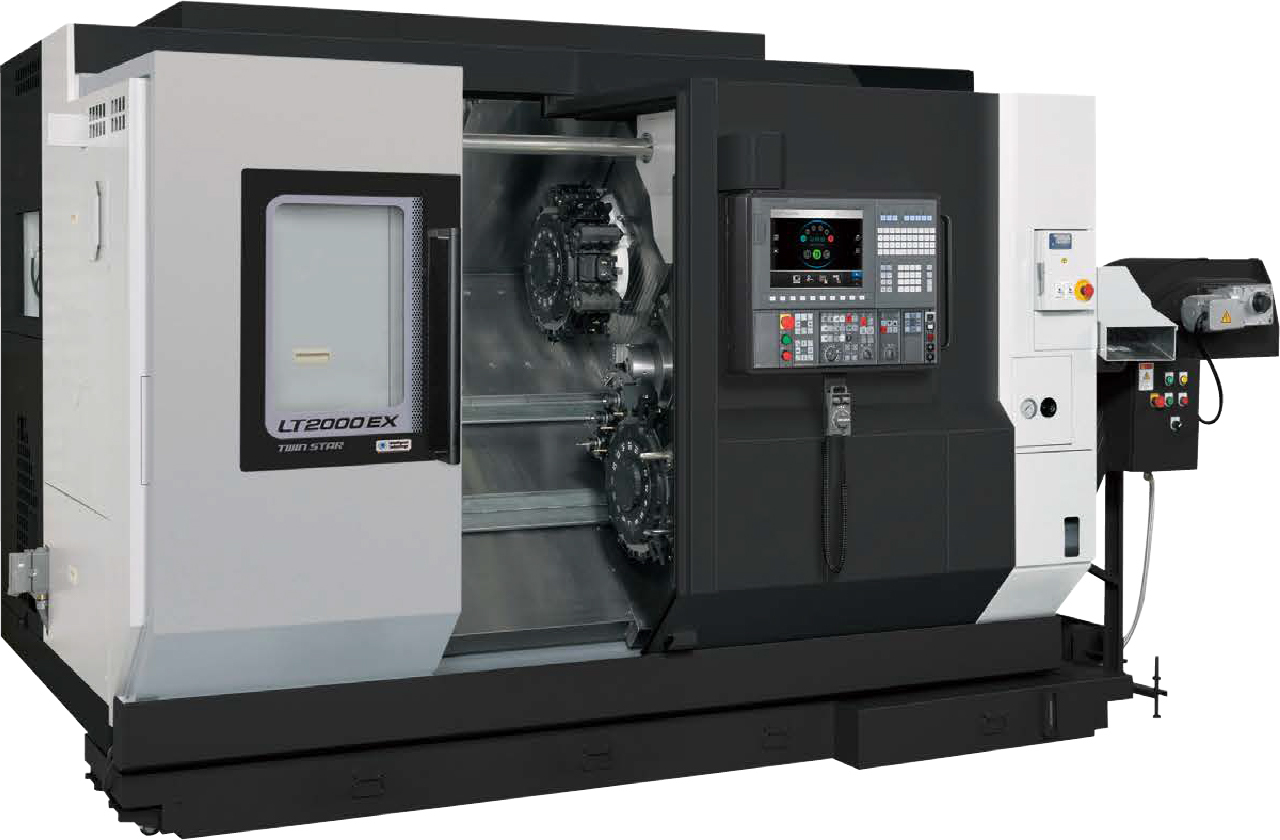

The Okuma LT2000 EX is a horizontal twin-spindle CNC turning center that integrates lathe and mill/drill functions across multiple turrets. Designed for process flexibility, it enables complex, multi-sided machining—including primary and secondary operations—on a single platform, reducing workholding changeovers. Notable technical features include 2- or 3-turret configurations with optional Y-axis, and the ability to assign any turret to either spindle for process balancing and increased throughput.
Key Capabilities
- Simultaneous machining using twin spindles with up to three turrets
- Integrated mill/drill and turning operations on all turrets
- Configurable turret count (2 or 3) and optional Y-axis for advanced contouring or off-center milling
- Up to 48 tool stations in 3-turret version for high tooling capacity
- Open-architecture PC-based OSP-P300 control system with grouped process navigation
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Max Turning Diameter | Ø8.27 | in |
| Max Turning Length | 5.12 | in |
| Spindle Speed Range | 50–6,000 (right spindle) | min⁻¹ |
| Spindle Speed Range | 50–5,000 (left spindle) | min⁻¹ |
| Number of Tool Stations | Up to 48 (3-turret) | |
| Rapid Traverse (X/Z/Y) | 1,181/1,575/591 | ipm |
| Standard Power (L&R) | 15.3/10 | hp |
