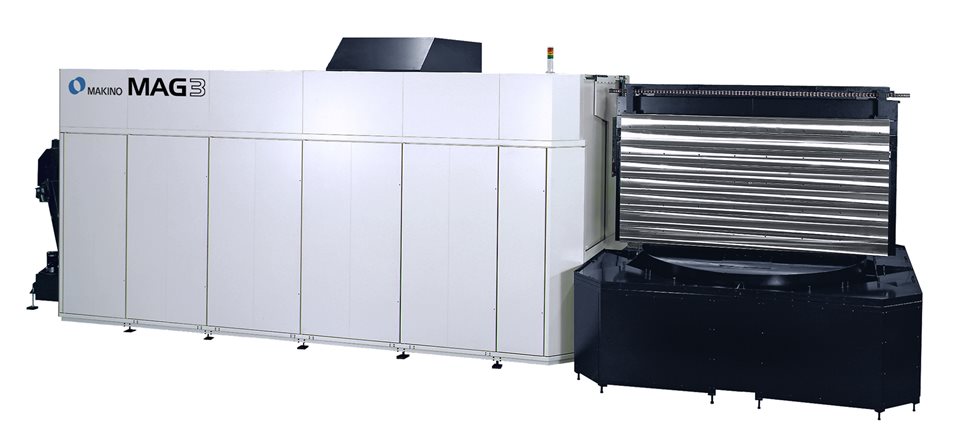

Makino MAG3.W | 5-Axis Horizontal Machining CenterAvailable
Save
Share
Makino
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Makino MAG3.W is a 5-axis horizontal machining center engineered for high-productivity precision contouring of complex aluminum monolithic components. It features a 33,000 rpm spindle with up to 120 kW power, enabling rapid metal-removal rates. The platform offers extended Y-axis travel, optimized five-face accessibility, and is suited for integration with automated pallet and storage systems for unattended operation in aerospace manufacturing.
Key Capabilities
- 5-axis simultaneous machining with full contouring capability
- High-speed spindle operation up to 33,000 rpm and 120 kW for aggressive aluminum machining
- Extended Y-axis travel and large work envelope for oversized components
- Compact spindle and short pivot for enhanced access to all faces with minimal setups
- Automatic pallet transfer and storage integration for extended unattended operation
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Pallet Size | 3,500 x 1,500 | mm |
| Travel (X / Y / Z) | 4,000 / 1,800 / 1,000 | mm |
| A-Axis Rotation | ±110 | deg |
| C-Axis Rotation | 360 | deg |
| Spindle Speed | 33,000 | rpm |
| Spindle Power | 80 (120) | kW |
| Max Workpiece Size | 4,000 x 1,800 x 500 | mm |
| Max Payload | 3,000 | kg |
| ATC Capacity | 60 (120) | tools |
| Rapid Traverse / Feedrate | 25,400 | mm/min |
| Max Tool Diameter | 90 | mm |
| Max Tool Weight | 8 | kg |
