Okuma MILLAC 800VH | 5-axis Vertical Machining CenterAvailable
Save
Share
Okuma
Japan
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary

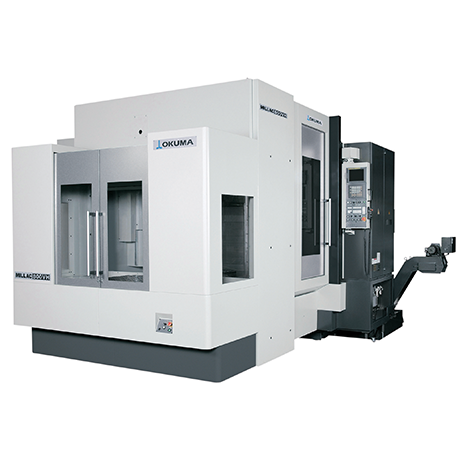

The Okuma MILLAC 800VH is a 5-axis vertical machining center designed for multi-face, high-precision machining of complex workpieces in a single setup. It features a box-type bed, wide rectangular sliding surfaces, and pre-tensioned large ball screws for enhanced rigidity and sustained accuracy. The built-in rotary-type 2APC supports productivity by reducing setup time for high-mix or complex parts.
Key Capabilities
- 5-axis simultaneous machining for multi-face part processing in one setup
- Rigid construction with box-type bed and wide slideways
- Pre-tensioned, large-diameter ball screws for accuracy stability
- Standard rotary-type 2APC for reduced setup times and increased throughput
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Table Dimensions | 800 x 800 | mm |
| X/Y/Z Travel | 1,020 | mm |
| Max Load | 1,000 | kg |
| Spindle Speed | 100–10,000 | min⁻¹ |
| Spindle Power | 22/18.5 | kW |
| Rapid Traverse (X/Y/Z) | 30 | m/min |
| Rapid Traverse (A/C axes) | 3,600 | deg/min |
