Summary

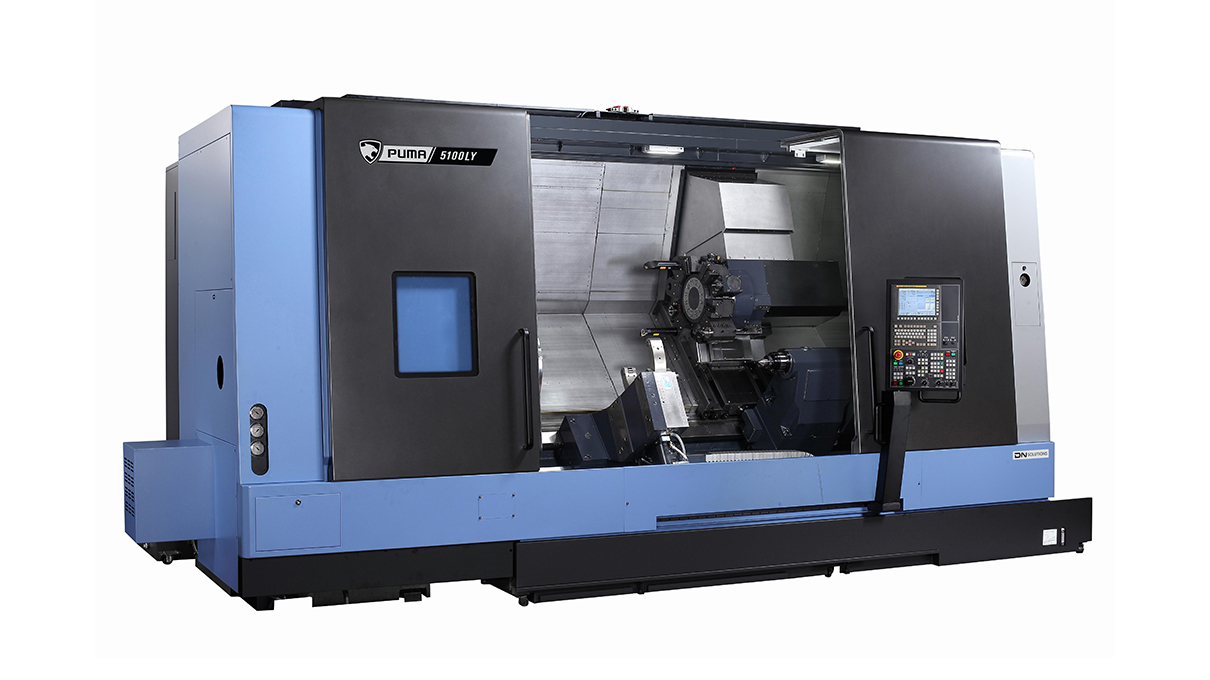

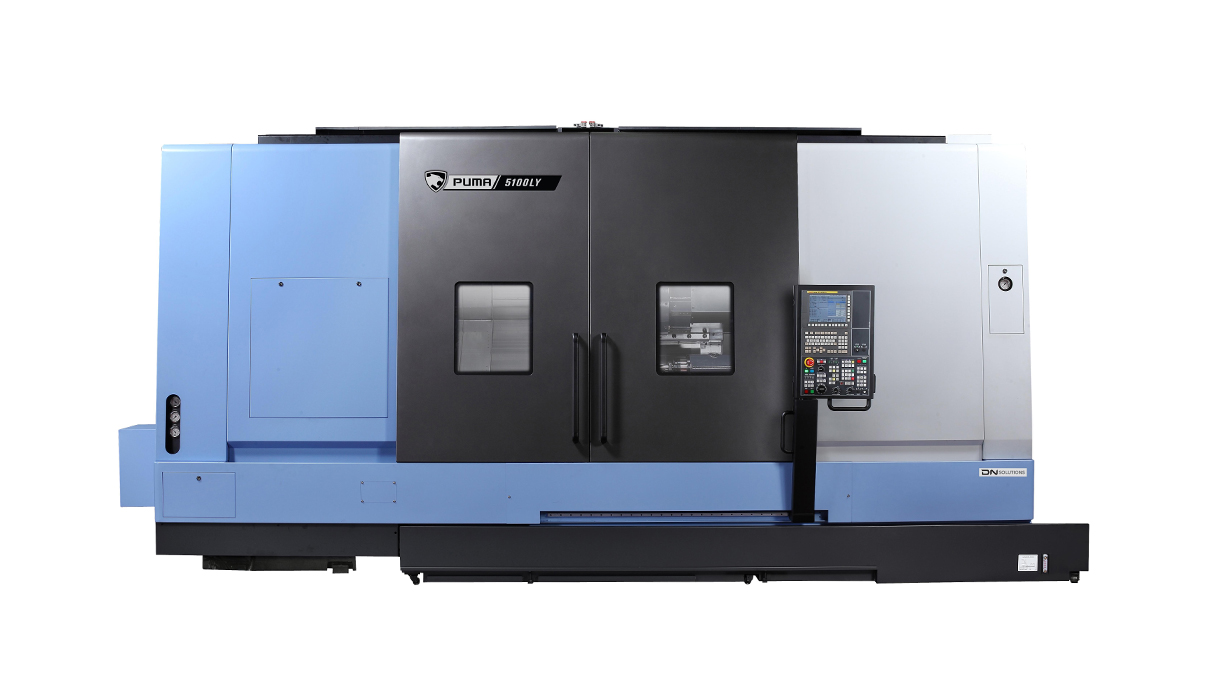

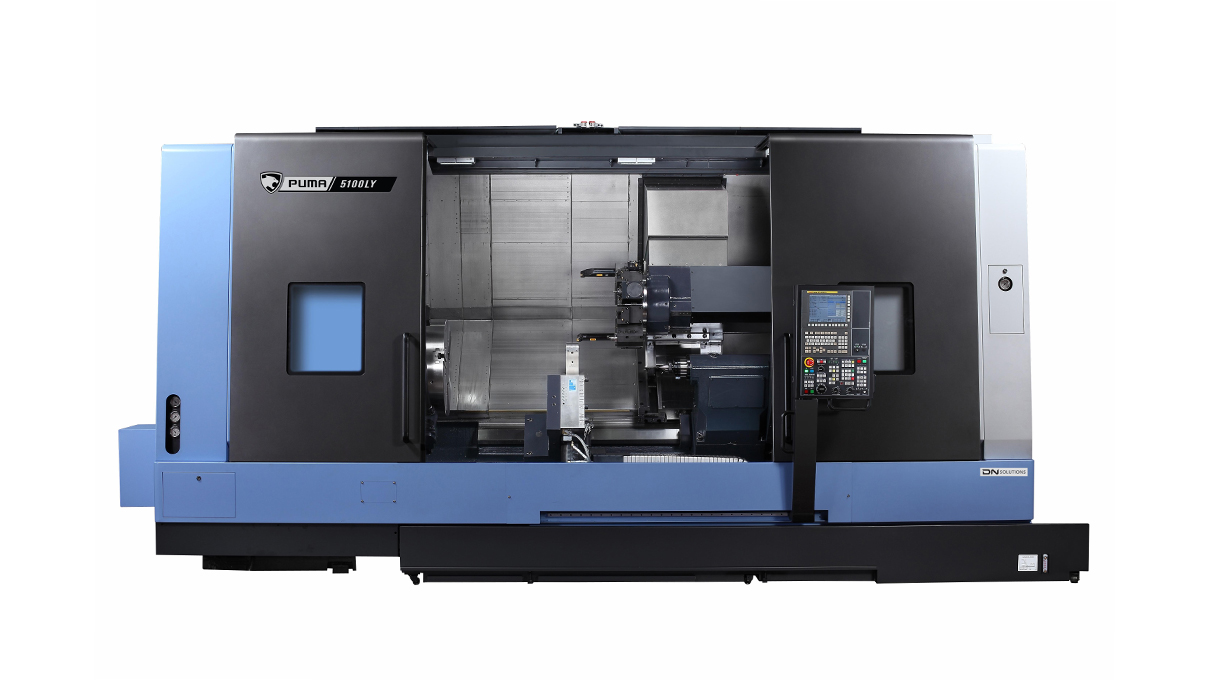

The Dn Solutions PUMA 5100XLYB is a CNC horizontal turning center engineered for heavy-duty cutting, specifically suited for the machining of large and complex parts such as those found in the oil and gas sector. Its configuration includes an integrated Y-axis (150 mm travel), providing the capability for single-setup machining of large diameter, long components and pipes. The substantial through-hole spindle (375 mm) and robust spindle power (45 kW) distinguish this machine for high-torque operations on oversized workpieces.

Key Capabilities

• Single-setup machining of complex, long shaft or pipe workpieces
• Y-axis capability (150 mm travel) for milling and off-center operations
• Accommodates heavy, large-diameter parts with a max turning length up to 3040 mm and max diameter up to 550 mm
• Large spindle through-hole (375 mm) supports turning of large diameter pipes
• 12-position tool turret with live rotary tooling (up to 4000 RPM)
• Suitable for heavy-duty threading and precision-enhancing machining
