Citizen Machinery Miyano BNE-51SY6 | Twin-Spindle, Twin-Turret CNC Turning CenterAvailable
Save
Share
Citizen Machinery
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary

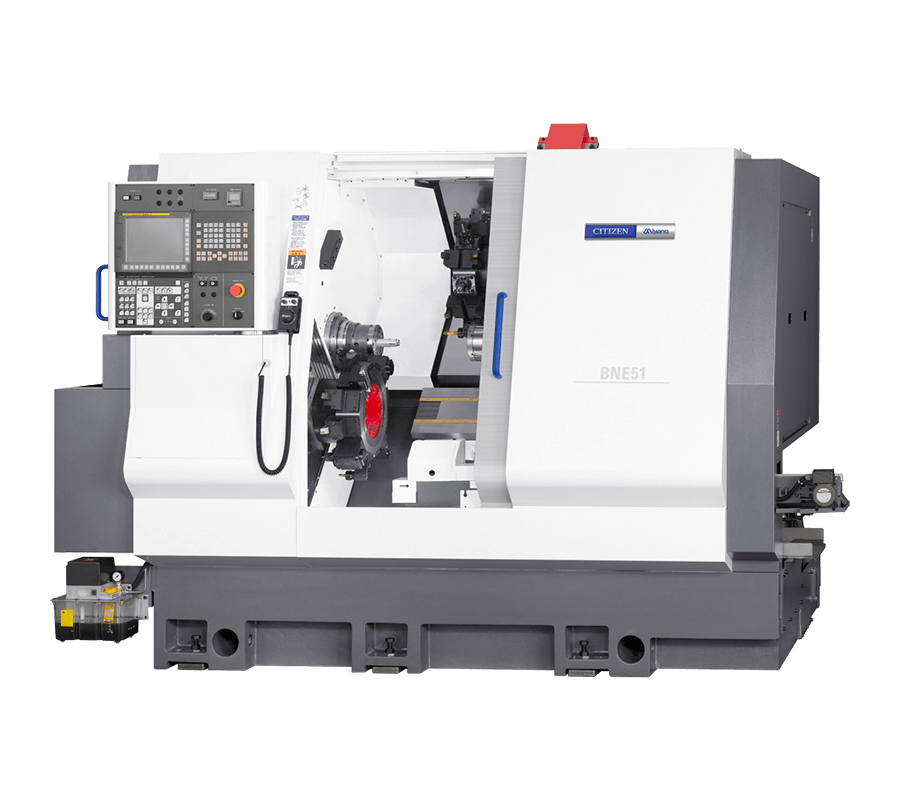

The Citizen Machinery Miyano BNE-51SY6 is a CNC turning center designed for complete bar machining utilizing two spindles and two 12-station turrets. This configuration supports process integration and reduction of machining time via simultaneous machining operations, including balance and differential velocity cutting. Capable of handling bar work up to 51 mm in diameter with high flexibility for complex parts.
Key Capabilities

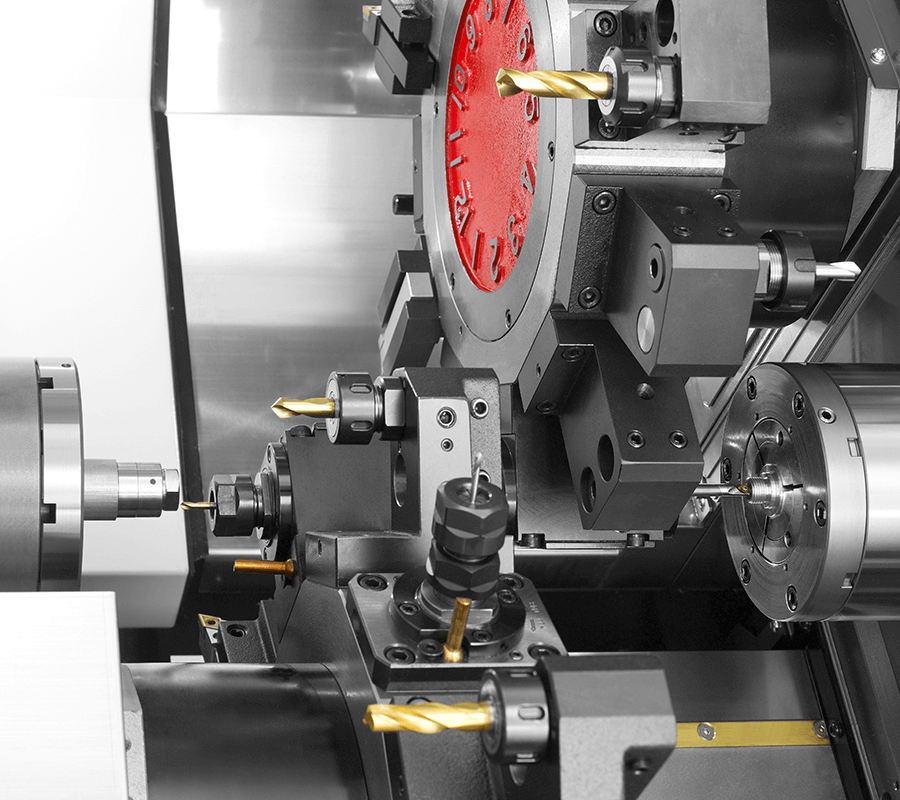

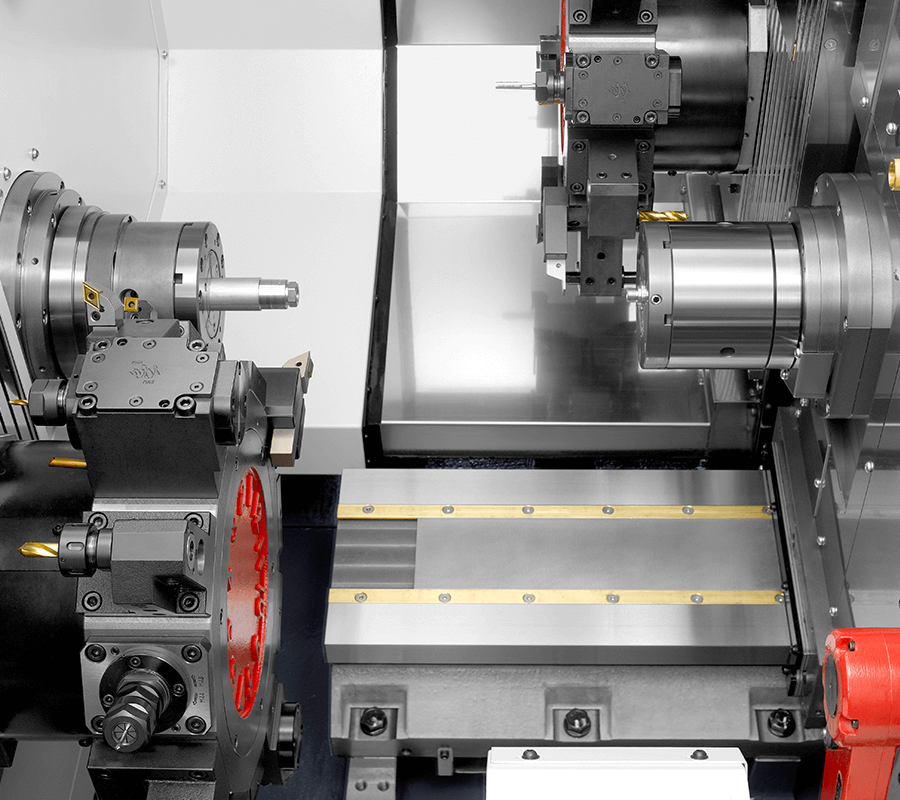

- Simultaneous machining with dual spindles and dual turrets
- Balance and redundant cutting through upper and lower turrets
- Differential velocity cutting enabled by rotary tools
- Capable of complete machining of bar stock parts
- Support for up to 24 revolving tools (12 per turret)
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Maximum Machining Diameter of Bar Work (SP1) | 51 | mm |
| Maximum Machining Diameter of Bar Work (SP2) | 42 | mm |
| Standard Turning Length (SP1) | 90 | mm |
| Main Spindle Speed Range (SP1/SP2) | 5,000 | min-1 |
| Power Chuck (SP1/SP2) | 6"/5" | hydraulic |
| Number of Revolving Tools (each turret) | 12 | |
| Floor Space | 2,690×2,160 | mm |
| Machine Weight | 7,800 | kg |
