Summary

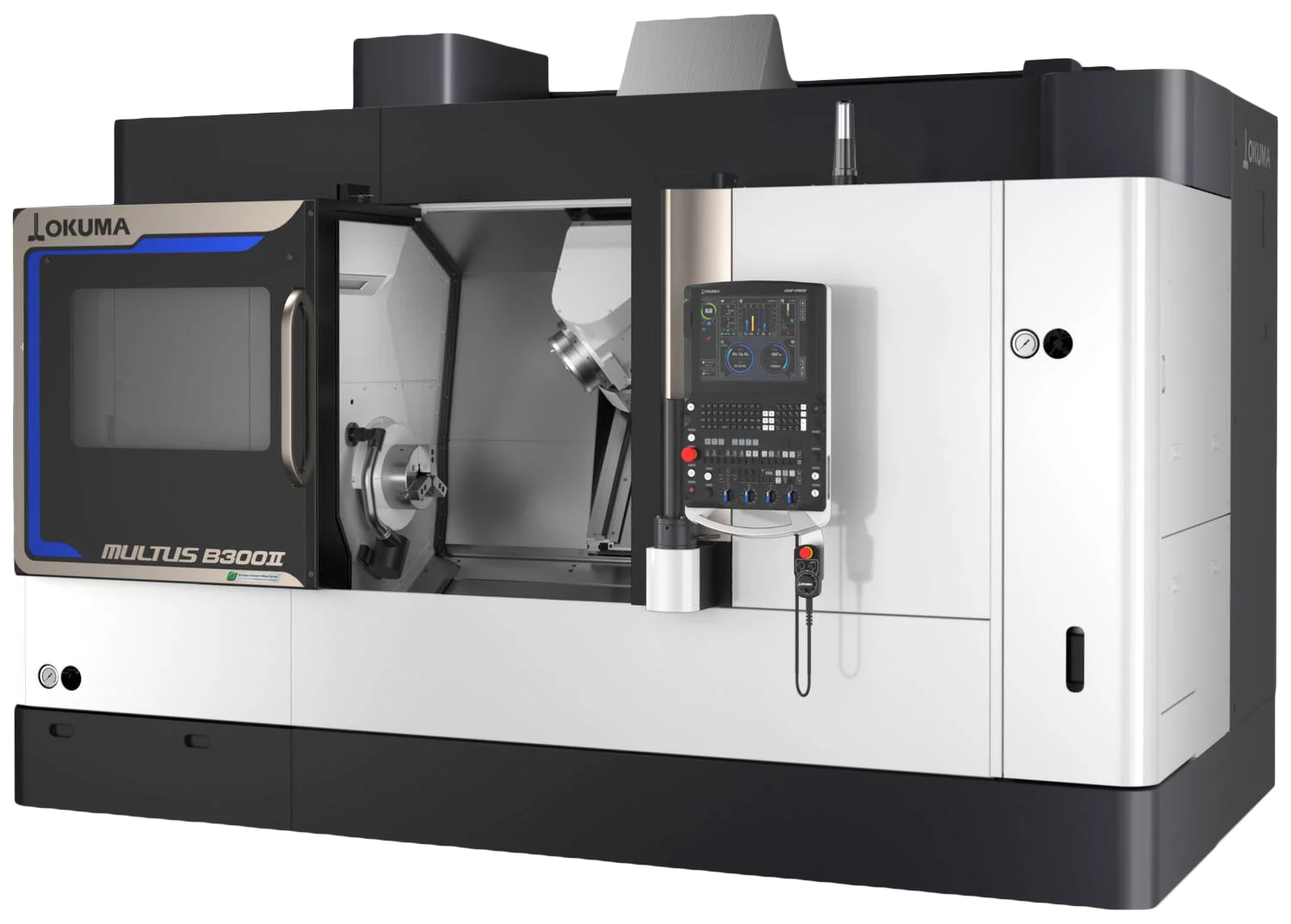

The Okuma MULTUS B300II is a CNC multi-tasking turn-mill center designed for process-intensive machining combining turning, milling, and material handling on a single platform. Its B-axis head, compound-motion Y-axis, and full-contouring C-axis enable complex part manufacturing with reduced setups. Key differentiators include a 225° B-axis range, CAPTO-C6 tooling, dual-function spindle head, and options for automation and multi-tool storage.

Key Capabilities

• Integrated turning and milling with B-axis and Y-axis compound motion
• Single-setup machining of complex geometries
• Main spindle with full-contouring C-axis
• Dual-function spindle head with CAPTO-C6 tooling compatibility
• Automatic tool changer (ATC) standard with options for increased capacity
• Optional sub-spindle (W version) for part handoff between spindles
• Compatible with bar feeders and a variety of bar stock sizes

Key Specifications

| Parameter | Value | Unit |

| Max Turning Diameter | 630 | mm |

| Max Turning Diameter | 24.80 | in |

| Spindle Nose Type | JIS A2-6 [JIS A2-8] | |

| Spindle Speed Range | 45–5,000 [38–3,800] | min⁻¹ |

| Main Spindle Power (20 min/cont) | 15/11 | kW |

| Main Spindle Power (20 min/cont) | 20/15 | hp |

| Rapid Traverse (X,Z/Y) | 40/26 | m/min |

| Rapid Traverse (X,Z/Y) | 1,575/1,024 | ipm |
