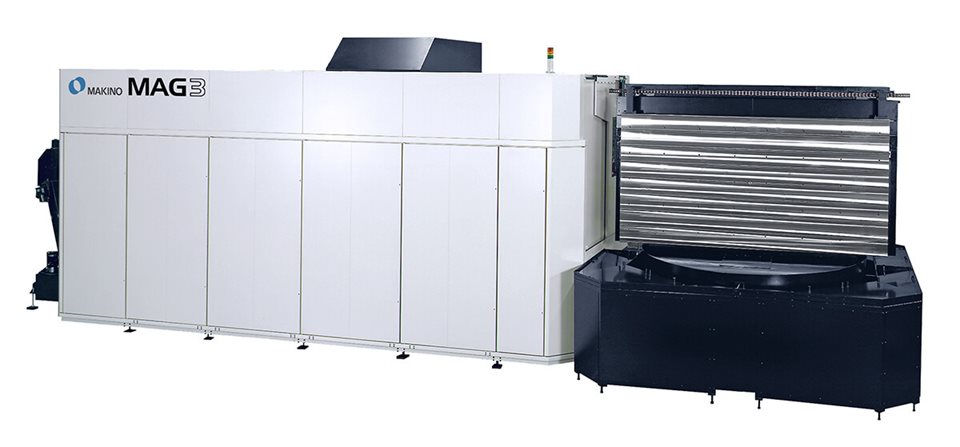

Makino MAG3 | 5-Axis Horizontal Machining CenterAvailable
Save
Share
Makino
To be updated
Condition: New
Scale: Production
Status: Ready-to-Ship
Ships From: USA
Product Description
Summary
The Makino MAG3 is a 5-axis horizontal machining center engineered for high-productivity machining of complex aluminum monolithic aerospace parts. Its core function is to execute multi-axis milling operations with rapid and precise tool and pallet movements to maximize aluminum material removal rates. Notable features include an industry-leading 33,000 rpm spindle with 130 kW power, extensive axis travels, and support for automatic pallet transfer and storage for unattended production.
Key Capabilities
- 5-axis simultaneous machining for complex part geometries
- High-speed 33,000 rpm spindle with 130 kW power for elevated metal removal
- Large working envelope and pallet capacity for bulky workpieces
- Automated pallet transfer and storage system integration for extended unattended operation
- Rapid traverse and high cutting feed rates for increased throughput
- Precision contouring with compact spindle and short pivot point for improved accessibility
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| X Travel | 3,000 | mm |
| Y Travel | 1,500 | mm |
| Z Travel | 1,000 | mm |
| A-Axis Rotation | ±110 | ° |
| C-Axis Rotation | 360 | ° |
| Spindle Speed | 33,000 | rpm |
| Spindle Power | 130 | kW |
| Maximum Workpiece Size | 3,000 x 1,500 x 750 | mm |
| Maximum Payload | 3,000 | kg |
| ATC Capacity | 120 (180) | tools |
| Rapid Traverse (X/Y/Z) | 62,700 / 58,000 / 58,000 | mm/min |
| Cutting Feedrate | 50,000 | mm/min |
