Summary

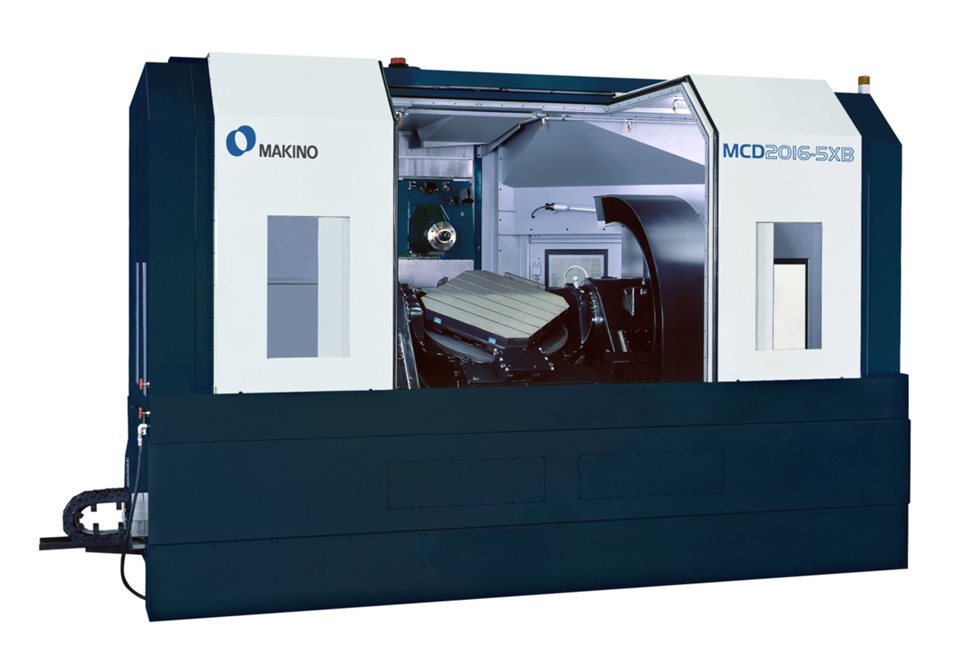

The Makino MCD2016 5XB is a horizontal 5-axis CNC machining center designed for high-accuracy and high-speed multi-face machining of large workpieces. It supports simultaneous 5-axis control and indexing via precision A- and B-axes, enabling complex part geometries and uninterrupted machining cycles. Key technical features include 0.1µm scale feedback, advanced thermal stabilization measures, and a standard 6,000 rpm spindle with capacity for heavy-duty operations on parts up to 2.3 meters in diameter and 2 tons in weight.

Key Capabilities

• Simultaneous 5-axis machining for complex, multi-face operations
• Multi-face indexing with 0.0001-degree accuracy on A- and B-axes
• Accommodates large workpieces up to 2.3 meters diameter and 2,000 kg
• 0.1µm scale feedback and thermal stabilization systems for high-accuracy machining
• Configurable automatic tool changer with up to 120 tools (optional)
• High-speed rapid traverse and cutting feedrate up to 16,000 mm/min

Key Specifications
